03.10.1 - gearbox housings

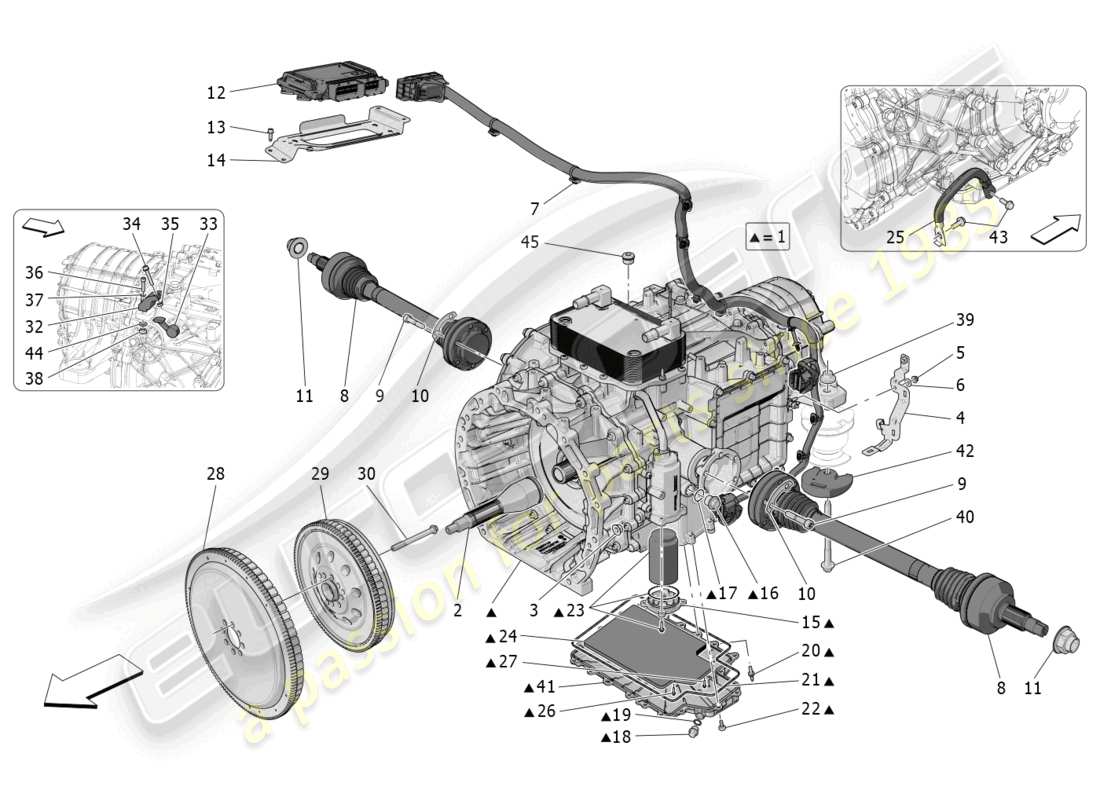

Maserati MC20 (2022) GEARBOX HOUSINGS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
-
AUTOMATIC GEARBOX ASSEMBLY #OPEN PHD TICKET PRIOR TO ORDERING CODE#
Valid from assembly: 7000456 - 7000604. Suitable for cars with: REAR ELECTRONIC DIFFERENTIAL. Not for cars with: MECHANICAL LIMITED-SLIP DIFFERENTIAL.
#
001
MPN:
670154772
AUTOMATIC GEARBOX ASSEMBLY
Valid from assembly: 0 - 7000455. Suitable for cars with: REAR ELECTRONIC DIFFERENTIAL. Not for cars with: MECHANICAL LIMITED-SLIP DIFFERENTIAL.
Supersession
Supersession
#
001
MPN:
670175118
AUTOMATIC GEARBOX ASSEMBLY
Valid from assembly: 0 - 7001513. Suitable for cars with: MECHANICAL LIMITED-SLIP DIFFERENTIAL. Not for cars with: REAR ELECTRONIC DIFFERENTIAL.
from
£15,969.14
from
£15,969.14
#
001
MPN:
670222423
AUTOMATIC GEARBOX ASSEMBLY
Valid from assembly: 7000605 - 7001513. Suitable for cars with: REAR ELECTRONIC DIFFERENTIAL. Not for cars with: MECHANICAL LIMITED-SLIP DIFFERENTIAL.
Supersession
Supersession
This part replaces part number 670154772
#
002
MPN:
670181842
SHAFT
from
£763.63
from
£763.63
#
003
MPN:
675001210
NUT
from
£1.11
from
£1.11
#
004
MPN:
670160120
BRACKET
from
£20.44
from
£20.44
#
005
MPN:
670175151
NUT
from
£1.18
from
£1.18
#
006
MPN:
670175146
WASHER
from
£1.78
from
£1.78
This part replaces part number 670302664
#
007
MPN:
670212968
AUTOMATIC GEARBOX WIRING HARNESS
from
£155.68
from
£155.68
#
008
MPN:
670219393
Rear axle shaft
Supersession
Supersession
This part replaces part number 670156098
#
009
MPN:
670160302
SCREW
Supersession
Supersession
#
010
MPN:
670002408
PLATE
from
£1.34
from
£1.34
#
011
MPN:
675000138
NUT
from
£6.06
from
£6.06
#
012
MPN:
670214553
CONTROL UNIT GEARBOX
from
£2,534.51
from
£2,534.51
This part replaces part number 670179758
#
013
MPN:
675001384
SCREW
from
£1.22
from
£1.22
#
014
MPN:
670161898
CONTROL UNIT BRACKET
from
£29.94
from
£29.94
#
015
MPN:
673011251
COVER FILTER
from
£155.74
from
£155.74
#
016
MPN:
673011243
OIL LEVEL PLUG
from
£22.54
from
£22.54
#
017
MPN:
673011244
O.R. GASKET
from
£7.83
from
£7.83
#
018
MPN:
673011245
PLUG
from
£19.68
from
£19.68
#
019
MPN:
673011246
O.R. GASKET
from
£6.06
from
£6.06
#
020
MPN:
673011571
PIN
from
£21.23
from
£21.23
#
021
MPN:
673011569
GASKET
Suitable for cars with: MECHANICAL LIMITED-SLIP DIFFERENTIAL. Not for cars with: REAR ELECTRONIC DIFFERENTIAL.
from
£84.10
from
£84.10
#
021
MPN:
673011569
GASKET
Suitable for cars with: REAR ELECTRONIC DIFFERENTIAL. Not for cars with: MECHANICAL LIMITED-SLIP DIFFERENTIAL.
from
£84.10
from
£84.10
#
021
MPN:
673014161
GASKET #IF STOCK = 0, ORDER THE GASKET 673011569 AND FOR THE FIRST REPLACEMENT ALSO ORDER THE OIL PAN 673013152#
Suitable for cars with: MECHANICAL LIMITED-SLIP DIFFERENTIAL. Not for cars with: REAR ELECTRONIC DIFFERENTIAL.
#
021
MPN:
673014161
GASKET #IF STOCK = 0, ORDER THE GASKET 673011569 AND FOR THE FIRST REPLACEMENT ALSO ORDER THE OIL PAN 673013152#
Suitable for cars with: REAR ELECTRONIC DIFFERENTIAL. Not for cars with: MECHANICAL LIMITED-SLIP DIFFERENTIAL.
#
022
MPN:
673011570
SCREW
from
£8.89
from
£8.89
#

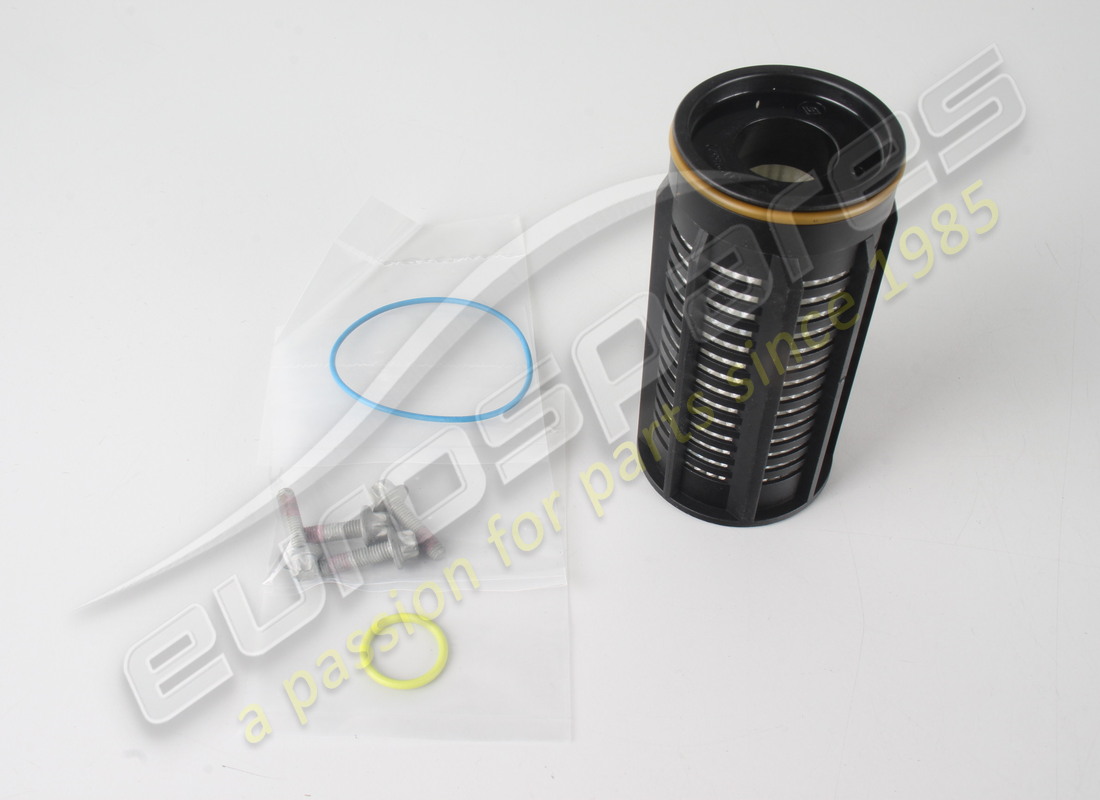

023
MPN:
673011242
FILTER KIT
from
£125.37
from
£125.37
#
024
MPN:
673011566
FILTER
from
£128.80
from
£128.80
#
025
MPN:
670181161
GROUND CABLE
from
£25.83
from
£25.83
#
026
MPN:
673011567
SCREW
from
£8.58
from
£8.58
#
027
MPN:
673011568
SCREW
from
£4.71
from
£4.71
#
028
MPN:
670182513
ADAPTER
from
£947.31
from
£947.31
#
029
MPN:
670182512
engine flywheel
from
£1,494.88
from
£1,494.88
#
030
MPN:
670182510
SCREW
from
£34.81
from
£34.81
#
032
MPN:
670181908
BRACKET
from
£30.84
from
£30.84
#
033
MPN:
670181910
LEVER
from
£42.55
from
£42.55
#
034
MPN:
670182068
SCREW
from
£1.69
from
£1.69
#
035
MPN:
675001208
NUT
from
£1.11
from
£1.11
#
036
MPN:
675001206
SCREW
from
£0.68
from
£0.68
#
037
MPN:
675001428
WASHER
from
£0.68
from
£0.68
#
038
MPN:
670181913
NUT
from
£11.19
from
£11.19
#
039
MPN:
675000127
NUT [M12]
from
£1.30
from
£1.30
#
040
MPN:
675001431
SCREW
from
£9.53
from
£9.53
#
041
MPN:
673013152
GEARBOX OIL SUMP #FOR CARS WITH TRANSMISSION SERIAL<1349079 WITH THE FIRST REPLACEMENT OF THE OIL PAN PN 673013152 ALSO ORDER THE GASKET PN 673011569#
Suitable for cars with: REAR ELECTRONIC DIFFERENTIAL. Not for cars with: MECHANICAL LIMITED-SLIP DIFFERENTIAL.
from
£391.13
from
£391.13
#
041
MPN:
673013152
GEARBOX OIL SUMP #FOR CARS WITH TRANSMISSION SERIAL<1350072 WITH THE FIRST REPLACEMENT OF THE OIL PAN PN 673013152 ALSO ORDER THE GASKET PN 673011569#
Suitable for cars with: MECHANICAL LIMITED-SLIP DIFFERENTIAL. Not for cars with: REAR ELECTRONIC DIFFERENTIAL.
from
£391.13
from
£391.13
#
042
MPN:
670213358
MASS DAMPER
from
£181.05
from
£181.05
#
043
MPN:
675001211
SCREW
from
£5.38
from
£5.38
#
044
MPN:
670181914
WASHER
from
£18.08
from
£18.08
#
045
MPN:
673014040
TRANSMISSION OIL DELIVERY CAP WITH O-RING
from
£9.76
from
£9.76
-part-diagram-03.50.1.webp "MASERATI MC20 (2022) LUBRICATION AND GEARBOX OIL COOLING PARTS DIAGRAM")
-part-diagram-04.00.1.webp "MASERATI MC20 (2022) BRAKE SERVO SYSTEM PARTS DIAGRAM")
-part-diagram-04.10.1.webp "MASERATI MC20 (2022) BRAKING DEVICES ON FRONT WHEELS PARTS DIAGRAM")
-part-diagram-04.10.2.webp "MASERATI MC20 (2022) BRAKING DEVICES ON FRONT WHEELS PARTS DIAGRAM")
-part-diagram-04.11.1.webp "MASERATI MC20 (2022) BRAKING DEVICES ON REAR WHEELS PARTS DIAGRAM")
-part-diagram-04.11.2.webp "MASERATI MC20 (2022) BRAKING DEVICES ON REAR WHEELS PARTS DIAGRAM")
-part-diagram-04.20.1.webp "MASERATI MC20 (2022) LINES PARTS DIAGRAM")
-part-diagram-04.30.1.webp "MASERATI MC20 (2022) PARKING BRAKE PARTS DIAGRAM")
-part-diagram-04.90.1.webp "MASERATI MC20 (2022) BRAKING CONTROL SYSTEMS PARTS DIAGRAM")
-part-diagram-05.00.1.webp "MASERATI MC20 (2022) STEERING COLUMN AND STEERING WHEEL UNIT PARTS DIAGRAM")
-part-diagram-05.10.1.webp "MASERATI MC20 (2022) COMPLETE STEERING RACK UNIT PARTS DIAGRAM")
-part-diagram-05.20.1.webp "MASERATI MC20 (2022) COMPLETE PEDAL BOARD UNIT PARTS DIAGRAM")
-part-diagram-06.00.1.webp "MASERATI MC20 (2022) WHEELS AND TYRES PARTS DIAGRAM")
-part-diagram-06.10.1.webp "MASERATI MC20 (2022) FRONT SUSPENSION PARTS DIAGRAM")
-part-diagram-06.11.1.webp "MASERATI MC20 (2022) FRONT SHOCK ABSORBER DEVICES PARTS DIAGRAM")
-part-diagram-06.11.2.webp "MASERATI MC20 (2022) FRONT SHOCK ABSORBER DEVICES PARTS DIAGRAM")
-part-diagram-06.20.1.webp "MASERATI MC20 (2022) REAR SUSPENSION PARTS DIAGRAM")
-part-diagram-06.21.1.webp "MASERATI MC20 (2022) REAR SHOCK ABSORBER DEVICES PARTS DIAGRAM")
-part-diagram-06.25.1.webp "MASERATI MC20 (2022) HYDRAULIC SYSTEM FRONT AXLE LIFT PARTS DIAGRAM")
-part-diagram-06.90.1.webp "MASERATI MC20 (2022) ELECTRONIC CONTROL (SUSPENSION) PARTS DIAGRAM")
-part-diagram-06.95.0.webp "MASERATI MC20 (2022) CPL. WHEELS PARTS DIAGRAM")
-part-diagram-07.05.1.webp "MASERATI MC20 (2022) CRASH SENSORS PARTS DIAGRAM")
-part-diagram-07.06.1.webp "MASERATI MC20 (2022) AIRBAG SYSTEM PARTS DIAGRAM")
-part-diagram-07.09.1.webp "MASERATI MC20 (2022) SEAT BELTS PARTS DIAGRAM")
-part-diagram-07.30.1.webp "MASERATI MC20 (2022) STANDARD PROVIDED PARTS DIAGRAM")
-part-diagram-07.32.1.webp "MASERATI MC20 (2022) ON BOARD DOCUMENTATION PARTS DIAGRAM")
-part-diagram-08.00.1.webp "MASERATI MC20 (2022) EXTERNAL VEHICLE DEVICES PARTS DIAGRAM")
-part-diagram-08.10.1.webp "MASERATI MC20 (2022) INTERNAL VEHICLE DEVICES PARTS DIAGRAM")
-part-diagram-08.20.1.webp "MASERATI MC20 (2022) ENERGY GENERATION AND ACCUMULATION PARTS DIAGRAM")
-part-diagram-08.20.2.webp "MASERATI MC20 (2022) ENERGY GENERATION AND ACCUMULATION PARTS DIAGRAM")
-part-diagram-08.30.1.webp "MASERATI MC20 (2022) HEADLIGHT CLUSTERS PARTS DIAGRAM")
-part-diagram-08.31.1.webp "MASERATI MC20 (2022) TAILLIGHT CLUSTERS PARTS DIAGRAM")
-part-diagram-08.32.1.webp "MASERATI MC20 (2022) SIDE LIGHT CLUSTERS PARTS DIAGRAM")
-part-diagram-08.39.1.webp "MASERATI MC20 (2022) LIGHTING SYSTEM CONTROL PARTS DIAGRAM")
-part-diagram-08.40.1.webp "MASERATI MC20 (2022) A/C UNIT: ENGINE COMPARTMENT DEVICES PARTS DIAGRAM")
-part-diagram-08.40.2.webp "MASERATI MC20 (2022) A/C UNIT: ENGINE COMPARTMENT DEVICES PARTS DIAGRAM")
-part-diagram-08.41.1.webp "MASERATI MC20 (2022) A/C UNIT: DASHBOARD DEVICES PARTS DIAGRAM")
-part-diagram-08.42.1.webp "MASERATI MC20 (2022) A/C UNIT: DIFFUSION PARTS DIAGRAM")
-part-diagram-08.42.2.webp "MASERATI MC20 (2022) A/C UNIT: DIFFUSION PARTS DIAGRAM")
-part-diagram-08.49.1.webp "MASERATI MC20 (2022) A/C UNIT: ELECTRONIC CONTROL PARTS DIAGRAM")
-part-diagram-08.50.1.webp "MASERATI MC20 (2022) DASHBOARD DEVICES PARTS DIAGRAM")
-part-diagram-08.51.1.webp "MASERATI MC20 (2022) CENTRE CONSOLE DEVICES PARTS DIAGRAM")
-part-diagram-08.53.1.webp "MASERATI MC20 (2022) ALARM AND IMMOBILIZER SYSTEM PARTS DIAGRAM")
-part-diagram-08.60.1.webp "MASERATI MC20 (2022) MAIN WIRING PARTS DIAGRAM")
-part-diagram-08.60.2.webp "MASERATI MC20 (2022) MAIN WIRING PARTS DIAGRAM")
-part-diagram-08.60.3.webp "MASERATI MC20 (2022) MAIN WIRING PARTS DIAGRAM")
-part-diagram-08.61.1.webp "MASERATI MC20 (2022) RELAYS, FUSES AND BOXES PARTS DIAGRAM")
-part-diagram-08.62.1.webp "MASERATI MC20 (2022) CONNECTORS PARTS DIAGRAM")
-part-diagram-08.63.1.webp "MASERATI MC20 (2022) EXTRACTORS PARTS DIAGRAM")
-part-diagram-08.70.1.webp "MASERATI MC20 (2022) SOUND DIFFUSION SYSTEM PARTS DIAGRAM")
-part-diagram-08.70.2.webp "MASERATI MC20 (2022) SOUND DIFFUSION SYSTEM PARTS DIAGRAM")
-part-diagram-08.71.1.webp "MASERATI MC20 (2022) IT SYSTEM PARTS DIAGRAM")
-part-diagram-08.71.2.webp "MASERATI MC20 (2022) IT SYSTEM PARTS DIAGRAM")
-part-diagram-08.72.1.webp "MASERATI MC20 (2022) RECEPTION AND CONNECTION SYSTEM PARTS DIAGRAM")
-part-diagram-08.73.1.webp "MASERATI MC20 (2022) DRIVE ASSISTANCE SYSTEM PARTS DIAGRAM")
-part-diagram-09.06.1.webp "MASERATI MC20 (2022) EXTERNAL COVERING PARTS DIAGRAM")
-part-diagram-09.07.1.webp "MASERATI MC20 (2022) FRONT CHASSIS PARTS DIAGRAM")
-part-diagram-09.08.1.webp "MASERATI MC20 (2022) CENTRAL MONOCOQUE PARTS DIAGRAM")
-part-diagram-09.09.1.webp "MASERATI MC20 (2022) REAR CHASSIS PARTS DIAGRAM")
-part-diagram-09.10.1.webp "MASERATI MC20 (2022) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-09.11.1.webp "MASERATI MC20 (2022) REAR BUMPER PARTS DIAGRAM")
-part-diagram-09.12.1.webp "MASERATI MC20 (2022) PARKING SENSORS PARTS DIAGRAM")
-part-diagram-09.13.1.webp "MASERATI MC20 (2022) WHEELHOUSE AND LIDS PARTS DIAGRAM")
-part-diagram-09.14.1.webp "MASERATI MC20 (2022) UNDERBODY AND UNDERFLOOR GUARDS PARTS DIAGRAM")
-part-diagram-09.15.1.webp "MASERATI MC20 (2022) SHIELDS, TRIMS AND COVERING PANELS PARTS DIAGRAM")
-part-diagram-09.16.1.webp "MASERATI MC20 (2022) TRIMS, BRANDS AND SYMBOLS PARTS DIAGRAM")
-part-diagram-09.17.1.webp "MASERATI MC20 (2022) STICKERS AND LABELS PARTS DIAGRAM")
-part-diagram-09.20.1.webp "MASERATI MC20 (2022) FRONT LID PARTS DIAGRAM")
-part-diagram-09.21.1.webp "MASERATI MC20 (2022) REAR LID PARTS DIAGRAM")
-part-diagram-09.22.1.webp "MASERATI MC20 (2022) FUEL TANK DOOR AND CONTROLS PARTS DIAGRAM")
-part-diagram-09.23.1.webp "MASERATI MC20 (2022) FRONT LID OPENING BUTTON PARTS DIAGRAM")
-part-diagram-09.24.1.webp "MASERATI MC20 (2022) REAR LID OPENING CONTROL PARTS DIAGRAM")
-part-diagram-09.28.1.webp "MASERATI MC20 (2022) DOORS: TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.29.1.webp "MASERATI MC20 (2022) DOORS: MECHANISMS PARTS DIAGRAM")
-part-diagram-09.34.1.webp "MASERATI MC20 (2022) WINDOWS AND WINDOW STRIPS PARTS DIAGRAM")
-part-diagram-09.35.1.webp "MASERATI MC20 (2022) INTERNAL AND EXTERNAL REAR-VIEW MIRRORS PARTS DIAGRAM")
-part-diagram-09.38.1.webp "MASERATI MC20 (2022) SEATS: TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.38.2.webp "MASERATI MC20 (2022) SEATS: TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.39.1.webp "MASERATI MC20 (2022) SEATS: MECHANICS AND ELECTRONICS PARTS DIAGRAM")
-part-diagram-09.44.1.webp "MASERATI MC20 (2022) PASSENGER COMPARTMENT B PILLAR TRIM PANELS AND SIDE PANELS PARTS DIAGRAM")
-part-diagram-09.45.1.webp "MASERATI MC20 (2022) ROOF AND SUN VISORS PARTS DIAGRAM")
-part-diagram-09.50.1.webp "MASERATI MC20 (2022) DASHBOARD UNIT PARTS DIAGRAM")
-part-diagram-09.50.2.webp "MASERATI MC20 (2022) DASHBOARD UNIT PARTS DIAGRAM")
-part-diagram-09.51.1.webp "MASERATI MC20 (2022) ACCESSORY CONSOLE AND CENTRE CONSOLE PARTS DIAGRAM")
-part-diagram-09.52.1.webp "MASERATI MC20 (2022) GLOVE COMPARTMENTS PARTS DIAGRAM")
-part-diagram-09.52.2.webp "MASERATI MC20 (2022) GLOVE COMPARTMENTS PARTS DIAGRAM")
-part-diagram-09.60.1.webp "MASERATI MC20 (2022) PASSENGER COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-09.62.1.webp "MASERATI MC20 (2022) SOUND-PROOFING PANELS INSIDE THE VEHICLE PARTS DIAGRAM")
-part-diagram-09.63.1.webp "MASERATI MC20 (2022) THERMAL INSULATING PANELS PARTS DIAGRAM")
-part-diagram-09.64.1.webp "MASERATI MC20 (2022) TRUNK COMPARTMENTS PARTS DIAGRAM")
-part-diagram-01.00.1.webp "MASERATI MC20 (2022) CRANKCASE PARTS DIAGRAM")
-part-diagram-01.10.1.webp "MASERATI MC20 (2022) CRANK MECHANISM PARTS DIAGRAM")
-part-diagram-01.11.1.webp "MASERATI MC20 (2022) AUXILIARY DEVICE BELTS PARTS DIAGRAM")
-part-diagram-01.20.1.webp "MASERATI MC20 (2022) RH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-01.21.1.webp "MASERATI MC20 (2022) LH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-01.22.1.webp "MASERATI MC20 (2022) RH CYLINDER HEAD CAMSHAFTS PARTS DIAGRAM")
-part-diagram-01.23.1.webp "MASERATI MC20 (2022) LH CYLINDER HEAD CAMSHAFTS PARTS DIAGRAM")
-part-diagram-01.24.1.webp "MASERATI MC20 (2022) TIMING PARTS DIAGRAM")
-part-diagram-01.25.1.webp "MASERATI MC20 (2022) VALVES PARTS DIAGRAM")
-part-diagram-01.30.1.webp "MASERATI MC20 (2022) TURBOCHARGING SYSTEM: EQUIPMENTS PARTS DIAGRAM")
-part-diagram-01.31.1.webp "MASERATI MC20 (2022) TURBOCHARGING SYSTEM: LUBRICATION AND COOLING PARTS DIAGRAM")
-part-diagram-01.32.1.webp "MASERATI MC20 (2022) INTERCOOLER SYSTEM PARTS DIAGRAM")
-part-diagram-01.40.1.webp "MASERATI MC20 (2022) INTAKE MANIFOLD AND THROTTLE BODY PARTS DIAGRAM")
-part-diagram-01.41.1.webp "MASERATI MC20 (2022) AIR FILTER, AIR INTAKE AND DUCTS PARTS DIAGRAM")
-part-diagram-01.42.1.webp "MASERATI MC20 (2022) FUEL TANK PARTS DIAGRAM")
-part-diagram-01.43.1.webp "MASERATI MC20 (2022) FUEL PUMPS AND CONNECTION LINES PARTS DIAGRAM")
-part-diagram-01.43.2.webp "MASERATI MC20 (2022) FUEL PUMPS AND CONNECTION LINES PARTS DIAGRAM")
-part-diagram-01.44.1.webp "MASERATI MC20 (2022) FUEL VAPOUR RECIRCULATION SYSTEM PARTS DIAGRAM")
-part-diagram-01.44.2.webp "MASERATI MC20 (2022) FUEL VAPOUR RECIRCULATION SYSTEM PARTS DIAGRAM")
-part-diagram-01.60.1.webp "MASERATI MC20 (2022) LUBRICATION SYSTEM: CIRCUIT AND COLLECTION PARTS DIAGRAM")
-part-diagram-01.61.1.webp "MASERATI MC20 (2022) LUBRICATION SYSTEM: PUMP AND FILTER PARTS DIAGRAM")
-part-diagram-01.62.1.webp "MASERATI MC20 (2022) HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-01.63.1.webp "MASERATI MC20 (2022) OIL VAPOUR RECIRCULATION SYSTEM PARTS DIAGRAM")
-part-diagram-01.70.1.webp "MASERATI MC20 (2022) COOLING: AIR RADIATORS AND DUCTS PARTS DIAGRAM")
-part-diagram-01.71.1.webp "MASERATI MC20 (2022) COOLING SYSTEM: NOURICE AND LINES PARTS DIAGRAM")
-part-diagram-01.71.2.webp "MASERATI MC20 (2022) COOLING SYSTEM: NOURICE AND LINES PARTS DIAGRAM")
-part-diagram-01.72.1.webp "MASERATI MC20 (2022) COOLING SYSTEM: WATER PUMP PARTS DIAGRAM")
-part-diagram-01.80.1.webp "MASERATI MC20 (2022) PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS PARTS DIAGRAM")
-part-diagram-01.81.1.webp "MASERATI MC20 (2022) SILENCERS PARTS DIAGRAM")
-part-diagram-01.90.1.webp "MASERATI MC20 (2022) ELECTRONIC CONTROL: INJECTION AND ENGINE TIMING CONTROL PARTS DIAGRAM")
-part-diagram-01.91.1.webp "MASERATI MC20 (2022) ELECTRONIC CONTROL: ENGINE IGNITION PARTS DIAGRAM")
