maserati mc20 cielo (2023) gearbox housings parts diagram

03.10.1 - gearbox housings

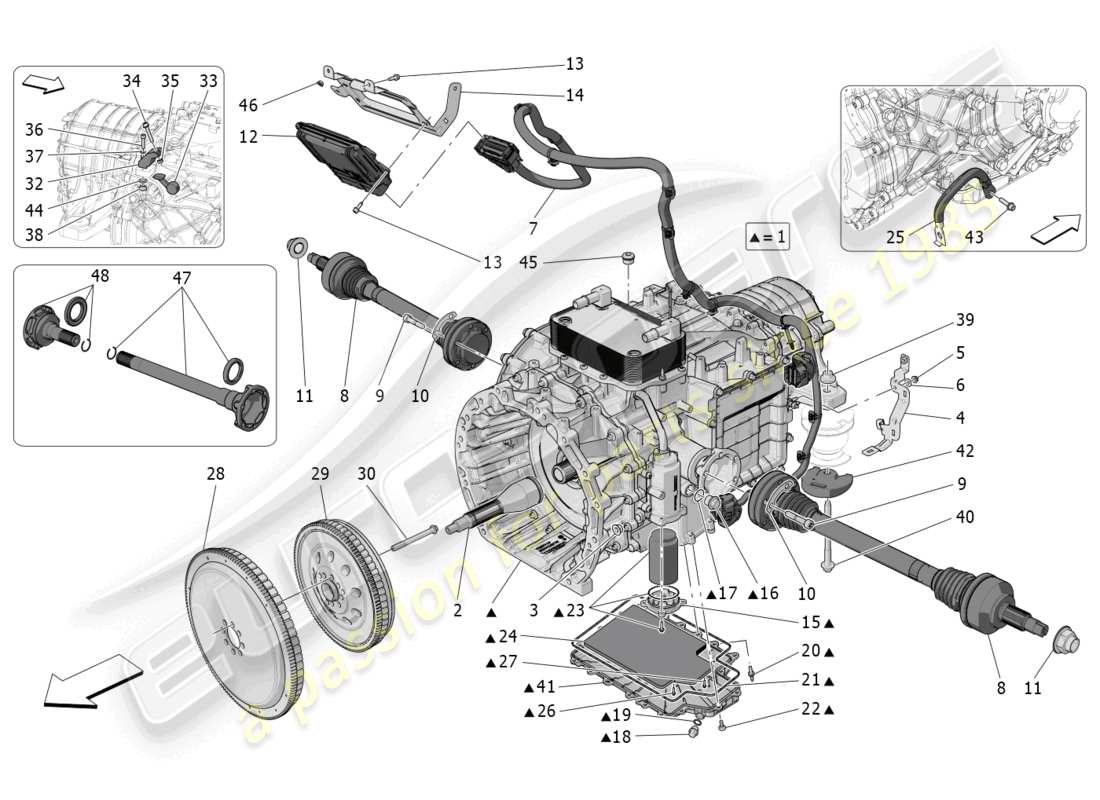

Maserati MC20 Cielo (2023) GEARBOX HOUSINGS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 670175118
AUTOMATIC GEARBOX ASSEMBLY
Suitable for cars with: MECHANICAL LIMITED-SLIP DIFFERENTIAL. Not for cars with: REAR ELECTRONIC DIFFERENTIAL.
from £15,969.14
from £15,969.14
AUTOMATIC GEARBOX ASSEMBLY Genuine Maserati Part - New (to order)
# 001
MPN: 670222423
AUTOMATIC GEARBOX ASSEMBLY
Suitable for cars with: REAR ELECTRONIC DIFFERENTIAL. Not for cars with: MECHANICAL LIMITED-SLIP DIFFERENTIAL.
Supersession
Supersession
This part replaces part number 670154772
Genuine Maserati Part (no longer available to order)
# 002
MPN: 670181842
SHAFT
from £763.63
from £763.63
SHAFT Genuine Maserati Part - New (to order)
# 003
MPN: 675001210
NUT
from £1.11
from £1.11
NUT Genuine Maserati Part - New (to order)
# 004
MPN: 670160120
BRACKET
from £20.44
from £20.44
BRACKET Genuine Maserati Part - New (to order)
# 005
MPN: 670175151
NUT
from £1.18
from £1.18
NUT Genuine Maserati Part - New (to order)
# 006
MPN: 670175146
WASHER
from £1.78
from £1.78
This part replaces part number 670302664
WASHER Genuine Maserati Part - New (to order)
# 007
MPN: 670175232
AUTOMATIC GEARBOX WIRING HARNESS
from £367.94
from £367.94
GEARBOX WIRING Genuine Maserati Part - New (to order)
# 008
MPN: 670301968
Rear axle shaft
from £145.42
from £145.42
This part replaces part number 670219393
Rear axle shaft Genuine Maserati Part - New (to order)
# 009
MPN: 670295832
SCREW
from £3.69
from £3.69
This part replaces part number 670160302
SCREW Genuine Maserati Part - New (to order)
# 010
MPN: 670002408
PLATE
from £1.34
from £1.34
TRANSMISSION SHAFT FAST. SCREW Genuine Maserati Part - New (to order)
TRANSMISSION SHAFT FAST. SCREW Genuine Maserati Part - Used In stock
# 011
MPN: 675000138
NUT
from £6.06
from £6.06
NUT Genuine Maserati Part - New In stock
# 012
MPN: 670214553
CONTROL UNIT GEARBOX
from £2,534.51
from £2,534.51
This part replaces part number 670179758
CONTROL UNIT GEARBOX Genuine Maserati Part - New (to order)
# 013
MPN: 670175147
SCREW
from £4.71
from £4.71
SCREW Genuine Maserati Part - New (to order)
# 014
MPN: 670178528
BRACKET
from £43.15
from £43.15
BRACKET Genuine Maserati Part - New (to order)
# 015
MPN: 673011251
COVER FILTER
from £155.74
from £155.74
COVER FILTER Genuine Maserati Part - New (to order)
# 016
MPN: 673011243
OIL LEVEL PLUG
from £22.54
from £22.54
TRANS OIL FILL PLUG (17MM) Genuine Maserati Part - New (to order)
# 017
MPN: 673011244
O.R. GASKET
from £7.83
from £7.83
TRANS FLUID FILL PLUG O-RING Genuine Maserati Part - New (to order)
# 018
MPN: 673011245
PLUG
from £19.68
from £19.68
PLUG Genuine Maserati Part - New (to order)
# 019
MPN: 673011246
O.R. GASKET
from £6.06
from £6.06
O.R. GASKET Genuine Maserati Part - New (to order)
# 020
MPN: 673011571
PIN
from £21.23
from £21.23
PIN Genuine Maserati Part - New (to order)
# 021
MPN: 673011569
GASKET
Valid from engine: 1349079 - 0.
from £84.10
from £84.10
GASKET Genuine Maserati Part - New (to order)
# 021
MPN: 673011569
GASKET
Valid from engine: 1350072 - 0.
from £84.10
from £84.10
GASKET Genuine Maserati Part - New (to order)
# 021
MPN: 673014161
GASKET #IF STOCK = 0, ORDER THE GASKET 673011569 AND FOR THE FIRST REPLACEMENT ALSO ORDER THE OIL PAN 673013152#
Valid from engine: 0 - 1349078.
GASKET #IF STOCK = 0, ORDER THE GASKET 673011569 AND FOR THE FIRST REPLACEMENT ALSO ORDER THE OIL PAN 673013152# Genuine Maserati Part - New (to order)
# 021
MPN: 673014161
GASKET #IF STOCK = 0, ORDER THE GASKET 673011569 AND FOR THE FIRST REPLACEMENT ALSO ORDER THE OIL PAN 673013152#
Valid from engine: 0 - 1350071.
GASKET #IF STOCK = 0, ORDER THE GASKET 673011569 AND FOR THE FIRST REPLACEMENT ALSO ORDER THE OIL PAN 673013152# Genuine Maserati Part - New (to order)
# 022
MPN: 673011570
SCREW
from £8.89
from £8.89
SCREW Genuine Maserati Part - New (to order)
# 023
MPN: 673011242
FILTER KIT
from £125.37
from £125.37
Transmission Oil Filter Genuine Maserati Part - New In stock
# 024
MPN: 673011566
FILTER
from £128.80
from £128.80
OIL SUMP FILTER Genuine Maserati Part - New (to order)
# 025
MPN: 670181161
GROUND CABLE
from £25.83
from £25.83
GROUND CABLE Genuine Maserati Part - New (to order)
# 026
MPN: 673011567
SCREW
from £8.58
from £8.58
SCREW Genuine Maserati Part - New (to order)
# 027
MPN: 673011568
SCREW
from £4.71
from £4.71
SCREW Genuine Maserati Part - New (to order)
# 028
MPN: 670182513
ADAPTER
from £947.31
from £947.31
ADAPTER Genuine Maserati Part - New (to order)
# 029
MPN: 670182512
engine flywheel
from £1,494.88
from £1,494.88
engine flywheel Genuine Maserati Part - New (to order)
# 030
MPN: 670182510
SCREW
from £34.81
from £34.81
SCREW Genuine Maserati Part - New (to order)
# 032
MPN: 670181908
BRACKET
from £30.84
from £30.84
BRACKET ASSEMBLY Genuine Maserati Part - New (to order)
# 033
MPN: 670181910
LEVER
from £42.55
from £42.55
LEVER Genuine Maserati Part - New (to order)
# 034
MPN: 670182068
SCREW
from £1.69
from £1.69
SCREW Genuine Maserati Part - New (to order)
# 035
MPN: 675001208
NUT
from £1.11
from £1.11
NUT Genuine Maserati Part - New (to order)
# 036
MPN: 675001206
SCREW
from £0.68
from £0.68
SCREW Genuine Maserati Part - New (to order)
# 037
MPN: 675001428
WASHER
from £0.68
from £0.68
WASHER Genuine Maserati Part - New (to order)
# 038
MPN: 670181913
NUT
from £11.19
from £11.19
NUT Genuine Maserati Part - New (to order)
# 039
MPN: 675000127
NUT [M12]
from £1.30
from £1.30
NUT M12X1 75 Genuine Maserati Part - New In stock
# 040
MPN: 675001431
SCREW
from £9.53
from £9.53
SCREW Genuine Maserati Part - New (to order)
# 041
MPN: 673013152
GEARBOX OIL SUMP #FOR CARS WITH TRANSMISSION SERIAL<1349079 WITH THE FIRST REPLACEMENT OF THE OIL PAN PN 673013152 ORDER ALSO THE GASKET PN 673011569#
Suitable for cars with: REAR ELECTRONIC DIFFERENTIAL. Not for cars with: MECHANICAL LIMITED-SLIP DIFFERENTIAL.
from £391.13
from £391.13
GEARBOX OIL SUMP KIT M240 Genuine Maserati Part - New (to order)
# 041
MPN: 673013152
GEARBOX OIL SUMP #FOR CARS WITH TRANSMISSION SERIAL<1350072 WITH THE FIRST REPLACEMENT OF THE OIL PAN PN 673013152 ORDER ALSO THE GASKET PN 673011569#
Suitable for cars with: MECHANICAL LIMITED-SLIP DIFFERENTIAL. Not for cars with: REAR ELECTRONIC DIFFERENTIAL.
from £391.13
from £391.13
GEARBOX OIL SUMP KIT M240 Genuine Maserati Part - New (to order)
# 042
MPN: 670213358
MASS DAMPER
from £181.05
from £181.05
DAMPING MASS Genuine Maserati Part - New (to order)
# 043
MPN: 675001211
SCREW
from £5.38
from £5.38
SCREW Genuine Maserati Part - New (to order)
# 044
MPN: 670181914
WASHER
from £18.08
from £18.08
WASHER Genuine Maserati Part - New (to order)
# 045
MPN: 673014040
TRANSMISSION OIL DELIVERY CAP WITH O-RING
from £9.76
from £9.76
TRANS OIL FILL PLUG + O-RING Genuine Maserati Part - New (to order)
# 046
MPN: 670175152
NUT
from £2.35
from £2.35
NUT Genuine Maserati Part - New (to order)
# 047
MPN: 673015685
LH GEARBOX FLANGE KIT
Suitable for cars with: MECHANICAL LIMITED-SLIP DIFFERENTIAL.
from £329.63
from £329.63
LH GEARBOX FLANGE KIT Genuine Maserati Part - New (to order)
# 047
MPN: 673015686
LH GEARBOX FLANGE KIT
Suitable for cars with: REAR ELECTRONIC DIFFERENTIAL.
from £344.77
from £344.77
LH GEARBOX FLANGE KIT Genuine Maserati Part - New (to order)
# 048
MPN: 673015683
RH GEARBOX FLANGE KIT
Suitable for cars with: MECHANICAL LIMITED-SLIP DIFFERENTIAL.
from £263.20
from £263.20
RH GEARBOX FLANGE KIT Genuine Maserati Part - New (to order)
# 048
MPN: 673015684
RH GEARBOX FLANGE KIT
Suitable for cars with: REAR ELECTRONIC DIFFERENTIAL.
from £268.24
from £268.24
RH GEARBOX FLANGE KIT Genuine Maserati Part - New (to order)
