maserati ghibli (2021) crankcase parts diagram

01.00.5 - crankcase

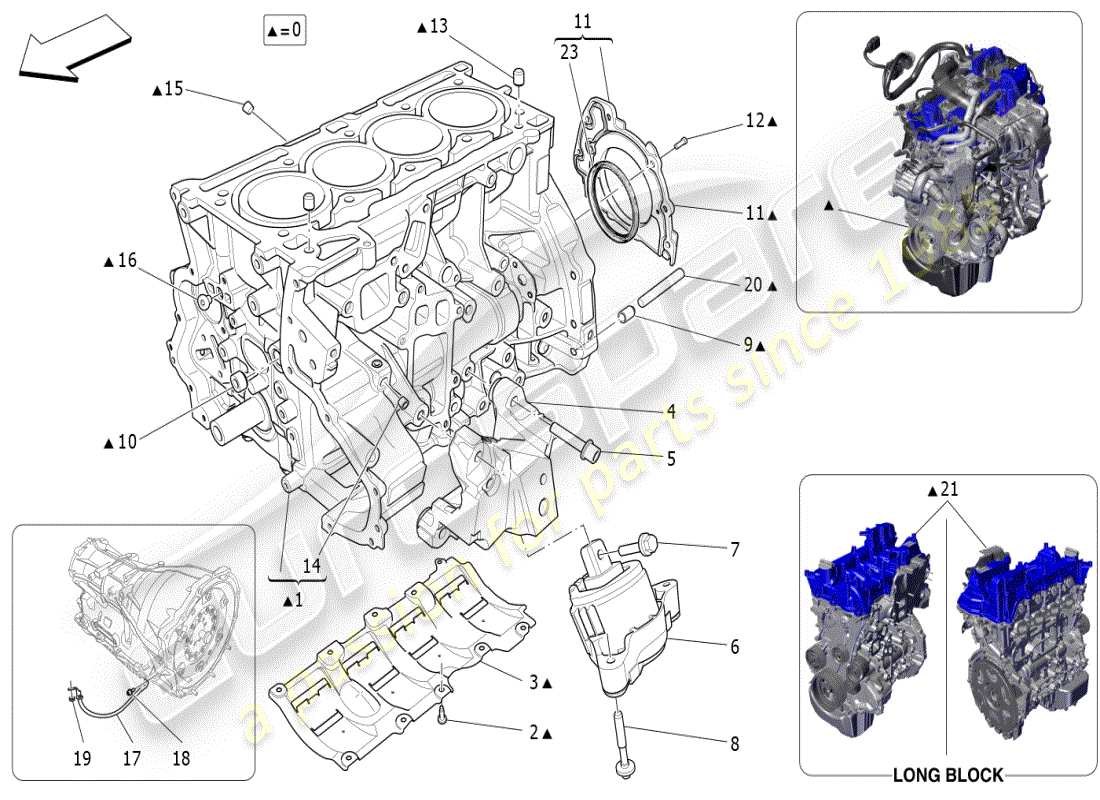

Maserati Ghibli (2021) CRANKCASE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 000
MPN: 670053794
engine assembly
Valid from assembly:0 - 5110289.Suitable for:AUTOMATIC|2.0 T4 2WD 330 HP MHEV|ITALY, UK, UNITED ARAB EMIRATES
from £14,085.32
from £14,085.32
COMPLETE GHIBLI ENGINE T4 CC2.0 M Genuine Maserati Part - New (to order)
# 000
MPN: 670054229
ENGINE ASSEMBLY #FOR VEHICLES WITH ENGINE SERIAL NUMBER< 1657290 ORDERING THE NEW ENGINE 670054373, IS MANDATORY TO UPDATE THE ENGINE SOFTWARE#
Valid from engine:1630694 - 1657289.Suitable for:AUTOMATIC|2.0 T4 2WD 330 HP MHEV|ITALY, UK, UNITED ARAB EMIRATES
from £15,205.74
from £15,205.74
COMPLETE GHIBLI ENGINE T4 CC2.0 M Genuine Maserati Part - New (to order)
# 000
MPN: 670054373
engine assembly
Suitable for:AUTOMATIC|2.0 T4 2WD 330 HP MHEV|ITALY, UNITED ARAB EMIRATES
from £15,205.74
from £15,205.74
ENGINE ASSEMBLY GHIBLI T4 CC Genuine Maserati Part - New (to order)
# 001
MPN: 670053792
engine block
Valid from engine:0 - 1574960.Suitable for:AUTOMATIC|2.0 T4 2WD 330 HP MHEV|ITALY, UK, UNITED ARAB EMIRATES
from £2,423.75
from £2,423.75
engine block Genuine Maserati Part - New (to order)
# 001
MPN: 670054036
ENGINE BLOCK #IF STOCK=0, PLEASE ORDER ALSO THE ENGINE BLOCK 670054052 WITH PISTONS 670054090 OR 670054091 AND THE HEAD GASKET 670053812#
Valid from engine:0 - 1657289.Suitable for:AUTOMATIC|2.0 T4 2WD 330 HP MHEV|ITALY, UK, UNITED ARAB EMIRATES
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 001
MPN: 670054052
engine block
Valid from engine:0 - 1951649.Suitable for:AUTOMATIC|2.0 T4 2WD 330 HP MHEV|ITALY, UK, UNITED ARAB EMIRATES
from £2,423.75
from £2,423.75
This part replaces part number 670054036
BASAMENTO COMPLETE MHEV Genuine Maserati Part - New (to order)
# 001
MPN: 670054408
engine block
Suitable for:AUTOMATIC|2.0 T4 2WD 330 HP MHEV|ITALY, UK, UNITED ARAB EMIRATES
engine block Genuine Maserati Part - New (to order)
# 002
MPN: 675000844
SCREW
Suitable for:AUTOMATIC|2.0 T4 2WD 330 HP MHEV|ITALY, UK, UNITED ARAB EMIRATES
from £1.79
from £1.79
SCREW Genuine Maserati Part - New (to order)
# 003
MPN: 675000923
BASE SHIELD
Suitable for:AUTOMATIC|2.0 T4 2WD 330 HP MHEV|ITALY, UK, UNITED ARAB EMIRATES
from £13.16
from £13.16
OIL SUMP GUARD Genuine Maserati Part - New (to order)
# 004
MPN: 670053637
RH ENGINE MOUNTING BRACKET
Suitable for:AUTOMATIC|2.0 T4 2WD 330 HP MHEV|ITALY, UK, UNITED ARAB EMIRATES
from £79.56
from £79.56
RH ENGINE MOUNTING BRACKET Genuine Maserati Part - New (to order)
# 004
MPN: 670154503
LH ENGINE MOUNTING BRACKET
Suitable for:AUTOMATIC|2.0 T4 2WD 330 HP MHEV|ITALY, UK, UNITED ARAB EMIRATES
from £79.56
from £79.56
LH ENGINE MOUNTING BRACKET Genuine Maserati Part - New (to order)
# 005
MPN: 675001128
SCREW
Suitable for:AUTOMATIC|2.0 T4 2WD 330 HP MHEV|ITALY, UK, UNITED ARAB EMIRATES
from £1.63
from £1.63
SCREW Genuine Maserati Part - New (to order)
# 006
MPN: 670215951
RH ENGINE BUSHING
Suitable for:AUTOMATIC|2.0 T4 2WD 330 HP MHEV|ITALY, UK, UNITED ARAB EMIRATES
from £189.14
from £189.14
This part replaces part number 670174030
RH ENGINE BUSHING Genuine Maserati Part - New (to order)
# 006
MPN: 670215952
LH ENGINE BUSHING
Suitable for:AUTOMATIC|2.0 T4 2WD 330 HP MHEV|ITALY, UK, UNITED ARAB EMIRATES
from £189.14
from £189.14
This part replaces part number 670174179
LH ENGINE BUSHING Genuine Maserati Part - New (to order)
# 007
MPN: 670038507
SCREW
Suitable for:AUTOMATIC|2.0 T4 2WD 330 HP MHEV|ITALY, UK, UNITED ARAB EMIRATES
from £3.82
from £3.82
SPECIAL SCREW Genuine Maserati Part - New (to order)
# 008
MPN: 670103084
SCREW
Suitable for:AUTOMATIC|2.0 T4 2WD 330 HP MHEV|ITALY, UK, UNITED ARAB EMIRATES
from £1.95
from £1.95
SCREW AND WASHER Genuine Maserati Part - New (to order)
# 009
MPN: 675000841
CENTERING DOWEL
Suitable for:AUTOMATIC|2.0 T4 2WD 330 HP MHEV|ITALY, UK, UNITED ARAB EMIRATES
from £1.55
from £1.55
DOWEL Genuine Maserati Part - New (to order)
# 010
MPN: 675000836
PLUG
Suitable for:AUTOMATIC|2.0 T4 2WD 330 HP MHEV|ITALY, UK, UNITED ARAB EMIRATES
from £1.25
from £1.25
PLUG Genuine Maserati Part - New (to order)
# 011
MPN: 675000872
REAR PLATE
Valid from engine:0 - 1960428.Suitable for:AUTOMATIC|2.0 T4 2WD 330 HP MHEV|ITALY, UK, UNITED ARAB EMIRATES
from £42.77
from £42.77
CRANKSHAFT RETAINER Genuine Maserati Part - New (to order)
# 011
MPN: 675007942
REAR PLATE
Suitable for:AUTOMATIC|2.0 T4 2WD 330 HP MHEV|ITALY, UK, UNITED ARAB EMIRATES
REAR PLATE Genuine Maserati Part - New (to order)
# 012
MPN: 675000873
SCREW
Suitable for:AUTOMATIC|2.0 T4 2WD 330 HP MHEV|ITALY, UK, UNITED ARAB EMIRATES
from £1.87
from £1.87
SCREW Genuine Maserati Part - New (to order)
# 013
MPN: 675000891
CENTERING PIN
Suitable for:AUTOMATIC|2.0 T4 2WD 330 HP MHEV|ITALY, UK, UNITED ARAB EMIRATES
from £3.89
from £3.89
CYLINDRICAL PLUG Genuine Maserati Part - New (to order)
# 014
MPN: 675000835
PLUG
Suitable for:AUTOMATIC|2.0 T4 2WD 330 HP MHEV|ITALY, UK, UNITED ARAB EMIRATES
from £1.14
from £1.14
THREADED PLUG Genuine Maserati Part - New (to order)
# 015
MPN: 675000837
PLUG
Suitable for:AUTOMATIC|2.0 T4 2WD 330 HP MHEV|ITALY, UK, UNITED ARAB EMIRATES
from £0.92
from £0.92
THREADED PLUG Genuine Maserati Part - New (to order)
# 016
MPN: 675000874
PLUG
Suitable for:AUTOMATIC|2.0 T4 2WD 330 HP MHEV|ITALY, UK, UNITED ARAB EMIRATES
from £1.25
from £1.25
THREADED PLUG Genuine Maserati Part - New (to order)
# 017
MPN: 670155454
CABLE FOR ENGINE-FRAME EARTH
Suitable for:AUTOMATIC|2.0 T4 2WD 330 HP MHEV|ITALY, UK, UNITED ARAB EMIRATES
from £18.11
from £18.11
CABLE FOR ENGINE-FRAME EARTH Genuine Maserati Part - New (to order)
# 018
MPN: 675000383
SCREW [M8X16]
Suitable for:AUTOMATIC|2.0 T4 2WD 330 HP MHEV|ITALY, UK, UNITED ARAB EMIRATES
from £0.98
from £0.98
SCREW Genuine Maserati Part - New (to order)
# 019
MPN: 675000505
NUT [M8]
Suitable for:AUTOMATIC|2.0 T4 2WD 330 HP MHEV|ITALY, UK, UNITED ARAB EMIRATES
from £2.12
from £2.12
NUT Genuine Maserati Part - New (to order)
# 020
MPN: 675000881
STUD
Suitable for:AUTOMATIC|2.0 T4 2WD 330 HP MHEV|ITALY, UK, UNITED ARAB EMIRATES
from £3.48
from £3.48
THREADED ROD Genuine Maserati Part - New (to order)
# 021
MPN: 673015234
long block
Suitable for:AUTOMATIC|2.0 T4 2WD 330 HP MHEV|ITALY, UK, UNITED ARAB EMIRATES
from £5,078.67
from £5,078.67
LONG BLOCK GHIBLI MHEV Genuine Maserati Part - New (to order)
# 023
MPN: 675001157
SEAL RING
Suitable for:AUTOMATIC|2.0 T4 2WD 330 HP MHEV|ITALY, UK, UNITED ARAB EMIRATES
from £29.59
from £29.59
CRANKSHAFT GASKET Genuine Maserati Part - New (to order)
