027 - Transmission Box

Maserati Biturbo 2.5 (1984) Transmission Box Parts Diagram

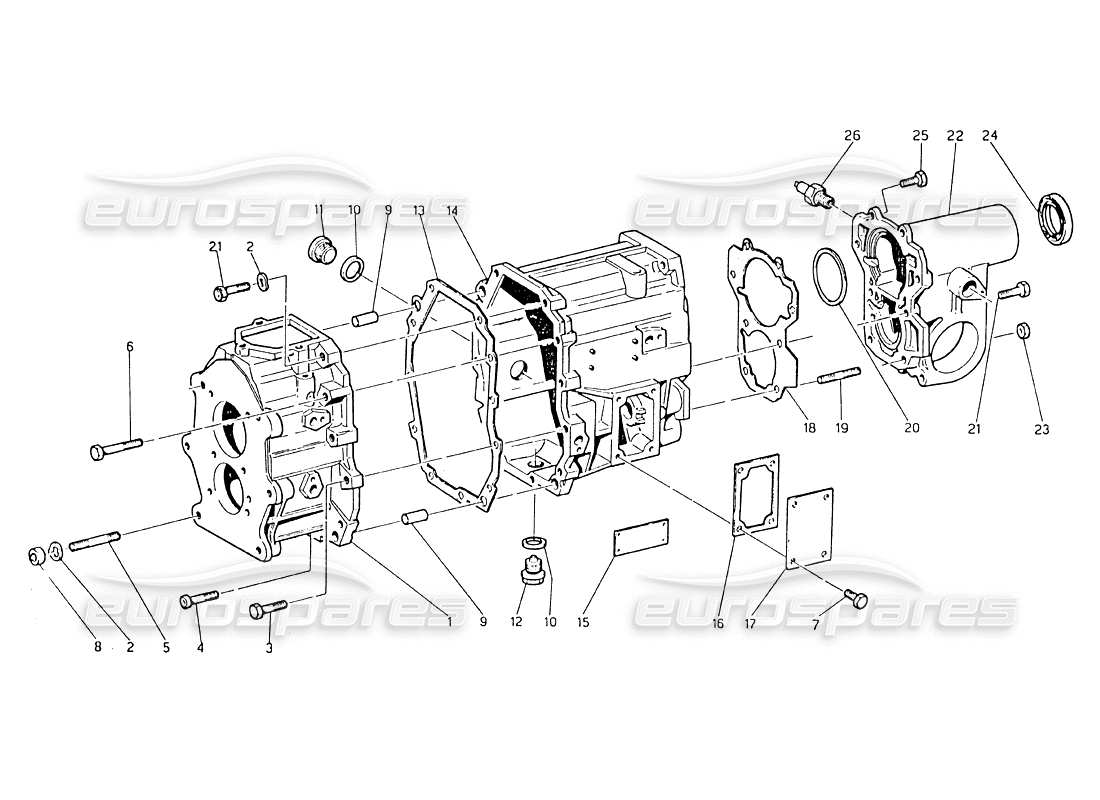

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price
                                                      # 001
                                                      MPN: 314820310
                                                      HOUSING FRONT SIDE
                                                      from £176.60
                                                      from £176.60
                                                      # 003
                                                      MPN: 314820361
                                                      SCREW
                                                      # 004
                                                      MPN: 314820365
                                                      SCREW
                                                      # 005
                                                      MPN: 314820318
                                                      STUD
                                                      # 006
                                                      MPN: 314820360
                                                      SCREW
                                                      from £13.02
                                                      from £13.02
                                                      # 007
                                                      MPN: 314820364
                                                      SCREW
                                                      from £1.84
                                                      from £1.84
                                                      # 008
                                                      MPN: 314820300
                                                      NUT
                                                      from £0.76
                                                      from £0.76
                                                      # 009
                                                      MPN: 314820317
                                                      CENTERING PIN
                                                      # 010
                                                      MPN: 314820320
                                                      SEAL RING
                                                      from £1.02
                                                      from £1.02
                                                      # 011
                                                      MPN: 314820363
                                                      OIL FILLER PLUG
                                                      from £2.83
                                                      from £2.83
                                                      # 012
                                                      MPN: 314820362
                                                      OIL DRAIN PLUG
                                                      from £9.54
                                                      from £9.54
                                                      # 013
                                                      MPN: 314820323
                                                      GASKET
                                                      from £9.12
                                                      from £9.12
                                                      # 014
                                                      MPN: 314820324
                                                      TRANS. HOUSING REAR SIDE
                                                      from £393.40
                                                      from £393.40
                                                      # 016
                                                      MPN: 314820325
                                                      GASKET
                                                      from £3.21
                                                      from £3.21
                                                      # 017
                                                      MPN: 314820326
                                                      COVER
                                                      from £2.27
                                                      from £2.27
                                                      # 018
                                                      MPN: 314820330
                                                      GASKET
                                                      # 019
                                                      MPN: 314820369
                                                      STUD
                                                      from £1.54
                                                      from £1.54
                                                      # 020
                                                      MPN: 314820341
                                                      THRUST RING (1)
                                                      from £3.52
                                                      from £3.52
                                                      # 020
                                                      MPN: 314820342
                                                      THRUST RING (0,9)
                                                      from £3.52
                                                      from £3.52
                                                      # 020
                                                      MPN: 314820343
                                                      THRUST RING (0,8)
                                                      from £3.52
                                                      from £3.52
                                                      # 020
                                                      MPN: 314820344
                                                      THRUST RING (0.7)
                                                      from £3.52
                                                      from £3.52
                                                      # 020
                                                      MPN: 314820345
                                                      THRUST RING (0,6)
                                                      from £3.52
                                                      from £3.52
                                                      # 020
                                                      MPN: 314820346
                                                      THRUST RING (0,5)
                                                      from £3.52
                                                      from £3.52
                                                      # 020
                                                      MPN: 314820347
                                                      THRUST RING (0,4)
                                                      from £3.52
                                                      from £3.52
                                                      # 020
                                                      MPN: 314820348
                                                      THRUST RING (1,1)
                                                      from £3.52
                                                      from £3.52
                                                      # 020
                                                      MPN: 314820349
                                                      THRUST RING (1,2)
                                                      from £1.62
                                                      from £1.62
                                                      # 020
                                                      MPN: 314820350
                                                      THRUST RING (1,3)
                                                      from £1.62
                                                      from £1.62
                                                      # 020
                                                      MPN: 314820351
                                                      THRUST RING (1,4)
                                                      from £1.62
                                                      from £1.62
                                                      # 020
                                                      MPN: 314820352
                                                      THRUST RING (1,5)
                                                      from £3.52
                                                      from £3.52
                                                      # 020
                                                      MPN: 314820353
                                                      THRUST RING (1,6)
                                                      from £1.62
                                                      from £1.62
                                                      # 020
                                                      MPN: 314820354
                                                      THRUST RING (1.7)
                                                      from £3.52
                                                      from £3.52
                                                      # 020
                                                      MPN: 314820355
                                                      THRUST RING (1,8)
                                                      from £3.52
                                                      from £3.52
                                                      # 020
                                                      MPN: 314820356
                                                      THRUST RING (1,9)
                                                      from £1.62
                                                      from £1.62
                                                      # 021
                                                      MPN: 314820368
                                                      SCREW
                                                      # 022
                                                      MPN: 314820366
                                                      REAR COVER
                                                      # 023
                                                      MPN: 314820370
                                                      NUT
                                                      # 024
                                                      MPN: 314820336
                                                      SEAL RING
                                                      from £22.75
                                                      from £22.75
                                                      # 025
                                                      MPN: 314820367
                                                      SCREW
                                                      from £5.99
                                                      from £5.99
                                                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
