019 - Steering Parts

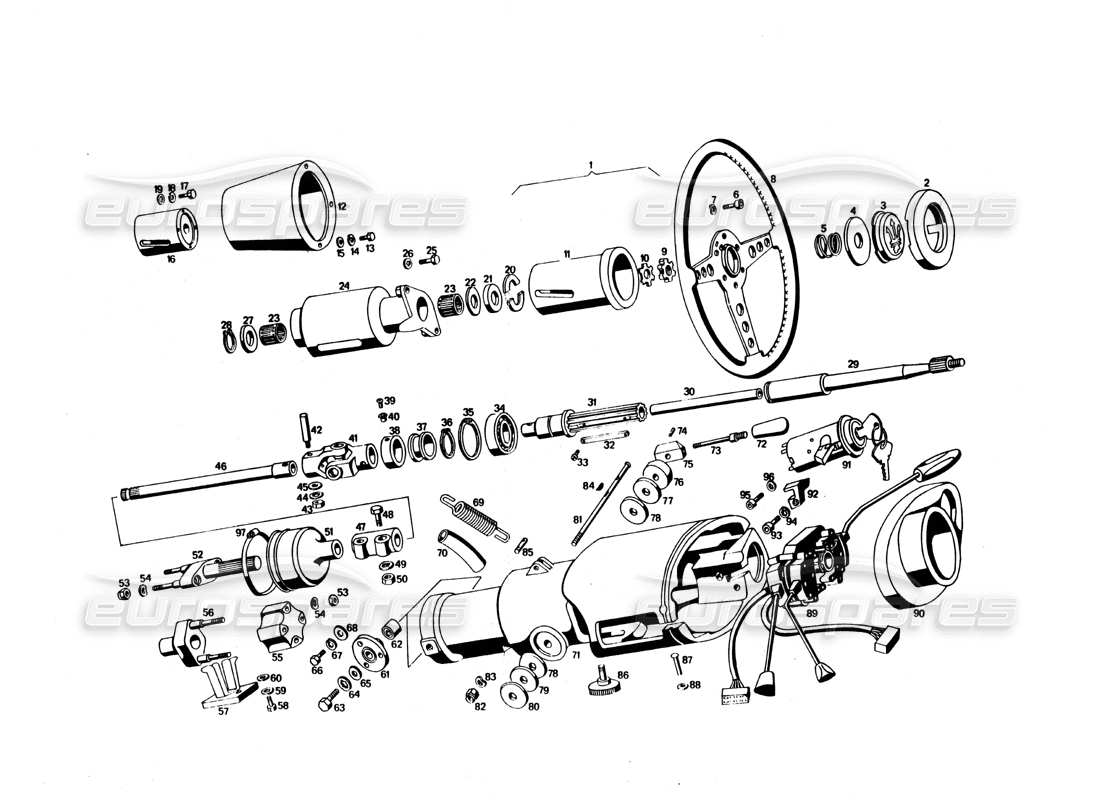

Maserati Bora Steering Parts Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
117 GS 117516
PARSE SUPERIORS PIANTONE COMPLETO DALLY 150A VETTURA IN POI
#
001
MPN:
117 GS 117518
UPPER PART COMPLETE COLUMN FRANCE AND USA TYPE
#
001
MPN:
117 GS 73634
PARSE SUPERLORE COMPLETE COLUMN UP TO 149A CAR
#
002
MPN:
116 GS 71776
BUSSOLA PER BOTTONE AVVISATORE ACUSTICO
#
002
MPN:
116 GS 72347
COMPASS FOR FRENCH AND USA TYPE HORN BUTTON
from
£232.17
from
£232.17
#
003
MPN:
116 GS 71777
BUTTON FOR HORN CONTROL
#
003
MPN:
116 GS 72336
Bottone per comando avvisatore acustico tipo Francia e U.S.A.
#
004
MPN:
116 GS 71909
DISCO APPOGGIO MOLTS AVVISATORE ACUSTICO
#
005
MPN:
116 GS 71778
SPRING
#
006
MPN:
VNT 73707
SCREW
#
007
MPN:
RDI 58544
WASHER
#
008
MPN:
117 GS 73953
STEERING WHEEL COMPLETE WITH HORN AND HUB UP TO THE 149 VEHICLE
#
008
MPN:
117 GS 73999
VOLANTE GUIDE COMPL. DI AVVIS. E MOZZO PER VESTURE TIP FRANCIA E U.S.A.
#
008
MPN:
117 GS 75842
STEERING WHEEL COMPLETE WITH HORN AND MONO FROM 150A VEHICLE. ON
#
008
MPN:
117 GS 76143
VOLANTE ANTI URTO T.P. FRANCIS E U.S.A.
#
009
MPN:
GH 53874
GHIERA FISSAGGLO VOLANTE AL PIANTONE
#
010
MPN:
RL 73588
WASHER
#
011
MPN:
116 GS 66627
MONO FOR STEERING WHEEL UP TO 149 CAR
#
011
MPN:
116/A GS 75839
MONO FOR DALLY STEERING WHEEL 150 VEHICLE ONWARDS
#
012
MPN:
115/A GS 70646
COMPLETE DEFORMABLE SLEEVE
#
013
MPN:
BNT47021
BOLT
from
£1.80
from
£1.80
This part replaces part number 47021
#
014
MPN:
RSN/32690
WASHER
#
015
MPN:
RNT 6701,1
WASHER
#
016
MPN:
116/A GS 75840
SHOCKPROOF STEERING WHEEL HUB FRANCE AND USA TYPE
#
017
MPN:
BNT49603
BUTTONS Ø 5 X 20 CH 8 FISSAGGIO CORPO DEFORMABILE
#
018
MPN:
RDI 58544
WASHER
#
019
MPN:
RNT 52530
WASHER
#
020
MPN:
116 GS 66629
SEMIANELLO DI TENUTA MANICOTTO SCORREVOLE
#
021
MPN:
116 GS 66628
BASE ON SLIDING SLEEVE
#
022
MPN:
116 GS 66901
RING
#
023
MPN:
GRL 59167
Gabble avullini Ø 30 X 37 X 20 sul manicotto scorrevole
#
024
MPN:
115/A GS 69683
SLIDING SLEEVE TO THE 149 VEHICLE
#
024
MPN:
116/A GS 75846
SLIDING SLEEVE DALLY 150 VEHICLE ONWARDS
#
025
MPN:
BNT 44294
Buttons Ø 5 X 0.8 X 25 fissaggio gruppo comando loci e tergi at piantone
#
026
MPN:
RDI 58544
WASHER
#
027
MPN:
107/A GS 65895
RING
#
028
MPN:
ART. 43121
RING
#
029
MPN:
116 GS 66623
PIANTONE COMANDO LOCI TERGL COMPLETO
#
030
MPN:
107/A GS 65304
CONDOTTO CAVO CLAKSON
#
031
MPN:
116 GS 66389
TERMINALS PLANTONE GRUPPO COMANDO LOCI GIUNTO
#
032
MPN:
LN56547
LINGUETTA PER TERMINALS PIANTONE
#
033
MPN:
VNT 56553
VLTE 3 X 0,5 X 6 FISSAGGIO LINGUETTA TERMINATE
#
034
MPN:
CSC 66304
SCREW
#
035
MPN:
ART 43992
RING
#
036
MPN:
ART 43993
RING
#
037
MPN:
116 GS 67332
Cotettore per avvisatore acustico
#
038
MPN:
116 GS 66613
BUSH
#
039
MPN:
RVN/30898
RIVETTO FISSAGGLO COLLETTORE PER AVVISATORE
#
040
MPN:
101/7 ME 66616
INSULATING BUSHINGS FOR SLIDING CONTACT CABLE
#
041
MPN:
116 GS 67265
Glunto fra t piantonl sterzo
#
042
MPN:
SN 59538
PIN
#
043
MPN:
DNT 47046
DODO Ø 5 X 0.8 X 4 PER DETTO
This part replaces part number 47046
#
044
MPN:
RDI 58544
WASHER
#
045
MPN:
RNT 52530
WASHER
#
046
MPN:
117 GS 73182
RIGHT BETWEEN THE JOINTS
#
047
MPN:
117 GS 73205
ATTACCO PIANTONE FRA I GLUNTI
#
048
MPN:
BNT 55702
BOLT
#
049
MPN:
RDI55990
WASHER
#
050
MPN:
DNT/47064
NUT
#
051
MPN:
117 GS 75223
Cuffia protezione giunto piantone steno
#
052
MPN:
117 GS 73273
FORK
#
053
MPN:
DST 48038
NUT
#
054
MPN:
RAT/47078
WASHER
#
055
MPN:
1011353148119
ELASTIC JOINT ON THE COLUMN
#
056
MPN:
117 GS 73274
FORK
#
057
MPN:
116 GS 66619
CONTATTO STRISCIANTE PER AVVISATORE ACUSTICO
#
059
MPN:
RSN 3 2 4 9 7
WASHER
#
060
MPN:
RNT 52530
WASHER
#
061
MPN:
116 GS 68142
BOCCOLS COMPLETE SILENBLOC
#
062
MPN:
SLN 66392
SILENBLOC FOR COLUMN SUPPORT ROTATION BUSH
#
063
MPN:
BNT 47475
BOLT
#
064
MPN:
RDI55990
WASHER
#
065
MPN:
RNT 55379
WASHER
#
066
MPN:
BNT. 53968
BOLT
#
067
MPN:
RSN/32690
WASHER
#
068
MPN:
RNT 52314
WASHER
#
069
MPN:
116 GS 67418
SPRING
#
070
MPN:
TVN 51194
Tubovipla Ø 22 protezione molla posizionamento
#
071
MPN:
116/A GS 75814
SUPPORT
#
071
MPN:
117 GS 75981
SUPPORT
#
072
MPN:
109 BP 67415
POMELLO SOILS IEVA COMANDO MANICOTTO D'ARRESTO
#
073
MPN:
117 GS 73193
LEVER
#
074
MPN:
GRN 73203
GRAIN ON THE SPACER WASHER COMMAND SLEEVE
#
075
MPN:
117 GS 73191
Tassello bloccagglo posizionamento volante
#
076
MPN:
117 GS 73195
CAM SPACER FOR STEERING WHEEL POSITION ADJUSTMENT
#
077
MPN:
1,17 GS 73192
EXTERNAL DEATRO CLUTCH DISC FOR STEERING WHEEL POSITIONING
#
078
MPN:
115/A GS 69902
INFERNO CLUTCH DISC FOR STEERING WHEEL POSITIONING
#
079
MPN:
115/A GS 69901
LEFT EXTERNAL CLUTCH DISC STEERING WHEEL POSITIONING
#
080
MPN:
115/A GS 69917
DISTANZIALE PER REGISTRO POSIZIONAMENTO VOLANTE
#
081
MPN:
117 GS 73194
PIVOT
#
082
MPN:
DST 53396
NUT
#
083
MPN:
RAT 61309
WASHER
#
084
MPN:
IN 69908
LFAGUETTA Ø 2.5 X 3.7 X 9.66 CENTREGGFO COMANDO ARREATO PLANTONE
#
085
MPN:
SN 67409
PIN
#
086
MPN:
116 CS 67521
STEERING WHEEL LOCK KNOB TO COLUMN SUPPORT
#
087
MPN:
VNT 6662,2
SCREW
#
088
MPN:
RDI 58543
WASHER
#
089
MPN:
116 GS 70568
GRUPPO COMANDO LOCI A TERGI FINO ALLY 149 VETTURA
#
089
MPN:
116/A GS 76201
GRUPPO COMANDO LOCI A TERGL DALLY 150 VETTURA IN POL
#
090
MPN:
115/A GS 70995
CALOTTA SULLY PARTS SUPERIORS PLANTONE PER FRANCIS A U.S.A.
#
090
MPN:
116 GS 67537
CALOTTA SULLY PARTS SUPERIORS PLANTONE
#
091
MPN:
GS 70768
Ignition Lock Set
#
092
MPN:
116 GS 68789
STEERING LOCK COVER BLOCK
#
093
MPN:
VNT 60196
Vlte a Brugole Ø 5 X 15 flssagglo tasaello
#
094
MPN:
RDI 58544
WASHER
#
095
MPN:
VNT 72491
SCREW
#
096
MPN:
RDI53899
WASHER
#
097
MPN:
FRN 73126
SEALING CLAMP PROTECTIVE CUFF ELASTIC JOINT
