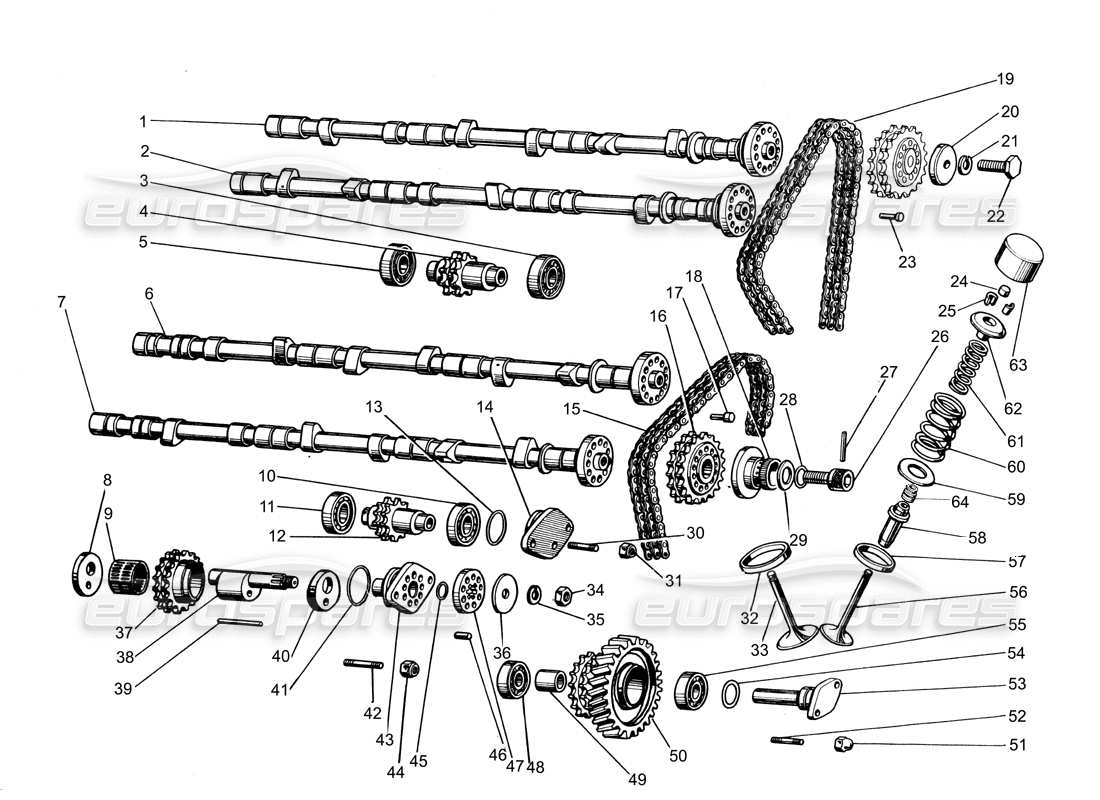

Lamborghini Espada Distribution (to 450) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
001200878
LH EXHAUST CAMSHAFT
from
£1,089.45
from
£1,089.45
#
002
MPN:
001200882
LEFT INLET CAMSHAFT
from
£2,126.67
from
£2,126.67
#
003
MPN:
008522202
BEARING
Fino alla 450
from
£282.37
from
£282.37
#
004
MPN:
001202690
N/A
Fino alla 450
#
005
MPN:
008522202
BEARING
Fino alla 450
from
£282.37
from
£282.37
#
006
MPN:
001200880
RIGHT INLET CAMSHAFT
from
£2,126.67
from
£2,126.67
#
007
MPN:
001200879
RH EXHAUST CAMSHAFT
from
£1,089.45
from
£1,089.45
#
008
MPN:
001200339
TIGHTENER SHIM WASHER
Fino alla 450
from
£22.56
from
£22.56
#
009
MPN:
008523004
BEARING
Fino alla 450
from
£137.92
from
£137.92
#
010
MPN:
008522202
BEARING
Fino alla 450
from
£282.37
from
£282.37
#
011
MPN:
008522202
BEARING
Fino alla 450
from
£282.37
from
£282.37
#
012
MPN:
001202691
CHAIN GUIDE
Fino alla 450
from
£220.55
from
£220.55
#
013
MPN:
008604201
RING 43 MM OR
Fino alla 450
from
£0.79
from
£0.79
#
014
MPN:
001200336
COVER
Fino alla 450
from
£228.01
from
£228.01
#
015
MPN:
001305195
TIMING CHAIN
Supersession
Supersession
#
016
MPN:
001202694
TIMING SPROCKET
from
£793.75
from
£793.75
#
017
MPN:
001201965
LOCATING DOWEL
Fino alla 450
from
£50.41
from
£50.41
#
018
MPN:
001205339
N/A
Fino alla 450
#
019
MPN:
001305195
TIMING CHAIN
Supersession
Supersession
#
020
MPN:
001200348
DOWEL CHECK WASHER
Fino alla 450
from
£10.20
from
£10.20
#
021
MPN:
008411701
SNAP RING 17X30X1.5 DIN137/B
Fino alla 450
from
£1.71
from
£1.71
#
022
MPN:
008101608
SCREW M16X35 UNI 5740/8G
Fino alla 450
from
£10.21
from
£10.21
#
023
MPN:
001201964
DOWEL
Fino alla 450
from
£28.78
from
£28.78
#
024
MPN:
001201072
VALVE CLEARANCE SHIM
Fino alla 450
from
£24.63
from
£24.63
#
025
MPN:
001200233
VALVE RETAINER COTTERS
Fino alla 450
from
£18.44
from
£18.44
#
026
MPN:
008701601
VITE
Fino alla 450
from
£14.98
from
£14.98
#
027
MPN:
008900302
SPINA ELASTICA
Fino alla 450
#
028
MPN:
008601502
ANELLO DI TENUTA
Fino alla 450
from
£1.71
from
£1.71
#
029
MPN:
001605340
RONDELLA SPECIALE
Fino alla 450
from
£20.11
from
£20.11
#
030
MPN:
008300613
STUD M6X14 UNI 5911 8G/Z
Fino alla 450
from
£3.07
from
£3.07
#
031
MPN:
008200605
NUT
Fino alla 450
from
£1.89
from
£1.89
#
032
MPN:
001200232
VALVE RATAINER
Fino alla 450
from
£37.02
from
£37.02
#
033
MPN:
001201774
EXAUST VALVE
from
£74.56
from
£74.56
#
034
MPN:
008201213
12 'UNI 210 8G' NUT (GRUPPO MONTATO DAL MOTORE 30501)
Fino alla 450
from
£3.36
from
£3.36
#
035
MPN:
008411303
SNAP RING 21X13X2.5 UNI 175 1 C72/Z
Fino alla 450
from
£1.96
from
£1.96
#
036
MPN:
001200345
TIGHTENER DOWEL CHECK WASHER
Fino alla 450
from
£47.68
from
£47.68
#
037
MPN:
001204878
CHAIN TIGHTENER GEAR
Fino alla 450
from
£168.72
from
£168.72
#
038
MPN:
001219425
PIVOT
Fino alla 450
from
£137.48
from
£137.48
#
039
MPN:
001200340
STOPPER PIN
Fino alla 450
#
040
MPN:
001200776
TIGHTENER SHIM ADJUSTMENT WASHER
Fino alla 450
from
£36.90
from
£36.90
#
041
MPN:
008603701
OR RING
Fino alla 450
from
£0.54
from
£0.54
#
042
MPN:
008900613
N/A
Fino alla 450
#
043
MPN:
001200342
TIGHTENER ADJUSTMENT FLANGE
Fino alla 450
from
£243.76
from
£243.76
#
044
MPN:
008200605
NUT
Fino alla 450
from
£1.89
from
£1.89
#
045
MPN:
008601702
RING 18 MM OR
Fino alla 450
from
£0.54
from
£0.54
#
046
MPN:
001200343
DISTRIBUTION ADJUSTMENT DOWEL
Fino alla 450
from
£16.75
from
£16.75
#
047
MPN:
001202447
TIGHTENER ADJUSTMENT WASHER
Fino alla 450
#
048
MPN:
008501704
BEARING
Fino alla 450
from
£21.60
from
£21.60
#
049
MPN:
001205400
SPACER
Fino alla 450
from
£152.56
from
£152.56
#
050
MPN:
001204077
CHAIN GEAR
Fino alla 450
from
£920.84
from
£920.84
#
051
MPN:
008200605
NUT
Fino alla 450
from
£1.89
from
£1.89
#
052
MPN:
008300613
STUD M6X14 UNI 5911 8G/Z
Fino alla 450
from
£3.07
from
£3.07
#
053
MPN:
001209447
PIVOT SHAFT
Fino alla 450
from
£437.77
from
£437.77
#
054
MPN:
008601801
RING 19 MM OR
Fino alla 450
from
£7.01
from
£7.01
#
055
MPN:
008501704
BEARING
Fino alla 450
from
£21.60
from
£21.60
#
056
MPN:
001213680
INTAKE VALVES
from
£40.43
from
£40.43
#
057
MPN:
001210285
INTAKE VALVE SEAT
from
£17.47
from
£17.47
#
058
MPN:
001204414
VALVE GUIDE
Fino alla 450
from
£85.00
from
£85.00
#
059
MPN:
001202903
WASHER
Fino alla 450
from
£27.28
from
£27.28
#
060
MPN:
001202083
VALVE OUTER SPRING
from
£44.10
from
£44.10
#
061
MPN:
001201020
INNER SPRING
Supersession
Supersession
#
062
MPN:
001200228
VALVE PLATE
Fino alla 450
from
£131.33
from
£131.33
#
063
MPN:
001202917
CAM FOLLOW
from
£59.76
from
£59.76
#
063
MPN:
001202917/A
COMPLETE SET CAM FOLLOWS
from
£1,569.75
from
£1,569.75
#
064
MPN:
001221434
VALVE STEAM SEAL
from
£18.37
from
£18.37
