lamborghini espada distribution parts diagram

002.2 - distribution

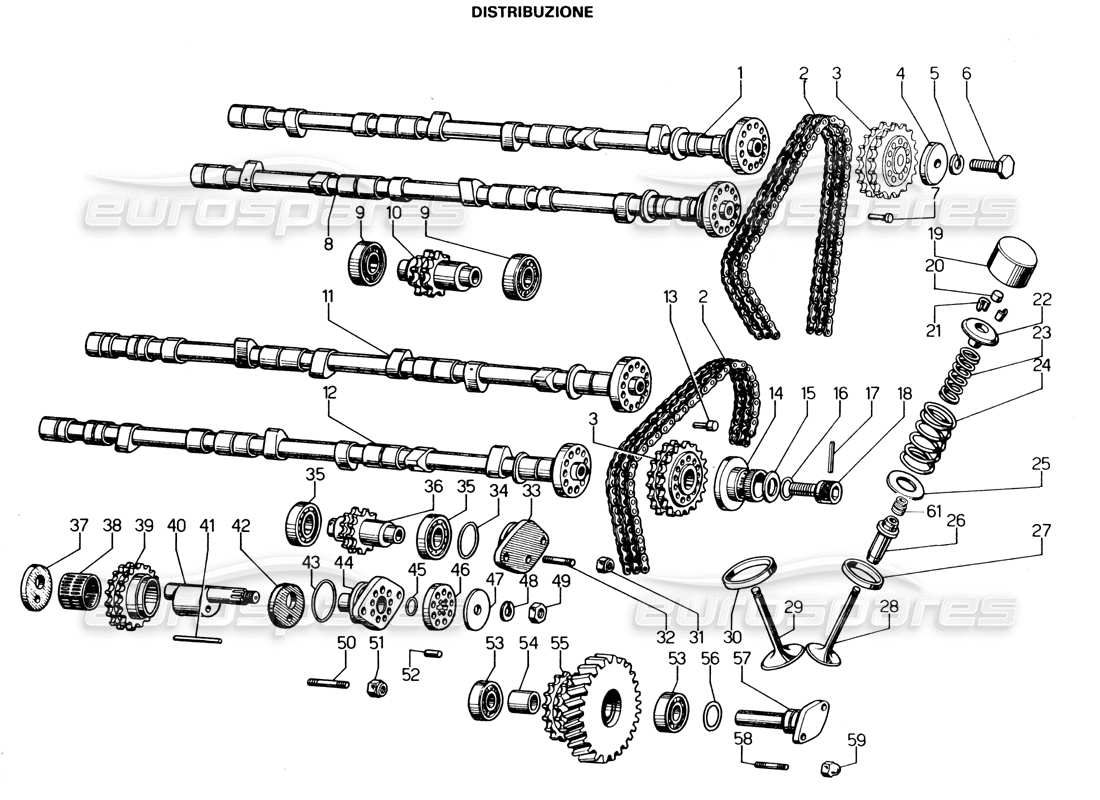

Lamborghini Espada Distribution Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 001200878
LH EXHAUST CAMSHAFT
from £1,089.45
from £1,089.45
# 002
MPN: 001305195
TIMING CHAIN
Supersession
Supersession
# 003
MPN: 001202694
TIMING SPROCKET
from £793.75
from £793.75
# 004
MPN: 001200348
WASHER
from £10.20
from £10.20
# 005
MPN: 008411701
WASHER
from £1.62
from £1.62
# 006
MPN: 008101608
BOLT
from £10.21
from £10.21
# 007
MPN: 001201964
LOCATING DOWEL
from £28.78
from £28.78
# 008
MPN: 001200882
LEFT INLET CAMSHAFT
from £2,126.67
from £2,126.67
# 009
MPN: 008522202
BEARING
from £282.37
from £282.37
# 010
MPN: 001207300
INGRANAGGIO GALOPPINO
from £202.32
from £202.32
# 011
MPN: 001200880
RIGHT INLET CAMSHAFT
from £2,126.67
from £2,126.67
# 012
MPN: 001207711
ASSE A CAMME (DA 0 A 1000)
# 013
MPN: 001201965
LOCATING DOWEL
from £50.41
from £50.41
# 014
MPN: 001605339
PRESA DI FORZA COMANDO SPINTEROGENO
from £116.92
from £116.92
# 015
MPN: 001605340
WASHER
from £20.11
from £20.11
# 016
MPN: 008601502
SEALING RING
from £1.67
from £1.67
# 018
MPN: 008701601
VITA
from £14.98
from £14.98
# 019
MPN: 001202917

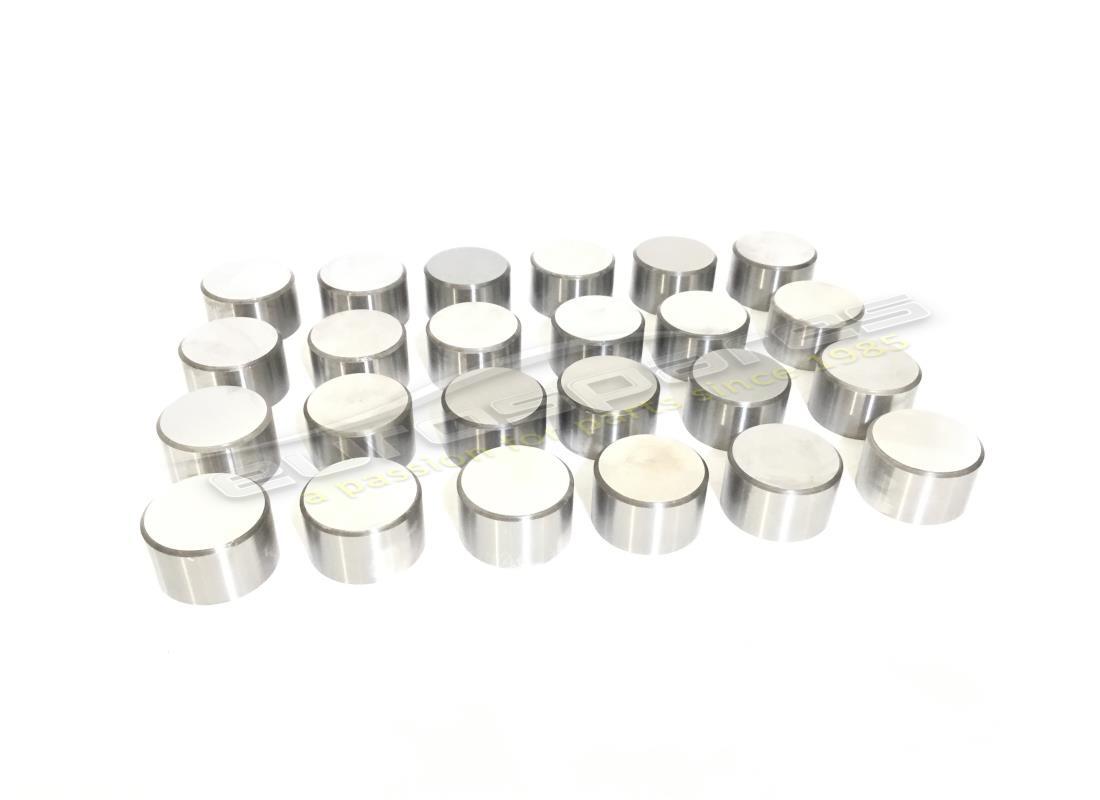

CAM FOLLOW
from £59.76
from £59.76
# 020
MPN: 001201072
SPESSORE GIOCO VALVOLA
from £24.63
from £24.63
# 021
MPN: 001200233
SEMICONO ARRESTO VALVOLA
from £18.44
from £18.44
# 022
MPN: 001200228
PIATTELLO VALVOLA
from £131.33
from £131.33
# 023
MPN: 001201020
INNER SPRING
Supersession
Supersession
# 024
MPN: 001202083
VALVE OUTER SPRING
from £44.10
from £44.10
# 025
MPN: 001202903
WASHER
from £27.28
from £27.28
# 026
MPN: 001204414
VALVE GUIDE
from £85.00
from £85.00
# 027
MPN: 001210285
INTAKE VALVE SEAT
from £17.47
from £17.47
# 028
MPN: 001213680
INTAKE VALVES
from £40.43
from £40.43
# 029
MPN: 001201774
VALVOLA DI SCARICO
38x8x95.5
from £74.56
from £74.56
# 030
MPN: 001200232
SCARICO
from £37.02
from £37.02
# 031
MPN: 008200605
NUT
from £1.84
from £1.84
# 032
MPN: 008300613
THREADED STUD
from £3.07
from £3.07
# 033
MPN: 001200336
COVER
from £228.01
from £228.01
# 034
MPN: 008604201
SEALING RING
from £0.79
from £0.79
# 035
MPN: 008522202
BEARING
from £282.37
from £282.37
# 036
MPN: 001202691
INGRANAGGIO GALOPPINO
from £220.55
from £220.55
# 038
MPN: 008523004
GABBIA A RULLINI
from £137.92
from £137.92
# 039
MPN: 001204878
INGRANAGGIO TEND (DA 0 A 1200)
from £168.72
from £168.72
# 040
MPN: 001219425
PIVOT
from £137.48
from £137.48
# 043
MPN: 008603701
SEALING RING
from £0.53
from £0.53
# 044
MPN: 001200342
REGISTRO TENDITORE
from £243.76
from £243.76
# 045
MPN: 008601702
SEALING RING
from £0.53
from £0.53
# 047
MPN: 001200345
WASHER
from £47.68
from £47.68
# 048
MPN: 008411303
WASHER
from £1.91
from £1.91
# 049
MPN: 008201213
NUT
from £3.36
from £3.36
# 050
MPN: 008300613
THREADED STUD
from £3.07
from £3.07
# 051
MPN: 008200605
NUT
from £1.74
from £1.74
# 052
MPN: 001200343
LOCATING DOWEL
from £16.75
from £16.75
# 053
MPN: 008501704
BEARING
from £21.60
from £21.60
# 054
MPN: 001205400
SPACER
from £152.56
from £152.56
# 055
MPN: 001207360
INGRANAGGIO RIDUTTORE
from £259.40
from £259.40
# 056
MPN: 008601801
SEALING RING
from £7.01
from £7.01
# 057
MPN: 001209447
PIVOT SHAFT
from £437.77
from £437.77
# 058
MPN: 008300613
STUD
from £3.07
from £3.07
# 059
MPN: 008200605
NUT
from £1.74
from £1.74
# 060
MPN: 008101622
BOLT
from £6.43
from £6.43
# 061
MPN: 001221434
VALVE STEAM SEAL
from £18.37
from £18.37
