020 - Exhaust (Da 0 a 325)

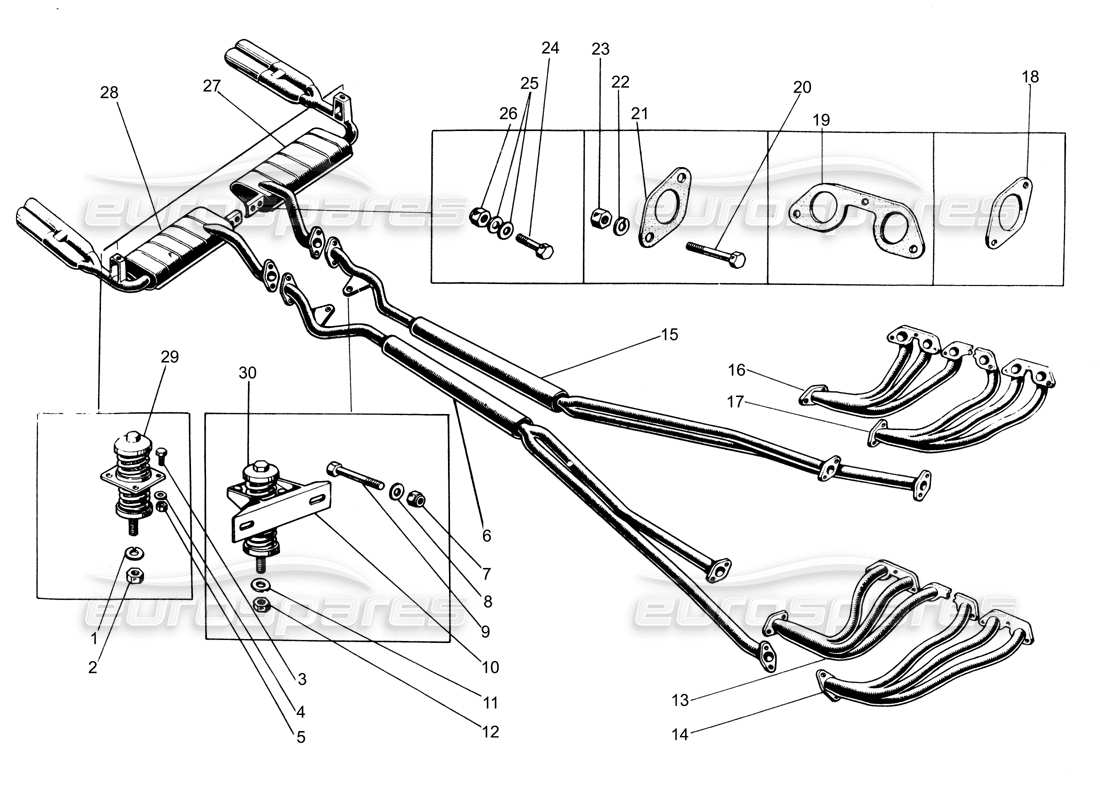

Lamborghini Espada Exhaust (Da 0 a 325) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
008401007
WASHER 21.5X10.4X2 UNI 6592/5S /Z
from
£0.54
from
£0.54
#
002
MPN:
008201008
NUT
from
£0.57
from
£0.57
#
003
MPN:
008100502
BOLT
from
£0.54
from
£0.54
#
004
MPN:
WHT001187
WASHER
from
£0.56
from
£0.56
This part replaces part number 008400502
#
005
MPN:
N0211963
M5 'UNI 7473 ZD' SELF-LOCKIN GNUT
from
£0.53
from
£0.53
#
006
MPN:
004405050
N/A
#
007
MPN:
008200809
M8 SELF-LOCKING NUT
Supersession
Supersession
#
008
MPN:
N90179103
WASHER 18X8,4X2,5
from
£1.06
from
£1.06
This part replaces part number 008400801
#
009
MPN:
008100835
SCREW M8X65 UNI 5737/8G
from
£2.09
from
£2.09
#
010
MPN:
004405055
SUPPORTO VLBRACHOC
from
£78.86
from
£78.86
#
011
MPN:
008401007
WASHER 21.5X10.4X2 UNI 6592/5S /Z
from
£0.54
from
£0.54
#
012
MPN:
008201008
NUT
from
£0.57
from
£0.57
#
013
MPN:
004405047
COLLETTORE POSTERIORE DESTRO
from
£1,500.00
from
£1,500.00
#
014
MPN:
004405045
COLLETTORE ANTERIORE DESTRO
from
£1,500.00
from
£1,500.00
#
015
MPN:
004405051
N/A
#
016
MPN:
004405048
COLLETTORE POSTERLORE SINISTRO
from
£1,500.00
from
£1,500.00
#
017
MPN:
004405046
COLLETTORE ANTERIORE SINISTRO
from
£1,500.00
from
£1,500.00
#
018
MPN:
004401530
EXHAUST GASKET
from
£17.55
from
£17.55
This part replaces part number CM-01530
#
019
MPN:
001101178
DOUBLE EXHAUST GASKET
from
£22.00
from
£22.00
This part replaces part number MT-01178
#
020
MPN:
N01033520
SCREW M8X35
from
£1.06
from
£1.06
#
021
MPN:
004404026
EXHAUST MANIFOLD GASKET
from
£20.72
from
£20.72
This part replaces part number CM-04026
#
022
MPN:
008410806
WASHER
Supersession
Supersession
#
023
MPN:
008200807
M8 'OT.58 UNI 2012'SELF-LOCKINGNUT
from
£14.38
from
£14.38
#
024
MPN:
008100827
SCREW M8X25 UNI 5739/8G/ZG
Supersession
Supersession
#
025
MPN:
N90179103
WASHER 18X8,4X2,5
from
£1.06
from
£1.06
This part replaces part number 008400801
#
026
MPN:
008200804
NUT
from
£0.74
from
£0.74
#
027
MPN:
004405053
MARMITTA POSTERIORE SINISTRA
from
£1,517.45
from
£1,517.45
#
028
MPN:
004405052
MARMITTA POSTERIORE DESTRA
from
£1,517.45
from
£1,517.45
#
029
MPN:
004405143
SUPPORT MOUNT
from
£122.67
from
£122.67
#
030
MPN:
400251393A
EXHAUST SUPPORT MOUNT
from
£151.23
from
£151.23
This part replaces part number 004432031
- and 5 more. Click to view details
