007.2 - WATER PUMP

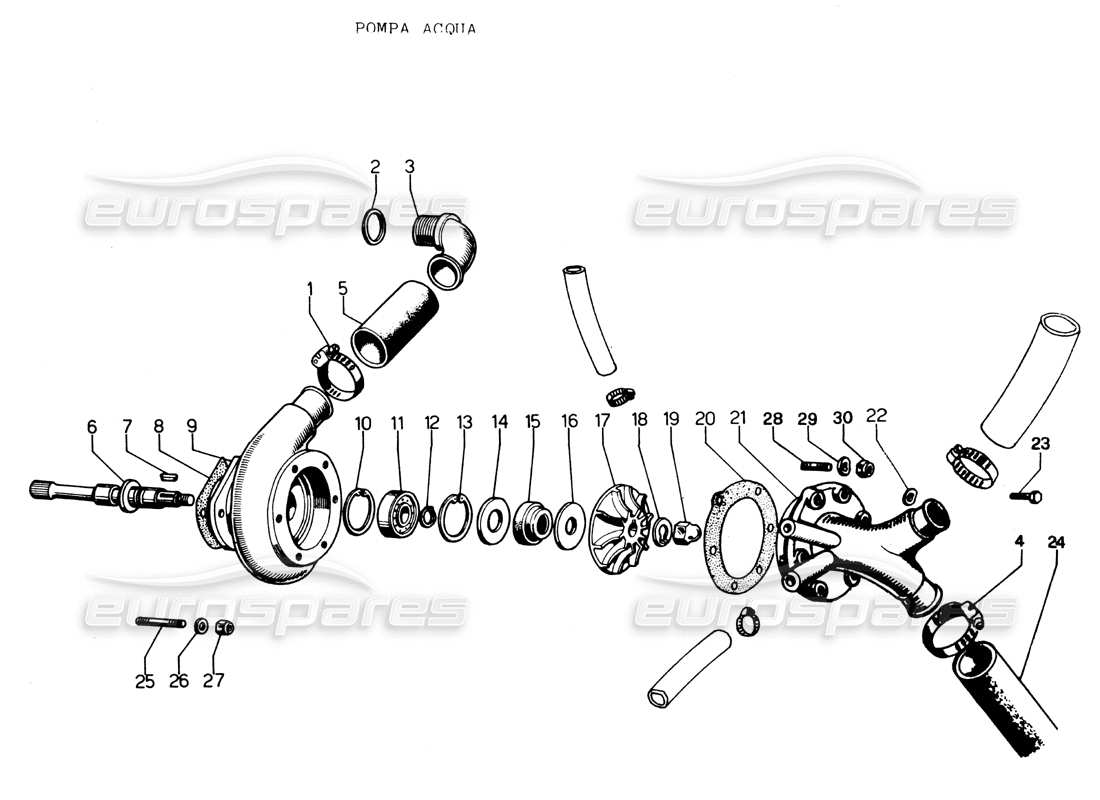

Lamborghini Espada Water pump Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
000
MPN:
LAMWPK01
WATER PUMP REBUILD KIT
#
001
MPN:
008835004
JUBILEE CLIP
from
£6.14
from
£6.14
This part replaces part number 008830201
#
002
MPN:
001701783
GASKET
from
£6.02
from
£6.02
#
003
MPN:
001704506
TUBO ENTRATA ACQUA NEL BASAMENTO
from
£732.35
from
£732.35
#
004
MPN:
008835004
JUBILEE CLIP
from
£6.14
from
£6.14
This part replaces part number 008830201
#
005
MPN:
001701983
SLEEVE
from
£38.78
from
£38.78
#
006
MPN:
001700395
ALBERINO COMA NDO POMPA ACQUA
from
£226.55
from
£226.55
#
007
MPN:
008860401
Key
from
£17.77
from
£17.77
#
008
MPN:
001700391
GASKET
from
£7.38
from
£7.38
#
009
MPN:
001704498
WATER PUMP COVER (2 ALTERNATORI)
from
£231.00
from
£231.00
#
010
MPN:
008574301
SEEGER RING
from
£1.70
from
£1.70
#
011
MPN:
008501705
BEARING
from
£20.96
from
£20.96
#
012
MPN:
008581501
SEEGER RING
from
£0.54
from
£0.54
#
013
MPN:
07M109381
SEEGER RING
from
£1.16
from
£1.16
This part replaces part number 008573501
- and 1 more. Click to view details
#
014
MPN:
001712752
WASHER
from
£20.75
from
£20.75
This part replaces part number 001700397
#
015
MPN:
008611703
WATER PUMP SEAL
from
£149.12
from
£149.12
#
016
MPN:
001712753
WASHER
from
£119.32
from
£119.32
This part replaces part number 001700369
- and 1 more. Click to view details
#
017
MPN:
001712571
IMPELLER
#
018
MPN:
WHT000768
WASHER
from
£1.31
from
£1.31
This part replaces part number 008410806
- and 1 more. Click to view details
#
019
MPN:
008201005
NUT
from
£7.66
from
£7.66
#
020
MPN:
001709225
GASKET
from
£12.32
from
£12.32
#
021
MPN:
001709999
COVER
from
£249.89
from
£249.89
#
022
MPN:
008410602
WASHER
from
£28.09
from
£28.09
#
023
MPN:
008100617
BOLT
from
£3.65
from
£3.65
#
024
MPN:
001707912
COVER
#
024
MPN:
001708469
MANICOTTO (DA 651 A 1000)
from
£18.91
from
£18.91
#
025
MPN:
008300608
STUD
from
£0.66
from
£0.66
#
026
MPN:
008400606
WASHER
Supersession
Supersession
#
027
MPN:
008200606
NUT
Supersession
Supersession
#
028
MPN:
008300838
THREADED STUD
from
£8.25
from
£8.25
#
029
MPN:
WHT001514
WASHER
from
£15.09
from
£15.09
This part replaces part number 008410805
#
030
MPN:
008200806
NUT
Supersession
Supersession
