017 - Chassis Mountings ( 0 to 750)

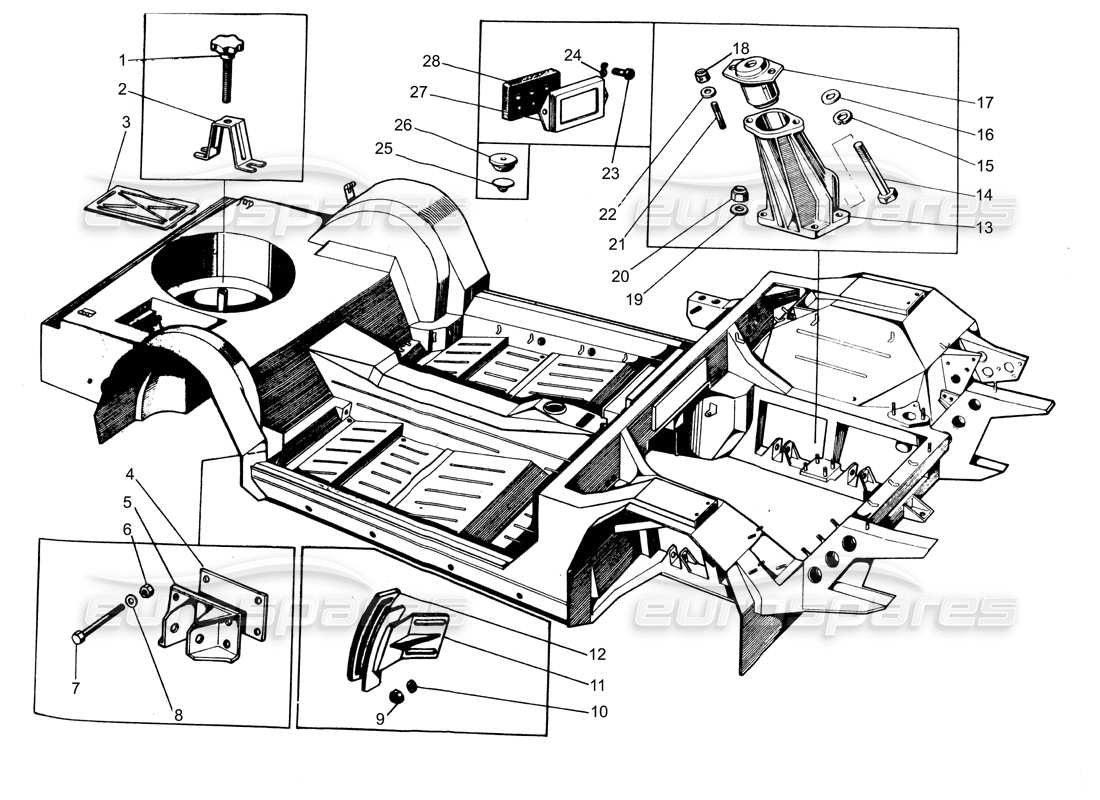

Lamborghini Espada Chassis Mountings ( 0 to 750) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
004805161
N/A
#
002
MPN:
004805160
N/A
#
003
MPN:
001605595
COPERCHLO BATTERIS
#
004
MPN:
004104693
SPESSORE DI REGISTRO
from
£18.12
from
£18.12
#
005
MPN:
004104694
REAR SUSPENSION FRONT LOWER CONNECTION
from
£239.61
from
£239.61
#
006
MPN:
008200904
NUT
from
£4.73
from
£4.73
#
007
MPN:
008100908
BOLT
from
£8.17
from
£8.17
#
008
MPN:
008400901
WASHER
from
£0.54
from
£0.54
#
009
MPN:
008200606
BUSH
Supersession
Supersession
#
010
MPN:
WHT002961
WASHER
from
£0.54
from
£0.54
This part replaces part number 008400607
#
011
MPN:
006102094
APPOGGIO PIEDE SINISTRO
from
£26.11
from
£26.11
#
012
MPN:
004501213
N/A
#
013
MPN:
002404447
SUPPORTO MOTORE
from
£378.08
from
£378.08
#
014
MPN:
008101412
SCREW M.14X90 UNI 5737/10K
from
£13.69
from
£13.69
#
015
MPN:
008411502
SNAP RING 24X15X3 UNI 1751 C72 /Z
from
£1.62
from
£1.62
#
016
MPN:
008401413
FLAT WASHER 14.3 UNI1750/Z
from
£0.64
from
£0.64
#
017
MPN:
008921407
SILENTBLOC
from
£164.75
from
£164.75
#
018
MPN:
008200804
NUT
from
£0.74
from
£0.74
#
019
MPN:
008401007
WASHER 21.5X10.4X2 UNI 6592/5S /Z
from
£0.54
from
£0.54
#
020
MPN:
008201008
NUT
from
£0.57
from
£0.57
#
021
MPN:
008300822
STUD M8X18 UNI 5911 8G Z
Supersession
Supersession
#
022
MPN:
N90179103
WASHER 18X8,4X2,5
from
£1.06
from
£1.06
This part replaces part number 008400801
#
023
MPN:
008700611
SCREW UNI 5931 6X14
from
£0.54
from
£0.54
#
024
MPN:
008410602
LOCK WASHER
from
£28.85
from
£28.85
#
025
MPN:
008930801
PICKLING HOLE PLUG
from
£1.71
from
£1.71
#
026
MPN:
008932001
TAPPO CHIUSURA FORA DECAPPAGGLO
from
£4.73
from
£4.73
#
027
MPN:
004204677
CONTENITORE
#
028
MPN:
004204675
GOMMA DI PROTEZIONE TUBA FRENL
from
£14.19
from
£14.19
