021.3 - Air-Con (da <750)

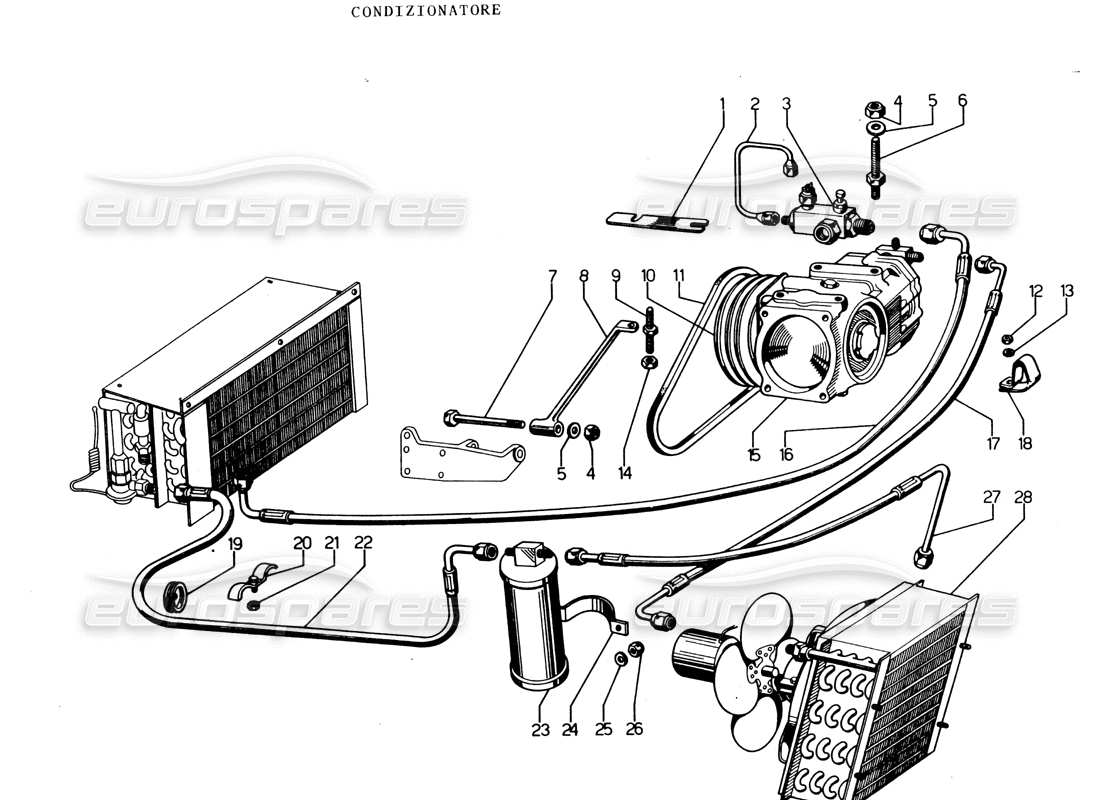

Lamborghini Espada Air-Con (da <750) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
004504637
PLATE
from
£5.02
from
£5.02
#
002
MPN:
004505585
TUBO DALLA VALVOLA ISOBARICA AL COMPRESSORE
from
£37.48
from
£37.48
#
003
MPN:
004510015
VALVOLA ISOBARICA
from
£125.00
from
£125.00
#
004
MPN:
008201008
NUT
from
£0.55
from
£0.55
#
005
MPN:
008401006
WASHER
from
£0.53
from
£0.53
#
006
MPN:
004504533
COLONNETTA SUPPORTO COMPRESSORE
from
£53.73
from
£53.73
#
007
MPN:
008101001
BOLT
from
£8.17
from
£8.17
#
008
MPN:
004505677
PUNTONE SUPPORTO COMPRESSORE
from
£28.23
from
£28.23
#
009
MPN:
004505681
REGISTRO PER PUNTONE
from
£19.02
from
£19.02
#
010
MPN:
004505446
GIUNTO ELETTROMAGNETICO COMPLETO
#
011
MPN:
004504532
CINGHIA COMANDO COMPRESSORE
from
£45.15
from
£45.15
#
012
MPN:
N01100412
NUT
from
£0.87
from
£0.87
#
013
MPN:
008410403
WASHER
from
£4.11
from
£4.11
#
014
MPN:
008201011
NUT
from
£11.53
from
£11.53
#
015
MPN:
004511440
COMPRESSORE
from
£2,218.50
from
£2,218.50
#
016
MPN:
004506865
TUBO (DA 176 A 750)
#
017
MPN:
004507577
TUBO DAL COMPRESSORE AT CONDENSATORE
#
018
MPN:
004507529
JUBILEE CLIP
#
019
MPN:
008611002
RUBBER GROMMET
from
£13.87
from
£13.87
#
020
MPN:
004505977
JUBILEE CLIP
from
£9.52
from
£9.52
#
021
MPN:
N0211963
NUT
from
£0.53
from
£0.53
#
022
MPN:
004507578
TUBO (DA 451 A 750)
from
£69.09
from
£69.09
#
023
MPN:
004505322/a
DRYER BOTTLE
use : 004535411 - 004537126 - 004537127
#
024
MPN:
004505600
JUBILEE CLIP
from
£3.88
from
£3.88
#
025
MPN:
008400606
WASHER
Supersession
Supersession
#
026
MPN:
008200606
NUT
Supersession
Supersession
#
027
MPN:
004507579
TUBO DAL FILTRO AL CONDENSATORE
#
028
MPN:
004505247
CONDENSOR
from
£894.91
from
£894.91
#
029
MPN:
004508798
A/C. MOTOR WITH BLADE
