lamborghini diablo sv (1997) pedals (valid for rh d. - march 1997) parts diagram

74.42.01.00 - Pedals (Valid for RH D. - March 1997)

Lamborghini Diablo SV (1997) Pedals (Valid for R.H.D. - March 1997) Parts Diagram

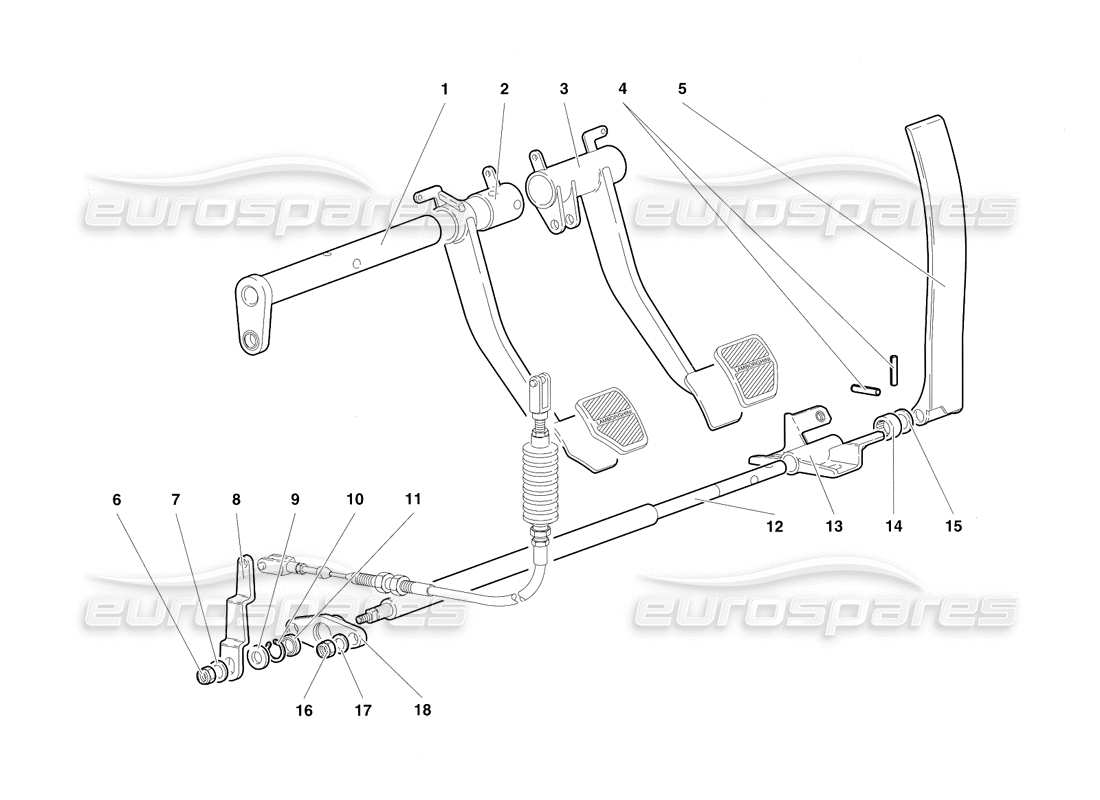

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 004229950
SHAFT
(Valid for RH D. - March 1997) ALBERO
# 002
MPN: 004235589
PEDAL
(Valid for RH D. - March 1997) PEDALE FRIZIONE
from £245.42
from £245.42
# 003
MPN: 004232778
PEDAL
(Valid for RH D. - March 1997) PEDALE FRENO
from £245.42
from £245.42
# 004
MPN: 008900401
PIN
(Valid for RH D. - March 1997) SPINA
from £0.53
from £0.53
# 005
MPN: 004232294
PEDAL
(Valid for RH D. - March 1997) PEDALE ACCELERATORE
from £152.15
from £152.15
# 006
MPN: 008200804
NUT
(Valid for RH D. - March 1997) DADO
from £0.74
from £0.74
# 007
MPN: 008400816
WASHER
(Valid for RH D. - March 1997) RONDELLA
Supersession
Supersession
# 008
MPN: 004238042
LEVER
(Valid for RH D. - March 1997) LEVA
from £21.44
from £21.44
# 009
MPN: 004232286
SPACER
(Valid for RH D. - March 1997) DISTANZIALE
from £10.12
from £10.12
# 010
MPN: 008572202
RETAINER RING
(Valid for RH D. - March 1997) ANELLO RITEGNO
from £0.75
from £0.75
# 011
MPN: 004232299
JOINT
(Valid for RH D. - March 1997) SNODO
from £23.88
from £23.88
# 012
MPN: 004232298
SHAFT
(Valid for RH D. - March 1997) ALBERO
from £312.59
from £312.59
# 013
MPN: 004232827
SUPPORT
(Valid for RH D. - March 1997) SUPPORTO
from £79.94
from £79.94
# 014
MPN: 008521206
BEARING
(Valid for RH D. - March 1997) CUSCINETTO
from £9.66
from £9.66
# 015
MPN: 008401215
WASHER
(Valid for RH D. - March 1997) RONDELLA
from £7.26
from £7.26
# 016
MPN: N02214812
NUT
(Valid for RH D. - March 1997) DADO
from £1.10
from £1.10
This part replaces part number 008200612
# 017
MPN: 008400606
WASHER
(Valid for RH D. - March 1997) RONDELLA
Supersession
Supersession
# 018
MPN: 004232257
SUPPORT
(Valid for RH D. - March 1997) SUPPORTO
from £216.40
from £216.40
