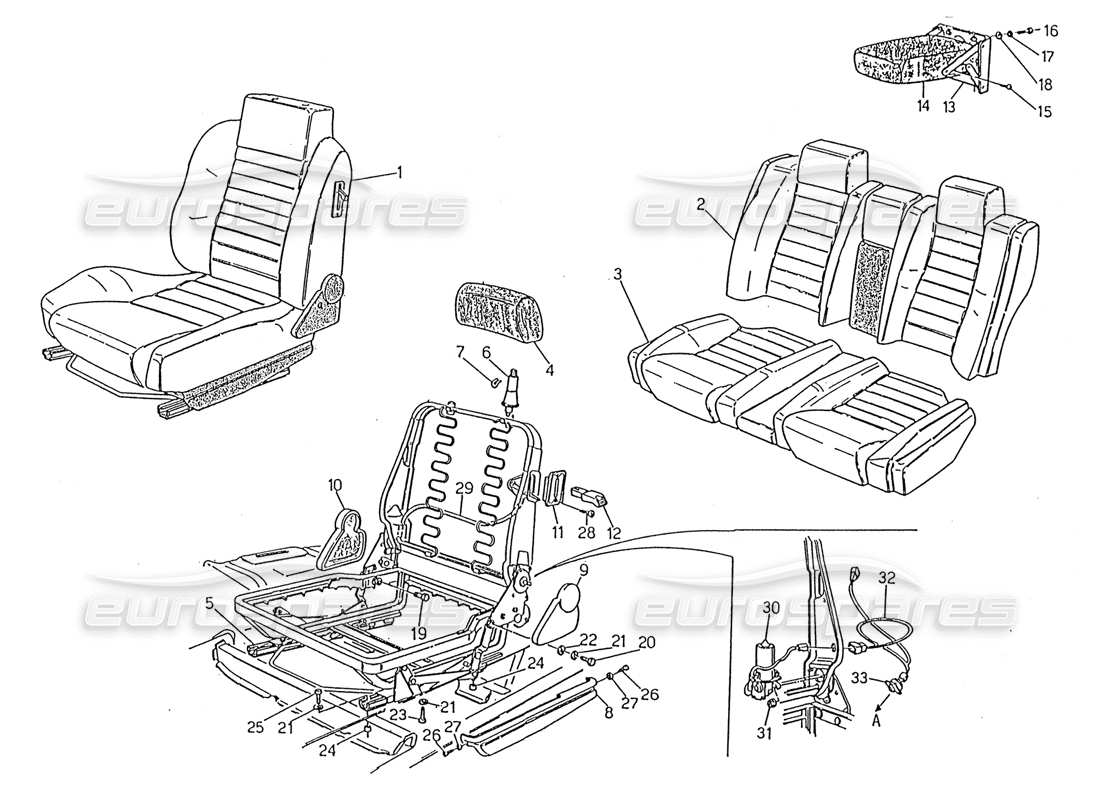

065 - Front and Rear Seats

Maserati 2.24v Front and Rear Seats Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Price
                                                                    # 001
                                                                    MPN: 316953189
                                                                    LH FRONT SET (GREY LEATHER AND GREY ALCANTARA)
                                                                    from £762.80
                                                                    from £762.80
                                                                    # 001
                                                                    MPN: 316953190
                                                                    RH FRONT SET (GREY LEATHER AND GREY ALCANTARA)
                                                                    from £639.71
                                                                    from £639.71
                                                                    # 001
                                                                    MPN: 316953193
                                                                    LH FRONT SET (AVIO PELT AND LIGHT BLUE ALCANTARA)
                                                                    # 001
                                                                    MPN: 316953194
                                                                    RH FRONT SET (AVIO PELT AND LIGHT BLUE ALCANTARA)
                                                                    # 001
                                                                    MPN: 316953195
                                                                    LH FRONT SET (BLACK PELT AND GREY ALCANTARA)
                                                                    from £669.23
                                                                    from £669.23
                                                                    # 001
                                                                    MPN: 316953196
                                                                    RH FRONT SET (BLACK PELT AND GREY ALCANTARA)
                                                                    from £818.39
                                                                    from £818.39
                                                                    # 002
                                                                    MPN: 316953255
                                                                    REAR SEAT ARMREST (GREY PELT AND GREY ALCANTARA)
                                                                    from £570.65
                                                                    from £570.65
                                                                    # 002
                                                                    MPN: 316953259
                                                                    REAR SEAT ARMREST (AVIO PELT AND LIGHT BLUE ALCANTARA)
                                                                    # 002
                                                                    MPN: 316953265
                                                                    REAR SEAT ARMREST (BLACK PELT AND GREY ALCANTARA)
                                                                    from £566.42
                                                                    from £566.42
                                                                    # 003
                                                                    MPN: 316953254
                                                                    REAR SEAT CUSHION (LIGHT GREY PELT AND GREY ALCANTARA)
                                                                    from £387.74
                                                                    from £387.74
                                                                    # 003
                                                                    MPN: 316953258
                                                                    REAR SEAT CUSHION (AVIO PELT AND LIGHT BLUE ALCANTARA)
                                                                    # 003
                                                                    MPN: 316953264
                                                                    REAR SEAT CUSHION (BLACK PELT AND GREY ALCANTARA)
                                                                    from £385.24
                                                                    from £385.24
                                                                    # 004
                                                                    MPN: 326956153
                                                                    HEADREST (LIGHT GREY PELT)
                                                                    from £92.63
                                                                    from £92.63
                                                                    # 004
                                                                    MPN: 326956163
                                                                    HEADREST (BLACK PELT)
                                                                    from £81.59
                                                                    from £81.59
                                                                    # 004
                                                                    MPN: 326956173
                                                                    HEADREST (AVIO PELT)
                                                                    from £81.59
                                                                    from £81.59
                                                                    # 005
                                                                    MPN: 316930009
                                                                    LH /RH FRONT SEAT FEED
                                                                    from £395.30
                                                                    from £395.30
                                                                    # 006
                                                                    MPN: 326956154
                                                                    SHAFT JOINT (LIGHT GREY PELT)
                                                                    from £2.30
                                                                    from £2.30
                                                                    # 006
                                                                    MPN: 326956164
                                                                    SHAFT JOINT (BLACK PELT)
                                                                    from £2.30
                                                                    from £2.30
                                                                    # 006
                                                                    MPN: 326956174
                                                                    SHAFT JOINT (AVIO PELT)
                                                                    # 007
                                                                    MPN: 30691352
                                                                    SPRING
                                                                    from £1.01
                                                                    from £1.01
                                                                    # 008
                                                                    MPN: 316953439
                                                                    LH DEVICE FINISHER (ANTRACITE COL.)
                                                                    from £4.55
                                                                    from £4.55
                                                                    # 008
                                                                    MPN: 316953440
                                                                    RH DEVICE FINISHER (ANTRACITE COL.)
                                                                    from £1.66
                                                                    from £1.66
                                                                    # 009
                                                                    MPN: 316953446
                                                                    LH FRONT FINISHER (ANTRACITE COL.)
                                                                    Supersession
                                                                    Supersession
                                                                    This part replaces part number 316920443
                                                                    # 010
                                                                    MPN: 316953445
                                                                    RH FRONT FINISHER (ANTRACITE COL.)
                                                                    from £2.31
                                                                    from £2.31
                                                                    This part replaces part number 316920444 - and 1 more. Click to view details
                                                                    # 011
                                                                    MPN: 566905531
                                                                    FINISHER TAB (BADGE) (BLACK COL.)
                                                                    from £0.78
                                                                    from £0.78
                                                                    # 012
                                                                    MPN: 53696532
                                                                    KNOB (BLACK COL.)
                                                                    from £1.25
                                                                    from £1.25
                                                                    # 013
                                                                    MPN: 316920221
                                                                    ARMREST BRACKET
                                                                    from £11.74
                                                                    from £11.74
                                                                    # 014
                                                                    MPN: 316953256
                                                                    ARMREST (LIGHT GREY ALCANTARA)
                                                                    # 014
                                                                    MPN: 316953260
                                                                    ARMREST (DARK LIGHT BLUE ALCANTARA)
                                                                    # 014
                                                                    MPN: 316953266
                                                                    ARMREST (DARK GREY ALCANTARA)
                                                                    # 015
                                                                    MPN: 113104014
                                                                    SCREW
                                                                    # 016
                                                                    MPN: 112806016
                                                                    SCREW
                                                                    # 017
                                                                    MPN: 135600060
                                                                    SPRING WASHER
                                                                    from £0.79
                                                                    from £0.79
                                                                    # 018
                                                                    MPN: 163030060
                                                                    PLANE WASHER
                                                                    from £1.11
                                                                    from £1.11
                                                                    # 019
                                                                    MPN: 316920324
                                                                    PIN
                                                                    # 024
                                                                    MPN: 153691357
                                                                    SPACER (10 THICKNESS)
                                                                    # 024
                                                                    MPN: 316320334
                                                                    SPACER (4,5 THICKNESS)
                                                                    from £1.19
                                                                    from £1.19
                                                                    # 027
                                                                    MPN: 136200037
                                                                    PLANE WASHER
                                                                    # 029
                                                                    MPN: 316920025
                                                                    CABLE, ASSY
                                                                    from £14.06
                                                                    from £14.06
                                                                    # 030
                                                                    MPN: 313321190
                                                                    SQUAB ROTATION MOTOR
                                                                    Supersession
                                                                    Supersession
                                                                    # 031
                                                                    MPN: 122700050
                                                                    MOTOR FIXING NUT
                                                                    # 032
                                                                    MPN: 313021134
                                                                    MOTOR WIRING HARNESS
                                                                    from £8.79
                                                                    from £8.79
                                                                    # 033
                                                                    MPN: 323350130
                                                                    SWITCH
                                                                    from £9.17
                                                                    from £9.17
                                                                    This part replaces part number 330915700
                                                                    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
