01.40.1 - intake manifold and throttle body

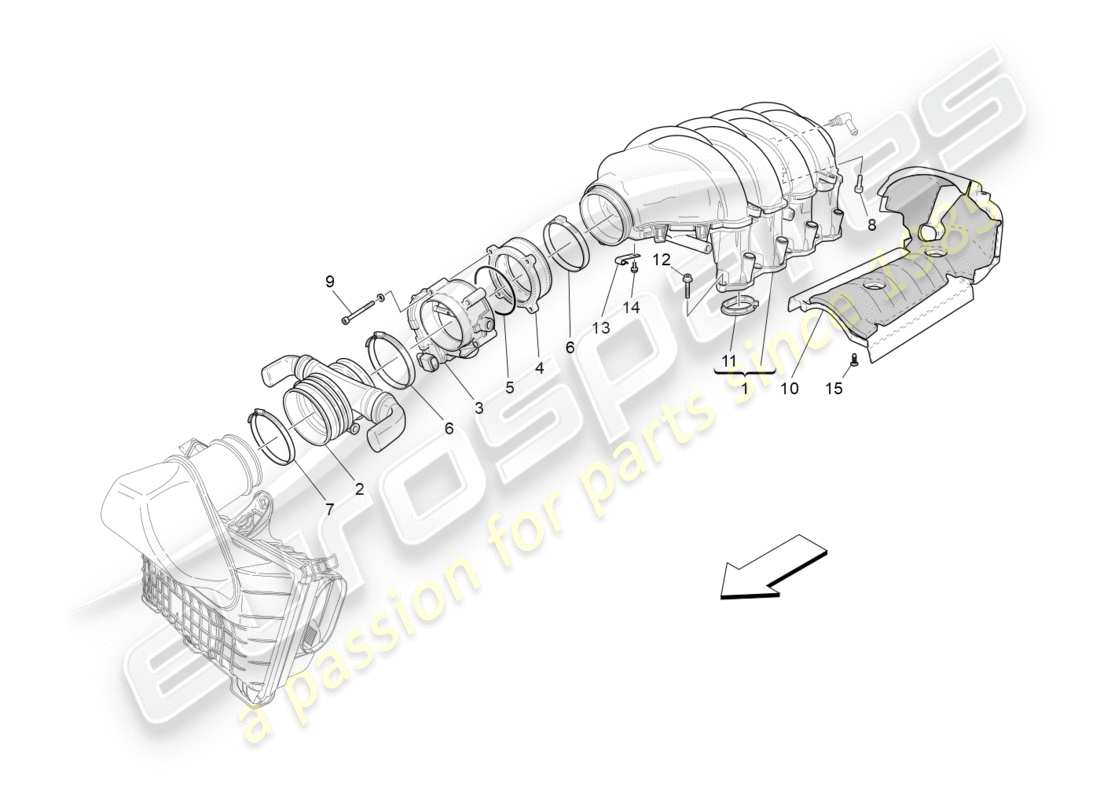

Maserati GranTurismo (2010) INTAKE MANIFOLD AND THROTTLE BODY Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
231732
INTAKE MANIFOLD #IF STOCK =0, PLEASE ORDER 252163 (NOT AVAILABLE FROM ENGINE SERIAL NUMBER 150297)#
Valid from engine: 0 - 150296.
Supersession
Supersession
This part replaces part number 224758
#
001
MPN:
252163
INTAKE MANIFOLD
from
£563.28
from
£563.28
This part replaces part number 231732
#
002
MPN:
215889
SLEEVE
from
£70.32
from
£70.32
#
003
MPN:
331005
THROTTLE BODY
from
£216.74
from
£216.74
#
004
MPN:
240262
SPACER
from
£61.82
from
£61.82
This part replaces part number 195206
#
005
MPN:
150302
O.R. GASKET #VALID FOR CARS WITH SPACER (POS. 4) CODE 195206#
from
£1.66
from
£1.66
#
006
MPN:
190151
CLAMP
from
£2.07
from
£2.07
#
007
MPN:
274889
CLAMP
from
£6.81
from
£6.81
This part replaces part number 233242
#
008
MPN:
14306224
SCREW #VALID FOR CARS WITH SUCTION MANIFOLD (POS. 1) CODE 231732#
Valid from engine: 0 - 150296.
from
£0.53
from
£0.53
#
009
MPN:
231624
SCREW [M6X45]
from
£0.53
from
£0.53
#
010
MPN:
224757
SOUNDPROOFING ELEMENT #VALID FOR CARS WITH SUCTION MANIFOLD (POS. 1) CODE 231732 - IF STOCK =0, PLEASE ORDER 252163 (NOT AVAILABLE FROM ENGINE SERIAL NUMBER 150297)#
Valid from engine: 0 - 150296.
from
£152.09
from
£152.09
#
011
MPN:
203134
GASKET #VALID FOR CARS WITH SUCTION MANIFOLD (POS. 1) CODE 231732 - NO LONGER AVAILABLE, PLEASE ORDER COMPLETE AIR-BOX 252163. FOR THE NEXT TIME, OK TO ORDER 255738#
Valid from engine: 0 - 150296.
Supersession
Supersession
#
011
MPN:
255738
GASKET #VALID FOR CARS WITH SUCTION MANIFOLD (POS. 1) CODE 252163 - FOR ENGINE WITH SERIAL NUMBER<150297, ORDER ONLY IF CPL AIR-BOX WAS REPLACED WITH 252163. IF NOT, FOR THE FIRST REPLACE PLEASE ORDER CPL AIR-BOX 252163#
Valid from engine: 150297.
from
£9.66
from
£9.66
This part replaces part number 203134
#
012
MPN:
242177
SCREW
from
£0.47
from
£0.47
#
013
MPN:
203130
CLIP #VALID FOR CARS WITH SUCTION MANIFOLD (POS. 1) CODE 231732#
Valid from engine: 0 - 150296.
from
£4.63
from
£4.63
#
013
MPN:
255745
CLIP #VALID FOR CARS WITH SUCTION MANIFOLD (POS. 1) CODE 252163#
Valid from engine: 150297.
from
£2.32
from
£2.32
#
014
MPN:
203133
SCREW #VALID FOR CARS WITH SUCTION MANIFOLD (POS. 1) CODE 231732#
Valid from engine: 0 - 150296.
from
£4.88
from
£4.88
#
014
MPN:
255746
SCREW #VALID FOR CARS WITH SUCTION MANIFOLD (POS. 1) CODE 252163#
Valid from engine: 150297.
from
£1.55
from
£1.55
#
015
MPN:
255737
PIN #VALID FOR CARS WITH SUCTION MANIFOLD (POS. 1) CODE 231732#
Valid from engine: 0 - 150296.
from
£1.23
from
£1.23
