maserati qtp v8 (1998) electrical system: boot-doors-passanger compartment (lhd) parts diagram

059GS - Electrical System: Boot-Doors-Passanger Compartment (LHD)

Maserati QTP V8 (1998) Electrical System: Boot-Doors-Passanger Compartment (LHD) Parts Diagram

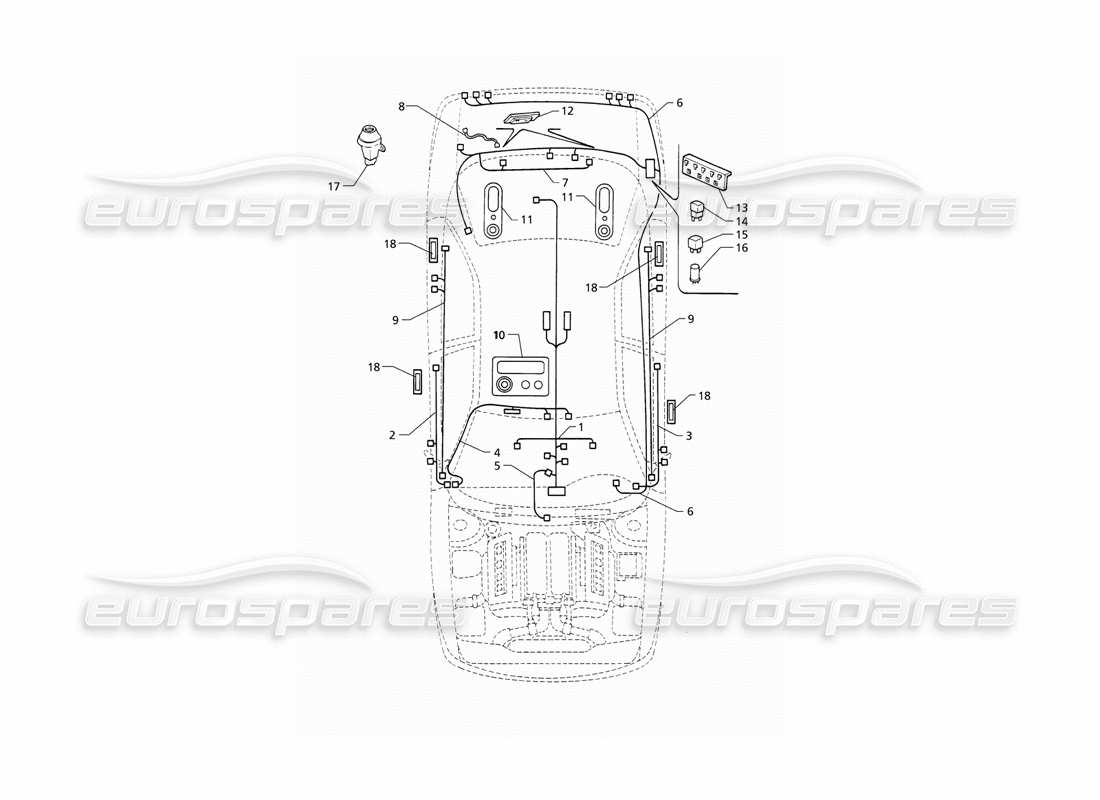

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 373030109
CONSOLE WIRING
from £100.94
from £100.94
# 002
MPN: 373001110
PASSENGER DOOR WIRING
- Post-modification with serial number to: 183-M.T. LEFT H.D. - 199-A.T. LEFT H.D.
from £246.49
from £246.49
# 002
MPN: 373030110
PASSENGER DOOR WIRING
- Pre-modification
from £135.57
from £135.57
# 003
MPN: 373001111
DRIVER'S DOOR WIRING
- Post-modification with serial number to: 183-M.T. LEFT H.D. - 199-A.T. LEFT H.D.
from £114.38
from £114.38
# 003
MPN: 373030111
DRIVER'S DOOR WIRING
- Pre-modification
from £135.57
from £135.57
# 005
MPN: 363006122
REVERSE AND STARTUP WIRING
- Valid for A.T. version
from £5.59
from £5.59
# 005
MPN: 373000122
REVERSE AND STARTUP WIRING
- Valid for M.T. version
from £6.14
from £6.14
# 006
MPN: 373030108
REAR WIRING
# 007
MPN: 373000114
BOOT LIGHT WIRING
from £0.48
from £0.48
# 008
MPN: 53301127
HEATED REAR WINDOW CABLE
from £0.88
from £0.88
# 009
MPN: 373001113
REAR DOOR WIRING
- Post-modification with serial number to: 183-M.T. LEFT H.D. - 199-A.T. LEFT H.D.
from £51.90
from £51.90
# 009
MPN: 373030113
REAR DOOR WIRING
- Pre-modification
from £246.49
from £246.49
# 010
MPN: 373100117
PASSENGER COMP. FRONT CEILING LAMP
from £52.50
from £52.50
# 011
MPN: 373100118
PASSENGER COMP. REAR CEILING LAMP
from £24.46
from £24.46
# 012
MPN: 393150120
BOOT LIGHT
from £7.67
from £7.67
# 013
MPN: 373000131
RELAY SUPPORT
from £8.19
from £8.19
# 014
MPN: 313320134
BOSCH RELAY
from £16.89
from £16.89
This part replaces part number 184101
# 015
MPN: 313320136
DIODE BRIDGE
from £6.38
from £6.38
# 016
MPN: 373300113
LIGHTS CONTROL
from £113.25
from £113.25
# 017
MPN: 373300135
FUEL CUT-OFF SWITCH
from £7.43
from £7.43
# 018
MPN: 373130217
OPEN DOOR SILL LIGHTS
from £3.01
from £3.01
# 019
MPN: 373308162
GEAR ENGAGE SIGN. RELAY
- Valid for A.T. version
from £6.68
from £6.68
# 020
MPN: 373001175
MIRROR ADAPTER
- Post-modification with serial number to: 183-M.T. LEFT H.D. - 199-A.T. LEFT H.D.
from £13.54
from £13.54
