maserati qtp v6 evoluzione elec. system: dashboard and battery parts diagram

059.1 - Elec. System: Dashboard and Battery

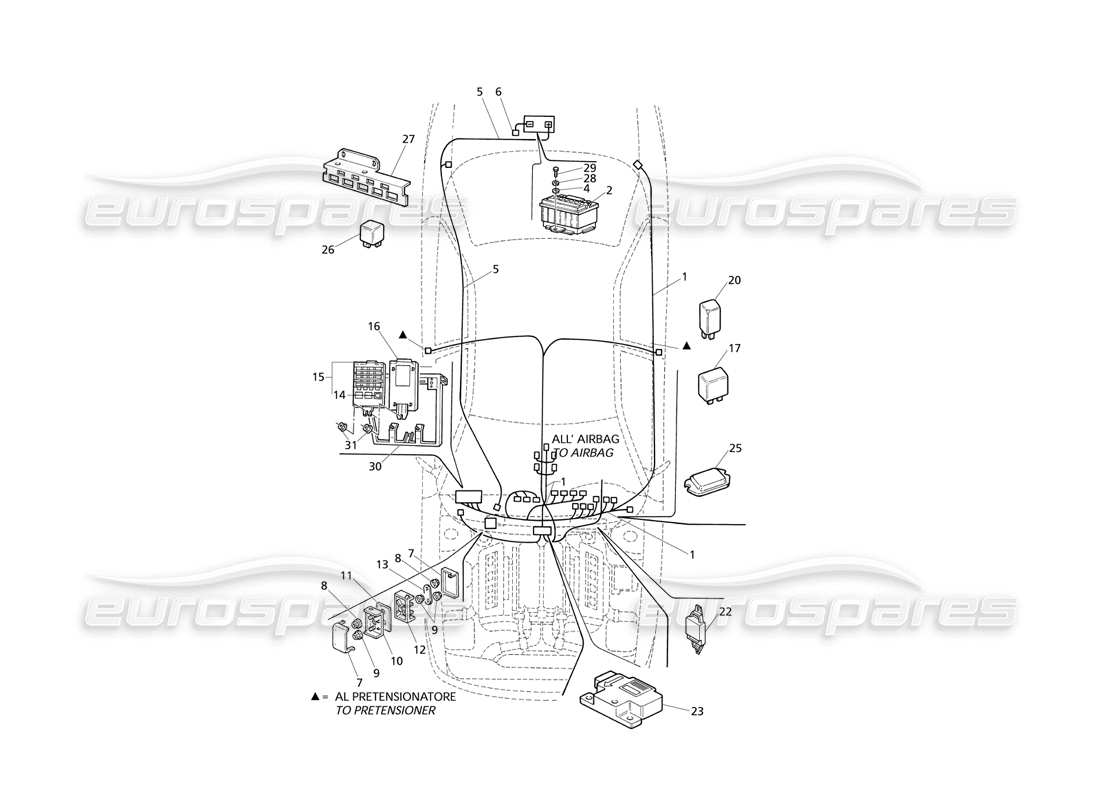

Maserati QTP V6 Evoluzione Elec. System: Dashboard and Battery Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 373080107
DOUBLE AIRBAG DASHBOARD WIRING
from £506.22
from £506.22
# 002
MPN: 980138304
Battery
Supersession
Supersession
This part replaces part number 980138592
# 003
MPN: 373030102
RELAY / FUSE SUPPORT
from £39.74
from £39.74
# 004
MPN: 163020080
WASHER
from £1.08
from £1.08
# 005
MPN: 373080149
BATTERY POSITIVE CABLE
from £47.70
from £47.70
# 006
MPN: 373080150
BATTERY NEGATIVE CABLE
from £86.73
from £86.73
# 007
MPN: 393050340
COVER
Supersession
Supersession
# 008
MPN: 14084417
NUT
from £1.18
from £1.18
# 009
MPN: 14084217
NUT
Supersession
Supersession
# 010
MPN: 393050342
BODY WITH COUPLINGS
from £10.06
from £10.06
# 011
MPN: 393050343
GASKET
from £1.55
from £1.55
# 012
MPN: 393050341
INSULATING BODY
from £2.14
from £2.14
# 013
MPN: 393050344
CONNECTOR
from £1.78
from £1.78
# 014
MPN: 7606542
RELAY 12V 50A (BLACK)
from £5.27
from £5.27
This part replaces part number 373330188
# 015
MPN: 46467695
FUSE CONTROL UNIT
from £63.46
from £63.46
# 016
MPN: 373380113
LIGHTS CONTR. DEVICE
from £85.14
from £85.14
# 017
MPN: 373330193
DOOR LOCK CONTROL UNIT
from £41.49
from £41.49
# 018
MPN: 373000124
HEAT PROTECTION
from £7.12
from £7.12
# 019
MPN: 322903900
EXCHANGE RELAY
from £3.84
from £3.84
# 020
MPN: 373380114
INTERMITTANCE
from £14.73
from £14.73
# 021
MPN: 373330139
RELAY
from £4.02
from £4.02
# 022
MPN: 373307129
INSIDE LIGHTS TIMER
Supersession
Supersession
# 023
MPN: 373301167
AIRBAG CONTROL UNIT (NEW CONNECTOR)
from £269.18
from £269.18
# 024
MPN: 373001158
AIRBAG WIRING (NEW CONNECTOR)
from £178.68
from £178.68
# 025
MPN: 373330151
ELECTRIC WINDOWS CONTROL UNIT
from £51.62
from £51.62
# 026
MPN: 373307134
RELAY 12V 30A (YELLOW)
Supersession
Supersession
# 027
MPN: 372380504
BRACKET
from £26.04
from £26.04
# 028
MPN: 10571779
SPRING WASHER
from £0.47
from £0.47
# 029
MPN: 16043821
SCREW
from £0.71
from £0.71
# 030
MPN: 372380489
BRACKET
from £76.27
from £76.27
# 031
MPN: 13831811
FLANGED NUT
from £0.47
from £0.47
