74.76.45.03.00 - Climate Control (Valid for GB and Australia - July 1999)

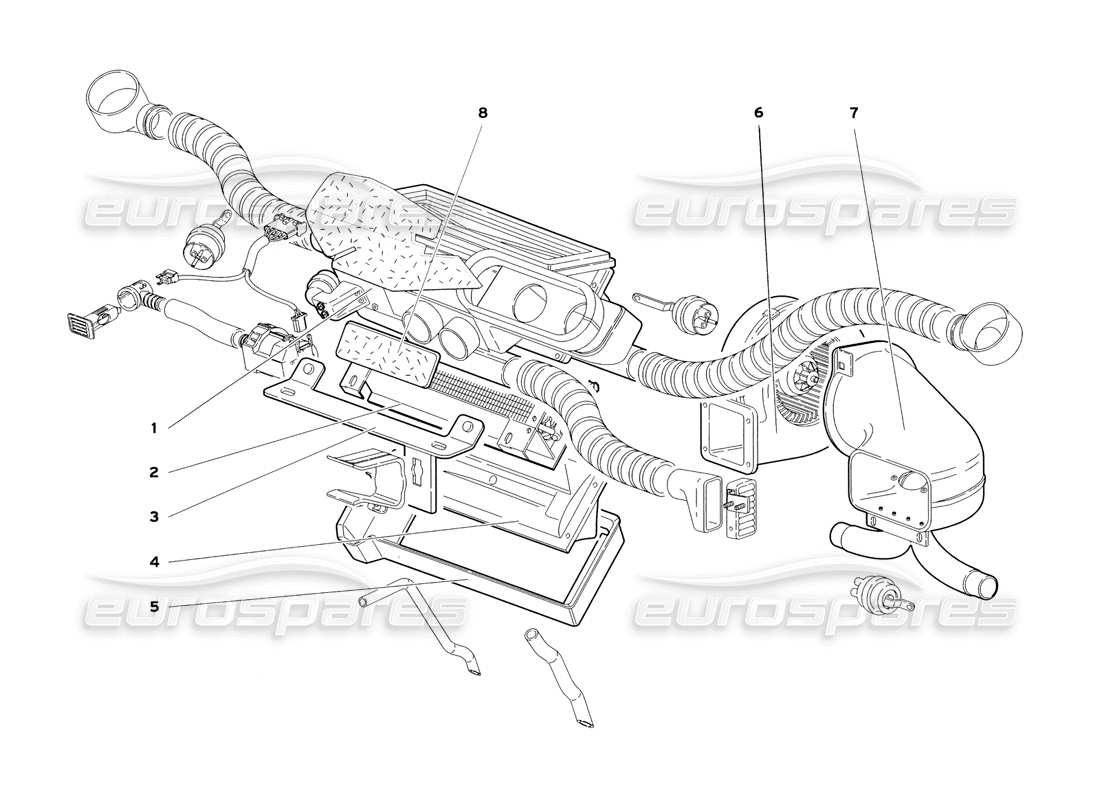

Lamborghini Diablo SV (1999) Climate Control (Valid for GB and Australia - July 1999) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
0069003431
CONVEYOR
(Valid for GB and AUSTRALIA - July 1999) CONVOGLIATORE
from
£1,409.48
from
£1,409.48
#
002
MPN:
004535864
RADIATOR
(Valid for GB and AUSTRALIA - July 1999) EVAPORATORE - RISCALDATORE
from
£266.97
from
£266.97
#
003
MPN:
005937771
SUPPORT
(Valid for GB and AUSTRALIA - July 1999) SUPPORTO
from
£78.02
from
£78.02
#
004
MPN:
009414534
CONVEYOR
(Valid for GB and AUSTRALIA - July 1999) CONVOGLIATORE
from
£186.56
from
£186.56
#
005
MPN:
009414539
PAN
(Valid for GB and AUSTRALIA - July 1999) VASCHETTA
from
£50.41
from
£50.41
#
006
MPN:
004537175
ELECTROFAN
(Valid for GB and AUSTRALIA - July 1999) ELETTROVENTILATORE
from
£243.76
from
£243.76
#
007
MPN:
009453131
CONVEYOR
(Valid for GB and AUSTRALIA - July 1999) CONVOGLIATORE
from
£1,264.40
from
£1,264.40
#
008
MPN:
0069005079
COVERING
(Valid for GB and AUSTRALIA - July 1999) RIVESTIMENTO
from
£9.58
from
£9.58
