maserati qtp. 3.2 v8 (1999) electrical system: boot - doors - passanger compartment (lh drive) parts diagram

059 - Electrical System: Boot - Doors - Passanger Compartment (LH Drive)

Maserati QTP. 3.2 V8 (1999) Electrical System: Boot - Doors - Passanger Compartment (L.H. Drive) Parts Diagram

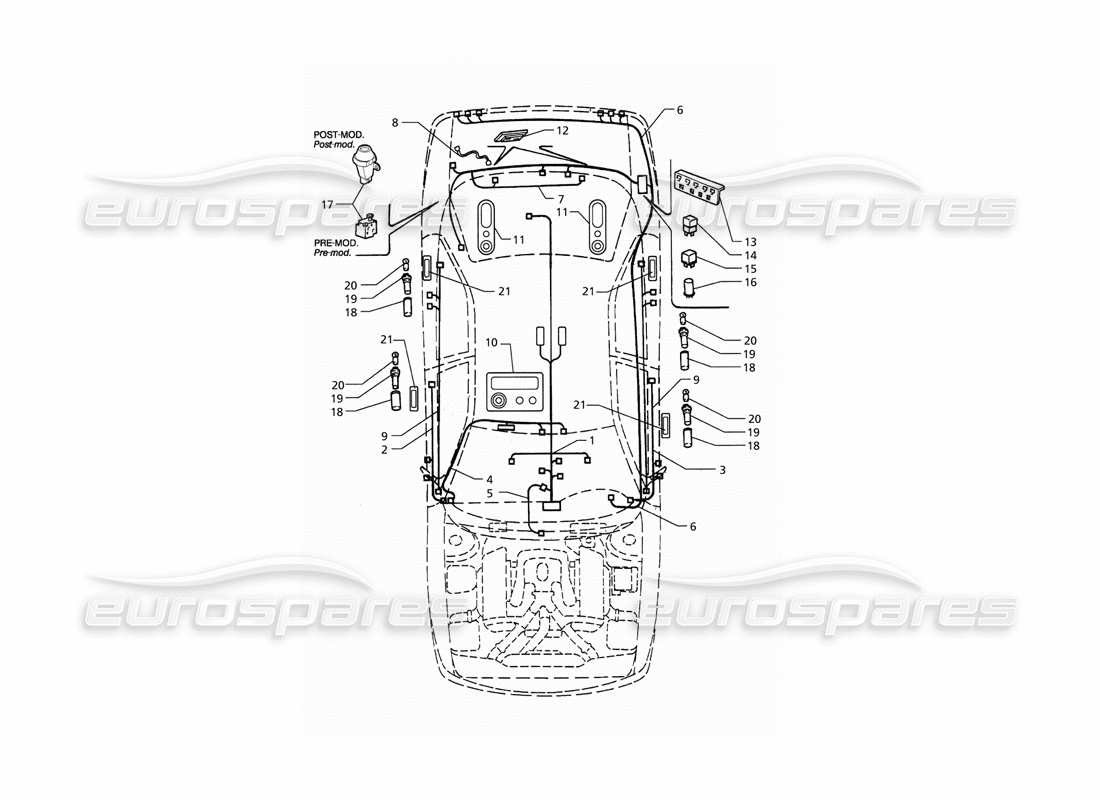

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 373000109
CONSOLE WIRING
- Valid for 06, 05 and 00 version
from £58.65
from £58.65
# 001
MPN: 373005109
CONSOLE WIRING
- Valid for 06, 05 and 00 version - Only for Japan markets
from £71.86
from £71.86
# 002
MPN: 373000110
PASSENGER DOOR WIRING
- Valid for 06, 05 and 00 version
from £61.11
from £61.11
# 003
MPN: 373000111
DRIVER'S DOOR WIRING
- Valid for 06, 05 and 00 version
from £86.05
from £86.05
# 004
MPN: 373000112
FRONT CEILING LAMP WIRING
- Valid for 06, 05 and 00 version
from £16.31
from £16.31
# 005
MPN: 363006122
REVERSE AND STARTUP WIRING
- Valid for 06 version
from £5.61
from £5.61
# 005
MPN: 373000122
REVERSE AND STARTUP WIRING
- Valid for 05 and 00 version
from £6.16
from £6.16
# 006
MPN: 373000108
REAR WIRING
- Valid for 06, 05 and 00 version
from £225.34
from £225.34
# 007
MPN: 373000114
BOOT LIGHT WIRING
- Valid for 06, 05 and 00 version
from £0.48
from £0.48
# 008
MPN: 53301127
HEATED REAR WINDOW CABLE
- Valid for 06, 05 and 00 version
from £0.89
from £0.89
# 009
MPN: 373000113
REAR DOOR WIRING
- Valid for 06, 05 and 00 version
from £74.68
from £74.68
# 010
MPN: 373100117
PASSENGER COMP. FRONT CEILING LAMP
- Valid for 06, 05 and 00 version
from £41.66
from £41.66
# 011
MPN: 373100118
PASSENGER COMP. REAR CEILING LAMP
- Valid for 06, 05 and 00 version
from £24.56
from £24.56
# 012
MPN: 393150120
BOOT LIGHT
- Valid for 06, 05 and 00 version
from £7.71
from £7.71
# 013
MPN: 373000131
RELAY SUPPORT
- Valid for 06, 05 and 00 version
from £8.22
from £8.22
# 014
MPN: 313320134
BOSCH RELAY
- Valid for 06, 05 and 00 version
from £16.96
from £16.96
This part replaces part number 184101
# 015
MPN: 313320136
DIODE BRIDGE
- Valid for 06, 05 and 00 version
from £6.42
from £6.42
# 016
MPN: 373300113
LIGHTS CONTROL
- Valid for 06, 05 and 00 version
from £113.76
from £113.76
# 017
MPN: 313330135
FUEL CUT OFF SWITCH
- Valid for 06, 05 and 00 version - Pre modification
from £15.15
from £15.15
# 017
MPN: 373300135
FUEL CUT OFF SWITCH
- Valid for 06, 05 and 00 version - Post modification
from £7.46
from £7.46
# 018
MPN: 53311300
CAP
- Valid for 06, 05 and 00 version
from £0.69
from £0.69
# 019
MPN: 30311113
DOORS OPEN LIGHT
- Valid for 06, 05 and 00 version
from £4.12
from £4.12
# 020
MPN: 187520300
12 V 3 W LAMP
- Valid for 06, 05 and 00 version
from £0.53
from £0.53
# 021
MPN: 363100111
OPEN DOOR SILL LIGHTS
- Valid for 06, 05 and 00 version
from £6.74
from £6.74
