071 - Automatic Air Conditioner Assy (LH Drive)

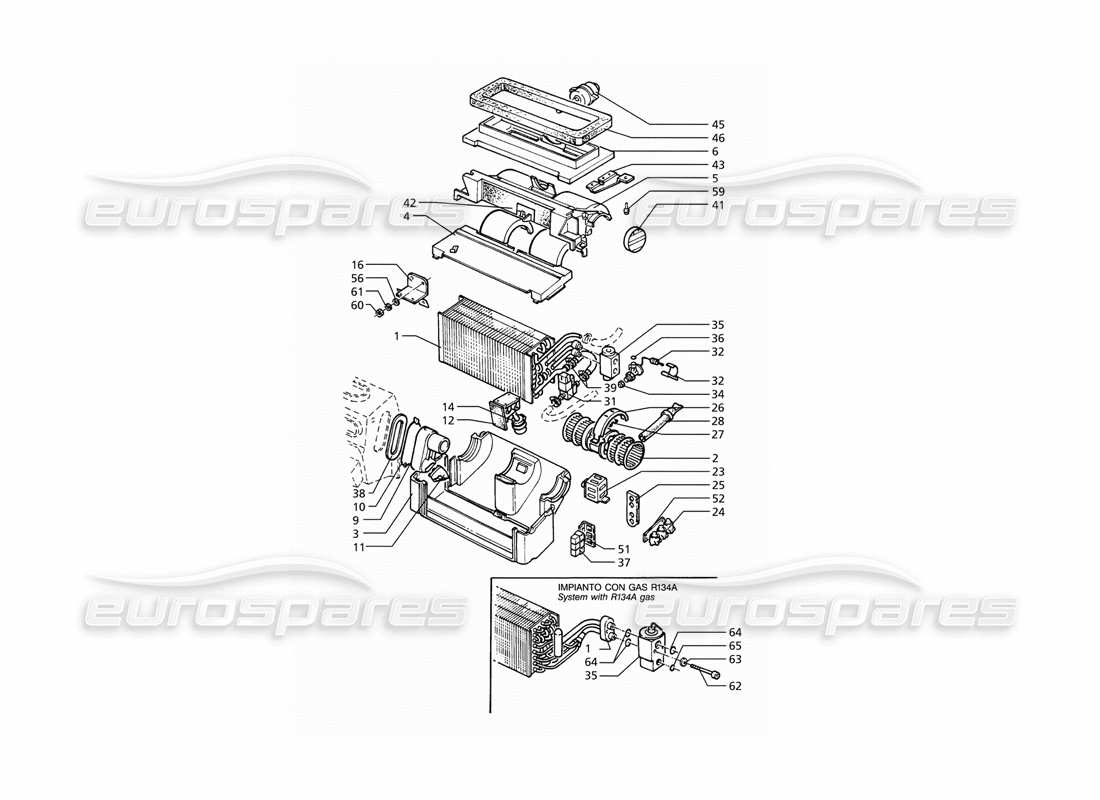

Maserati Ghibli 2.8 (ABS) Automatic Air Conditioner Assy (L.H.Drive) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
315551165
HEATER EVAPORATOR
- Valid for 09, 10 and 02 version - For system with Freon R12
from
£49.25
from
£49.25
#
001
MPN:
375500165
HEATER EVAPORATOR
- Valid for 09, 10 and 02 version - For system with R134A gas
from
£309.52
from
£309.52
#
002
MPN:
315520167
ELECTRIC FAN
- Valid for 09, 10 and 02 version
from
£220.23
from
£220.23
#
003
MPN:
315551380
LOWER BOX
- Valid for 09, 10 and 02 version
from
£17.16
from
£17.16
#
004
MPN:
315520381
INTERMEDIATE BOX
- Valid for 09, 10 and 02 version
from
£12.68
from
£12.68
#
005
MPN:
315551382
UPPER BOX
- Valid for 09, 10 and 02 version
from
£19.39
from
£19.39
#
006
MPN:
315520470
DUCT
- Valid for 09, 10 and 02 version
from
£42.14
from
£42.14
#
009
MPN:
315520473
LH AIR NOZZLE
- Valid for 09, 10 and 02 version
from
£8.48
from
£8.48
#
009
MPN:
315520474
RH AIR NOZZLE
- Valid for 09, 10 and 02 version
from
£8.48
from
£8.48
#
010
MPN:
315520163
FLAP FOR LH AIR NOZZLE
- Valid for 09, 10 and 02 version
from
£3.21
from
£3.21
This part replaces part number 315520129
#
010
MPN:
315520164
FLAP FOR RH AIR NOZZLE
- Valid for 09, 10 and 02 version
from
£4.13
from
£4.13
This part replaces part number 315520130
#
011
MPN:
315520387
VENT
- Valid for 09, 10 and 02 version
from
£18.64
from
£18.64
#
012
MPN:
315520018
FLAP, ASSY
- Valid for 09, 10 and 02 version
from
£10.38
from
£10.38
#
014
MPN:
315520158
REAR DOOR AIR CONTROL ACTUATOR
- Valid for 09, 10 and 02 version
from
£9.20
from
£9.20
#
016
MPN:
315520138
AIR CONDITIONER SUPPORT BRACKET
- Valid for 09, 10 and 02 version
from
£3.24
from
£3.24
#
023
MPN:
315520143
RESISTANCE
- Valid for 09, 10 and 02 version
from
£17.20
from
£17.20
#
024
MPN:
315520207
PNEUMATIC SYSTEM SOLENOID VALVE
- Valid for 09, 10 and 02 version
from
£41.27
from
£41.27
#
025
MPN:
315520475
GASKET
- Valid for 09, 10 and 02 version
#
026
MPN:
315520402
BRACKET
- Valid for 09, 10 and 02 version
#
027
MPN:
315520403
DAMPER
- Valid for 09, 10 and 02 version
#
028
MPN:
315520017
CONDENSATE DRAINAGE TUBE
- Valid for 09, 10 and 02 version
from
£1.76
from
£1.76
#
031
MPN:
315522144
COCK, ASSY
- Valid for 09, 10 and 02 version
from
£396.93
from
£396.93
#
032
MPN:
315520166
EXPANSION VALVE
- Valid for 09, 10 and 02 version
from
£77.02
from
£77.02
#
033
MPN:
315520408
PROBE FIXING CLIP
- Valid for 09, 10 and 02 version
from
£1.93
from
£1.93
#
034
MPN:
315520445
GASKET
- Valid for 09, 10 and 02 version
from
£0.69
from
£0.69
#
035
MPN:
315553166
BLOCK EXPANSION VALVE
- Valid for 09, 10 and 02 version - For system with Freon R12
from
£66.47
from
£66.47
#
035
MPN:
375500166
BLOCK EXPANSION VALVE
- Valid for 09, 10 and 02 version - For system with R134A gas
from
£58.13
from
£58.13
#
036
MPN:
315520443
GASKET
- Valid for 09, 10 and 02 version
from
£1.04
from
£1.04
#
037
MPN:
30331137
RELAY
- Valid for 09, 10 and 02 version
Supersession
Supersession
#
038
MPN:
315520483
GASKET
- Valid for 09, 10 and 02 version
from
£3.83
from
£3.83
#
039
MPN:
315520415
CLAMP
- Valid for 09, 10 and 02 version
#
041
MPN:
315551416
THROTTLE FLAP
- Valid for 09, 10 and 02 version
from
£4.63
from
£4.63
#
042
MPN:
315520136
AIR FLAP
- Valid for 09, 10 and 02 version
#
043
MPN:
315520419
LH BRACKET FOR AIR CONDITIONER
- Valid for 09, 10 and 02 version
#
043
MPN:
315520420
RH BRACKET FOR AIR CONDITIONER
- Valid for 09, 10 and 02 version
#
045
MPN:
315520160
AIR FLAP ACTUATOR
- Valid for 09, 10 and 02 version
from
£3.84
from
£3.84
#
046
MPN:
315520422
GASKET
- Valid for 09, 10 and 02 version
from
£2.90
from
£2.90
#
051
MPN:
315520477
RELAY SUPPORTING BRACKET
- Valid for 09, 10 and 02 version
from
£18.09
from
£18.09
#
052
MPN:
315520478
SOLENOID VALVE SUPPORTING BRACKET
- Valid for 09, 10 and 02 version
#
056
MPN:
169020406
WASHER
- Valid for 09, 10 and 02 version
from
£0.77
from
£0.77
#
059
MPN:
314320345
SCREW
- Valid for 09, 10 and 02 version
from
£41.65
from
£41.65
#
060
MPN:
125100060
NUT
- Valid for 09, 10 and 02 version
#
061
MPN:
135600060
SPRING WASHER
- Valid for 09, 10 and 02 version
from
£0.77
from
£0.77
#
062
MPN:
14304821
SCREW
- Valid for 09, 10 and 02 version - For system with R134A gas
from
£0.53
from
£0.53
#
063
MPN:
84157
WASHER
- Valid for 09, 10 and 02 version - For system with R134A gas
Supersession
Supersession
#
064
MPN:
375500458
GROMMET
- Valid for 09, 10 and 02 version
from
£5.28
from
£5.28
#
065
MPN:
375500457
GROMMET
- Valid for 09, 10 and 02 version
from
£3.60
from
£3.60
