043.1 - Engine Compart. Electr. System,RH Steer.

Maserati 418 / 4.24v / 430 Engine Compart. Electr. System,RH Steer. Parts Diagram

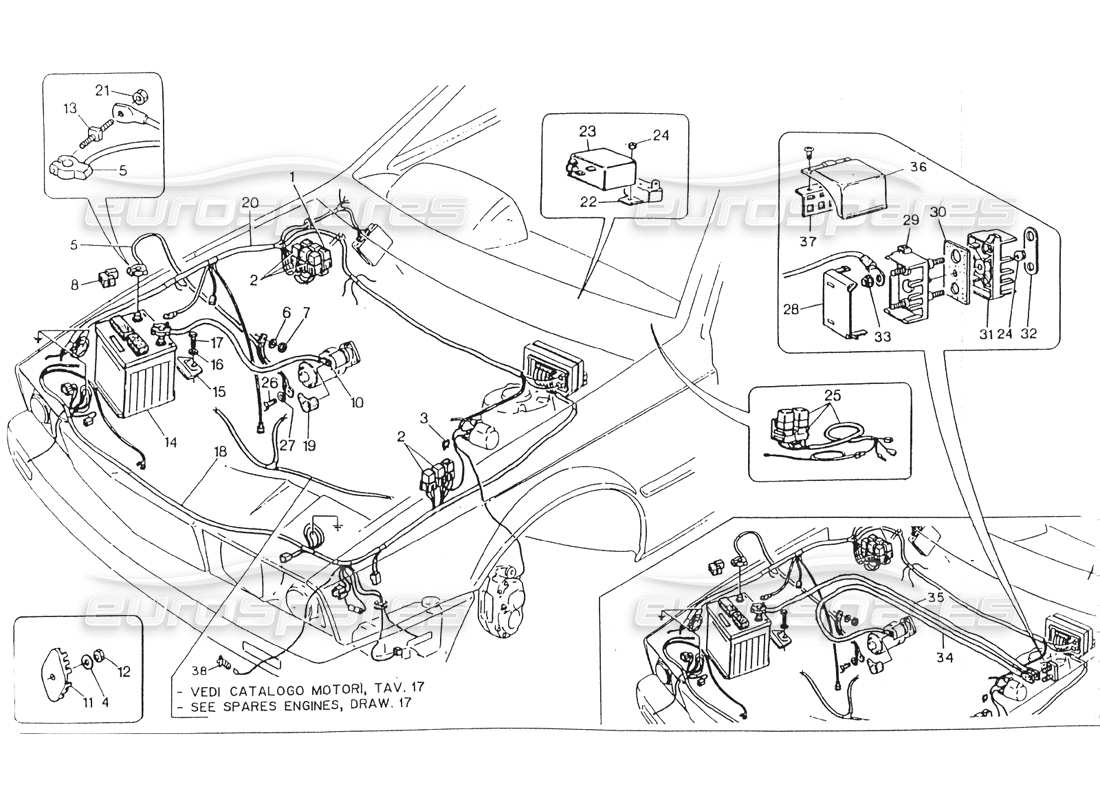

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 313320134
RELAY
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £18.16
from £18.16
This part replaces part number 184101
# 002
MPN: 313353106
RELAY WITH FUSE
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £8.48
from £8.48
This part replaces part number 313320106
# 004
MPN: 135700060
WASHER
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 005
MPN: 313750106
NEGATIVE BATTERY CABLE FOR ENGINE FRAME
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £9.35
from £9.35
This part replaces part number 313020122
# 005
MPN: 313752106
NEGATIVE BATTERY CABLE FOR ENGINE FRAME
Valid for 69 / 79
from £3.82
from £3.82
# 006
MPN: 135600084
SPRING WASHER
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 007
MPN: 125100080
NUT
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £0.86
from £0.86
# 008
MPN: 313020300
CAP FOR POSITIVE TERMINAL
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £1.07
from £1.07
# 010
MPN: 313054117
POSITIVE BATTERY CABLE
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 77 / 78
Supersession
Supersession
This part replaces part number 313020117
# 011
MPN: 313027326
GROUND PLATE
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £1.07
from £1.07
# 012
MPN: 122600060
NUT
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 013
MPN: 313720300
SEALED SCREW
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 014
-
Battery
# 015
MPN: 313020314
BATTERY KEEP PLATE
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £1.54
from £1.54
# 016
MPN: 138200080
WASHER
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 017
MPN: 101208020
SCREW
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 018
MPN: 313067106
LH ENGINE COMPART. WIRING HARNESS
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 77 / 78
from £73.26
from £73.26
# 019
MPN: 313020301
CAP
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £13.92
from £13.92
# 020
MPN: 323047143
RH ENGINE COMPART. WIRING HARNESS
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 77 / 78
from £193.30
from £193.30
# 021
MPN: 125100060
NUT
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 022
MPN: 30301124
THERMAL SWITCH
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £12.67
from £12.67
# 023
MPN: 323320193
DOOR ACTUATOR CONTROL UNIT
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £22.93
from £22.93
# 024
MPN: 122600060
NUT
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 025
MPN: 313053103
AUXILIARY RELAY WIRING HARNESS
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
from £24.76
from £24.76
# 026
MPN: 101208016
SCREW
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 027
MPN: 135300084
SPRING WASHER
VALID FOR 65 3V / 65 4V / 66 / 67 / 68 / 69 / 77 / 78 / 79
# 034
MPN: 313069153
BATTERY CABLE
Valid for 69 / 79
from £41.27
from £41.27
# 035
MPN: 313069152
NODE/BATTERY CABLE
Valid for 69 / 79
# 036
MPN: 313052337
ENGINE COMPARTMENT RELAY PROTECTION
Valid for 69 / 79
from £8.94
from £8.94
# 037
MPN: 313052303
RELAY SUPPORT BRACKET
Valid for 69 / 79
from £5.07
from £5.07
# 038
MPN: 393650307
EXTERNAL TEMPERATURE PROBE
Valid for 69 / 79
from £27.51
from £27.51
