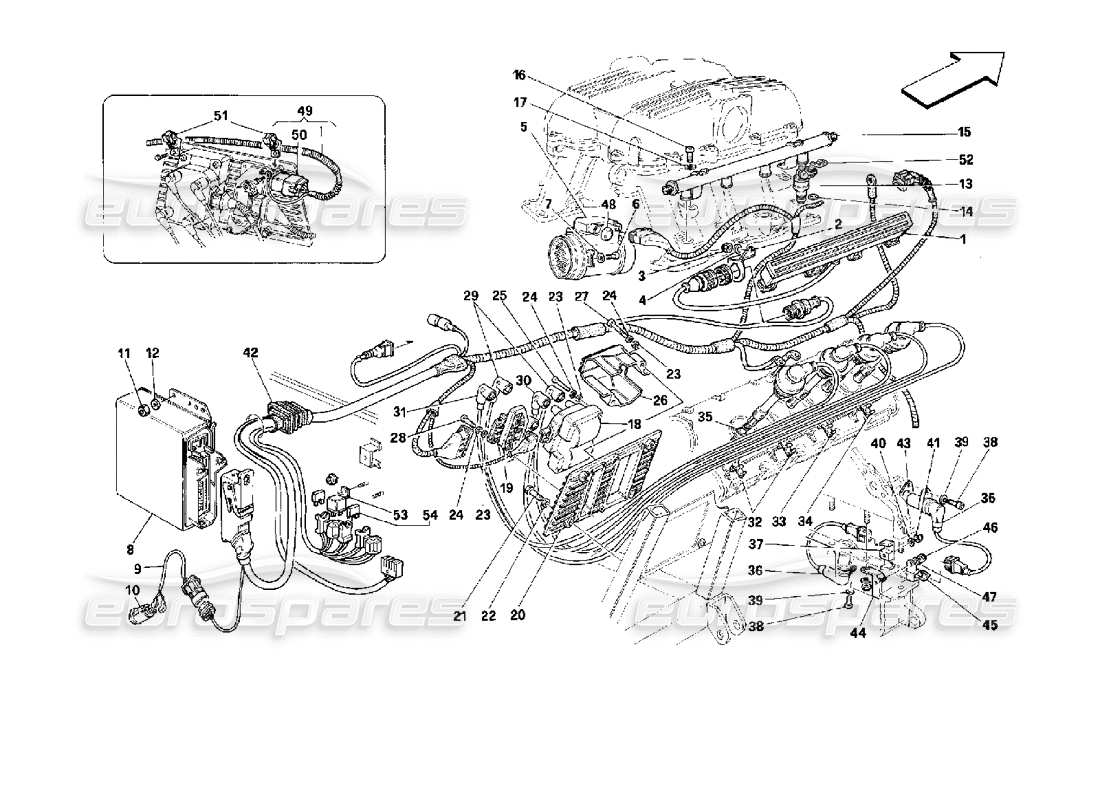

Ferrari Mondial 3.4 t Coupe/Cabrio Engine Ignition - Motronic 2.7 Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
142842
CABLE AND CONNECTORS CONTAINERS
from
£64.91
from
£64.91
#
002
MPN:
145476
LH BRACKET
from
£0.88
from
£0.88
#
002
MPN:
145477
RH BRACKET
from
£0.88
from
£0.88
#
003
MPN:
12574211
NUT
from
£0.71
from
£0.71
#
004
MPN:
10519401
WASHER
from
£0.71
from
£0.71
#
005
MPN:
136374/A
AIR FLOW METER
Supersession
Supersession
#
006
MPN:
10373677
SCREW
from
£10.02
from
£10.02
#
007
MPN:
12639978
WASHER
from
£1.08
from
£1.08
#
008
MPN:
142519

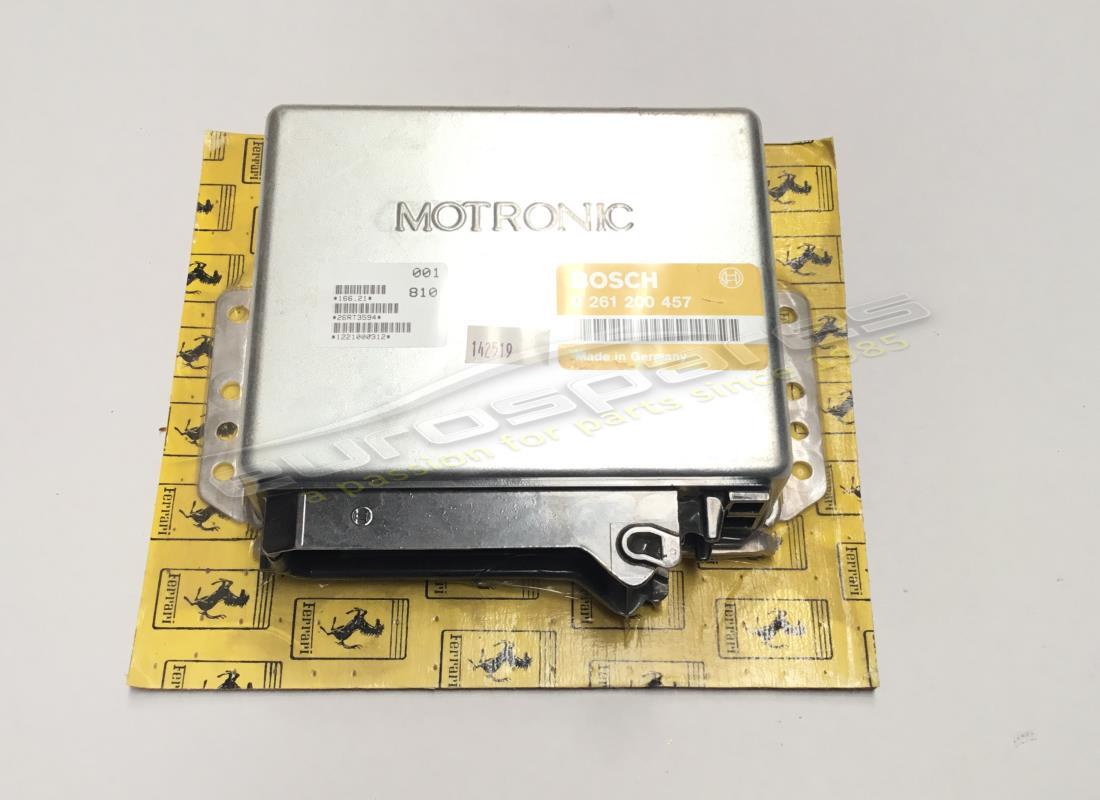

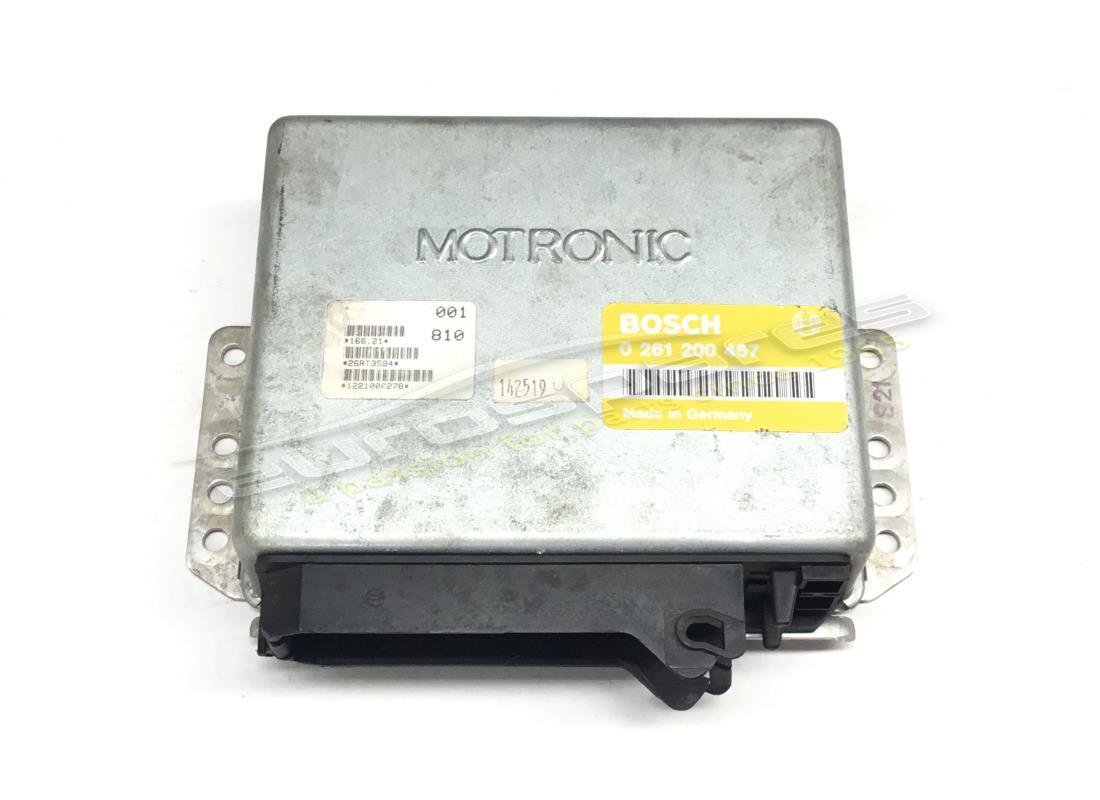

IGNITION/SUPPLY CONTROL SYSTEM
Ref. BOSCH 0261200457
from
£1,134.81
from
£1,134.81
#
008
MPN:
147176
IGNITION/SUPPLY CONTROL SYSTEM
Ref. BOSCH 0261200489
Supersession
Supersession
#
009
MPN:
145991
TESTER PUSH CABLE
Valid for USA
from
£16.29
from
£16.29
#
010
MPN:
145810
TESTER PUSH
Valid for USA
from
£7.67
from
£7.67
#
011
MPN:
12575411
NUT
Supersession
Supersession
#
012
MPN:
14496401
WASHER
Supersession
Supersession
#
013
MPN:
130968
INJECTOR
from
£219.50
from
£219.50
#
014
MPN:
133902
GASKET
from
£3.05
from
£3.05
#
015
MPN:
137326

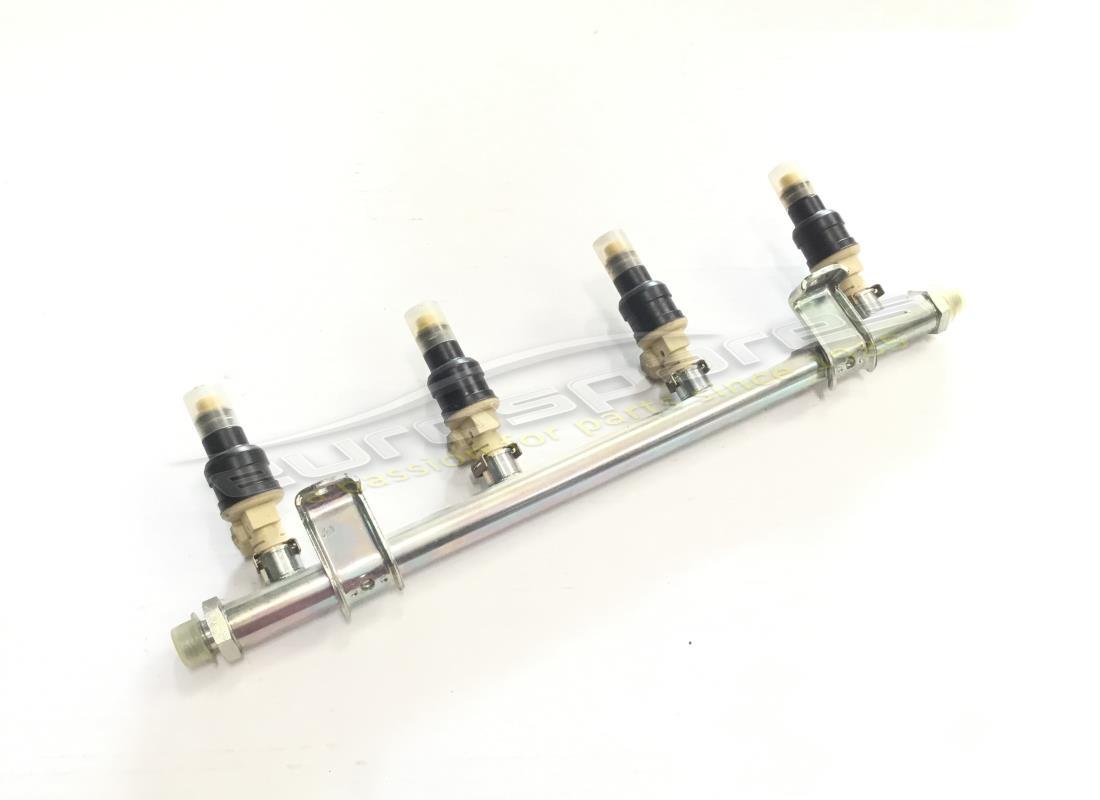

PIPE WITH INJECTORS
from
£199.50
from
£199.50
#
016
MPN:
20293306

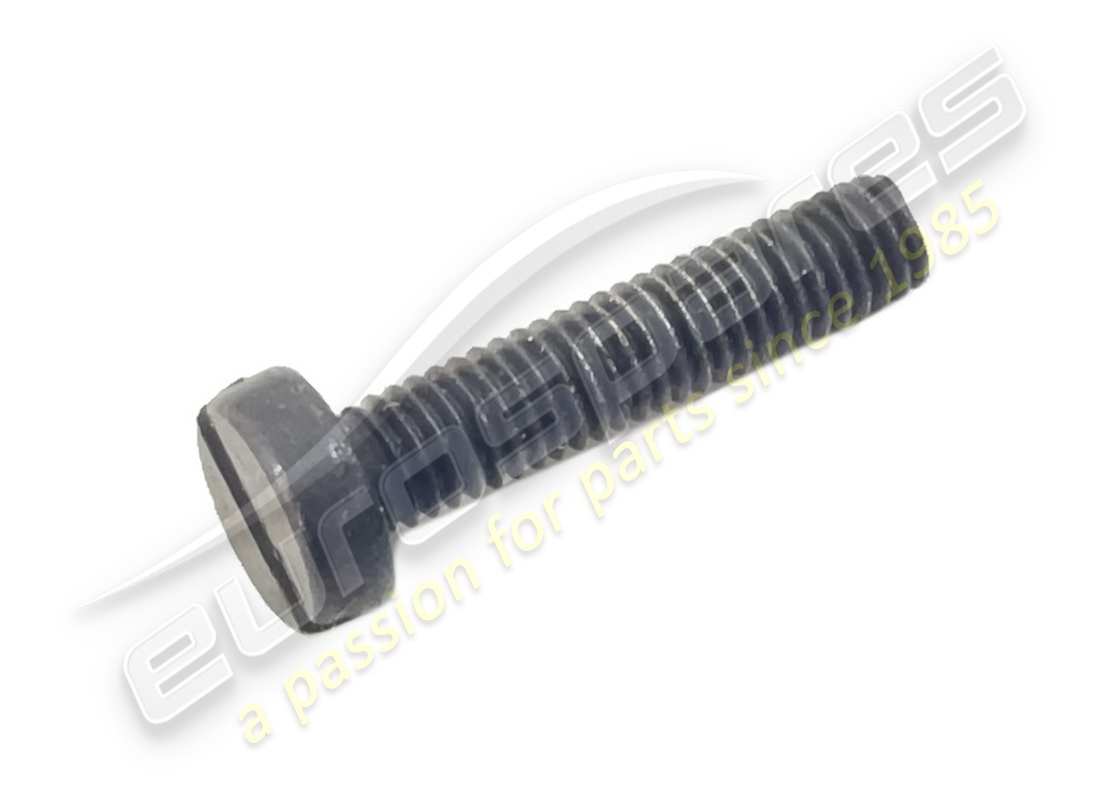

SCREW
from
£2.43
from
£2.43
#
017
MPN:
12601374
WASHER
from
£0.53
from
£0.53
This part replaces part number 10615474
- and 6 more. Click to view details
#
018
MPN:
138255

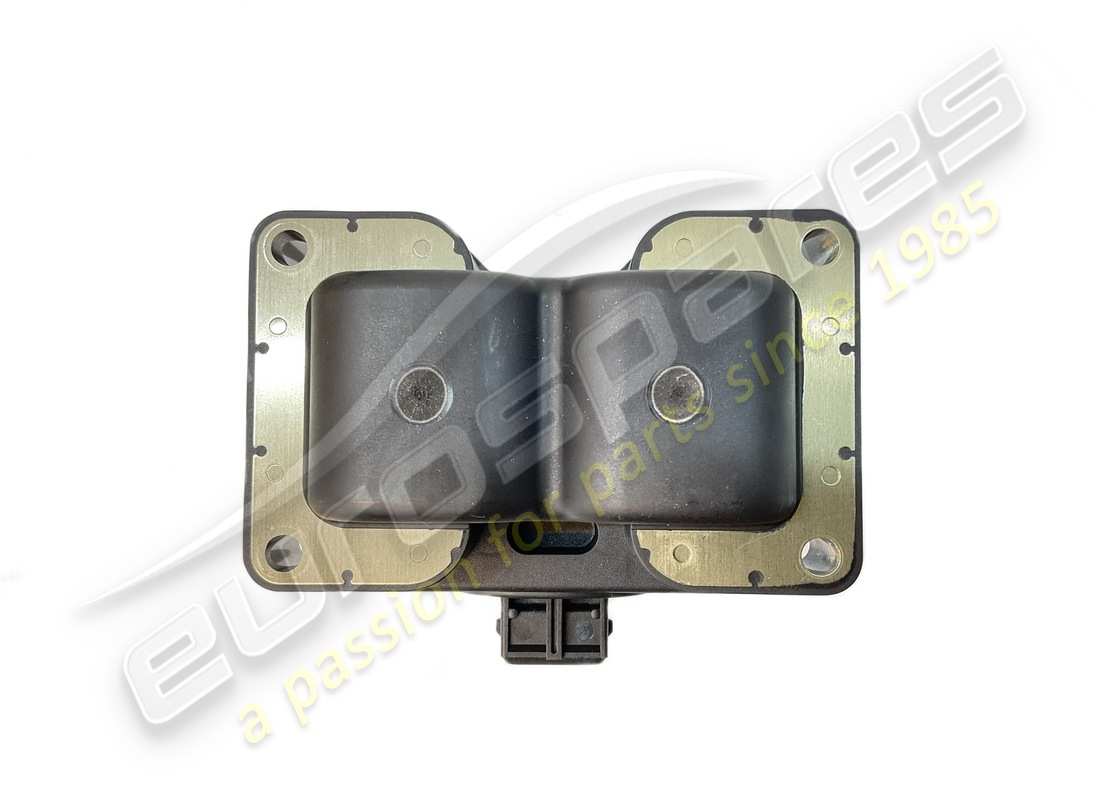

COIL
from
£77.21
from
£77.21
#
019
MPN:
137511

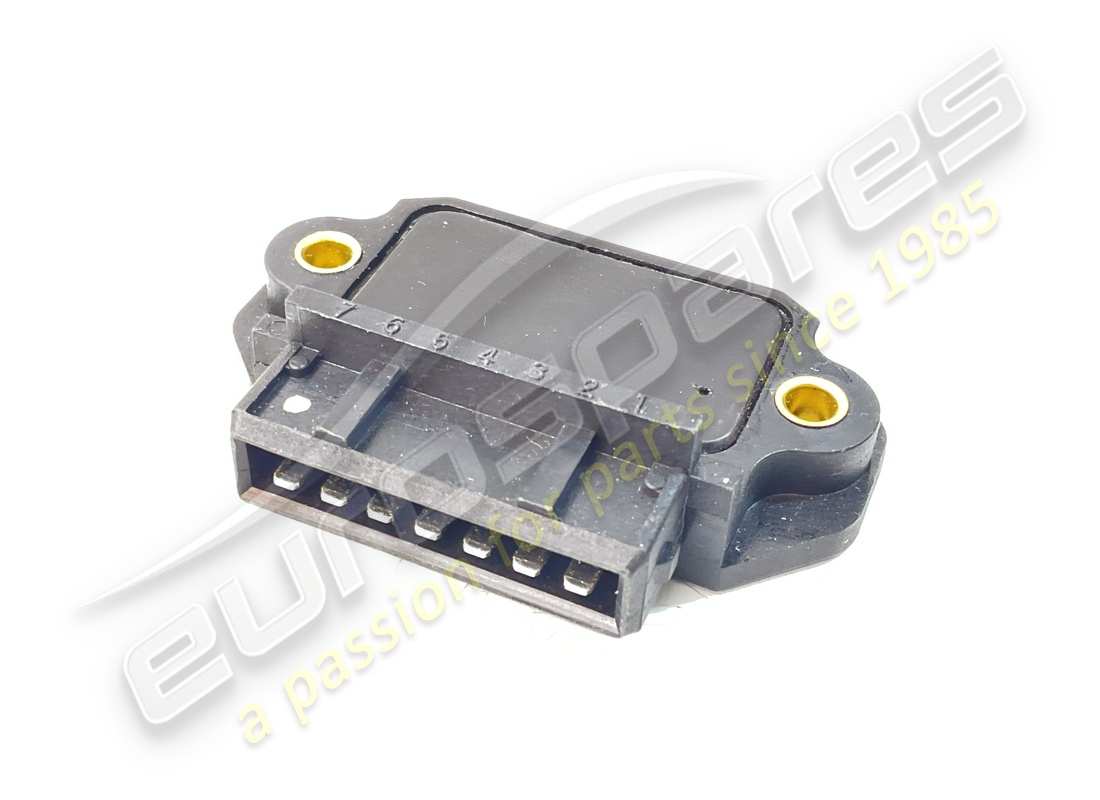

POWER MODULE
from
£181.60
from
£181.60
#
020
MPN:
139434
COIL AND MODULE SUPPORT
from
£50.63
from
£50.63
#
021
MPN:
10902724
SCREW
from
£0.71
from
£0.71
This part replaces part number 10902721 which we have in stock
#
022
MPN:
12639701
WASHER
Supersession
Supersession
This part replaces part number 12639704
#
023
MPN:
10519377
WASHER
Supersession
Supersession
This part replaces part number 10519305 which we have in stock
- and 1 more. Click to view details
#
024
MPN:
149951
WASHER
from
£0.48
from
£0.48
This part replaces part number 10615301 which we have in stock
- and 4 more. Click to view details
#
025
MPN:
13274972
SCREW
from
£1.16
from
£1.16
This part replaces part number 13274911
- and 1 more. Click to view details
#
026
MPN:
150631
PROTECTION
from
£4.79
from
£4.79
#
027
MPN:
13274872
SCREW
from
£1.85
from
£1.85
#
028
MPN:
13274672
SCREW
from
£0.78
from
£0.78
This part replaces part number 13274617
#
029
MPN:
188911

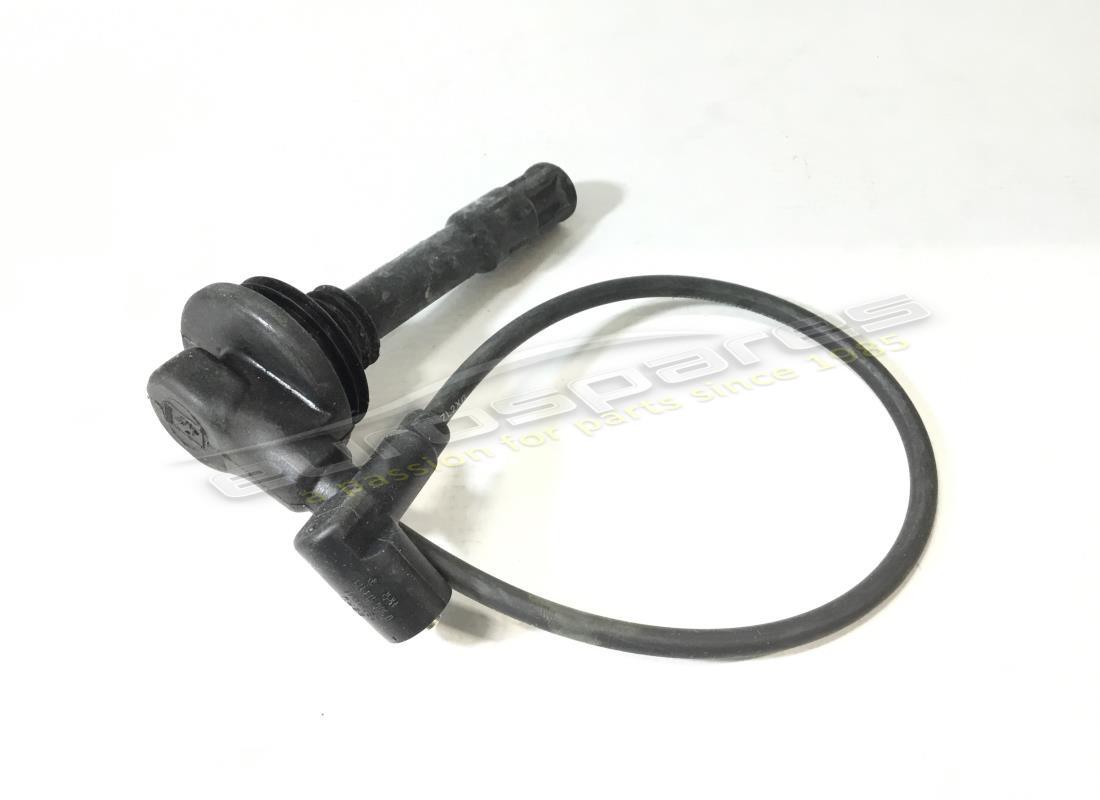

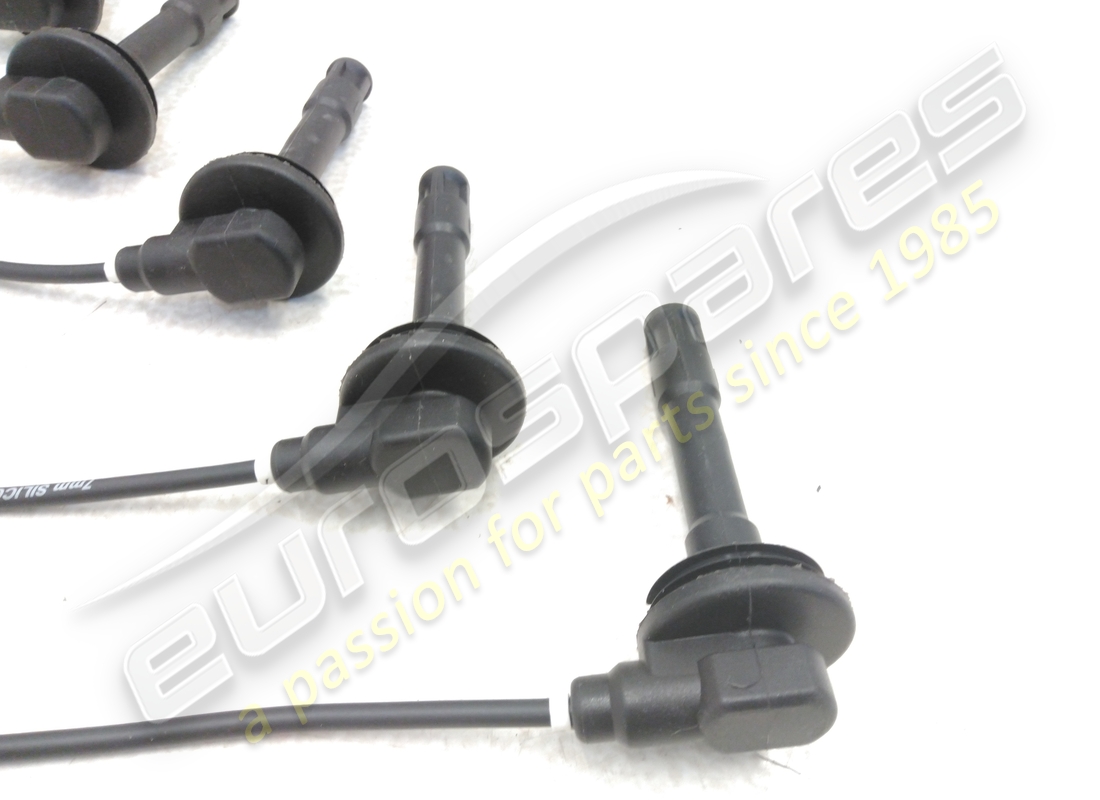

CABLE (FOR SPARKING PLUGS 1, 2, 7, 8)
from
£311.32
from
£311.32
This part replaces part number 137450
#
029
MPN:
188914
CABLE (FOR SPARKING PLUGS 1, 2, 7, 8)
With extension type BERU
from
£276.16
from
£276.16
This part replaces part number 145500
#
030
MPN:
137451

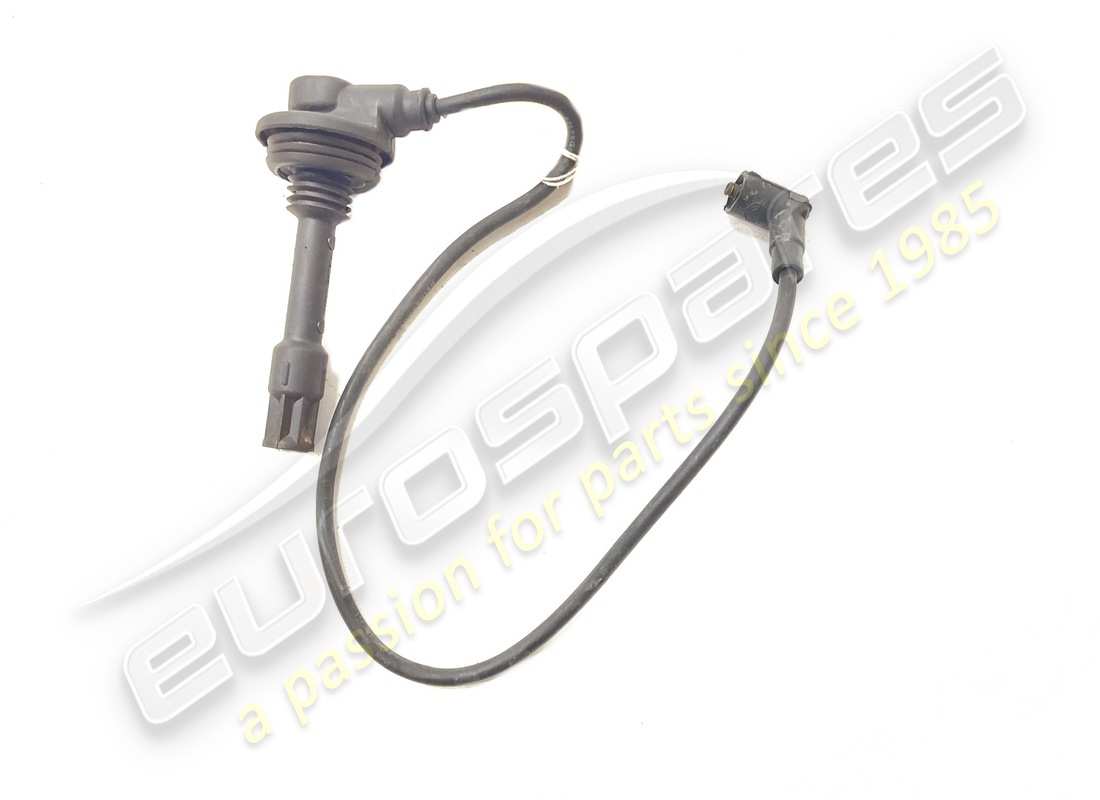

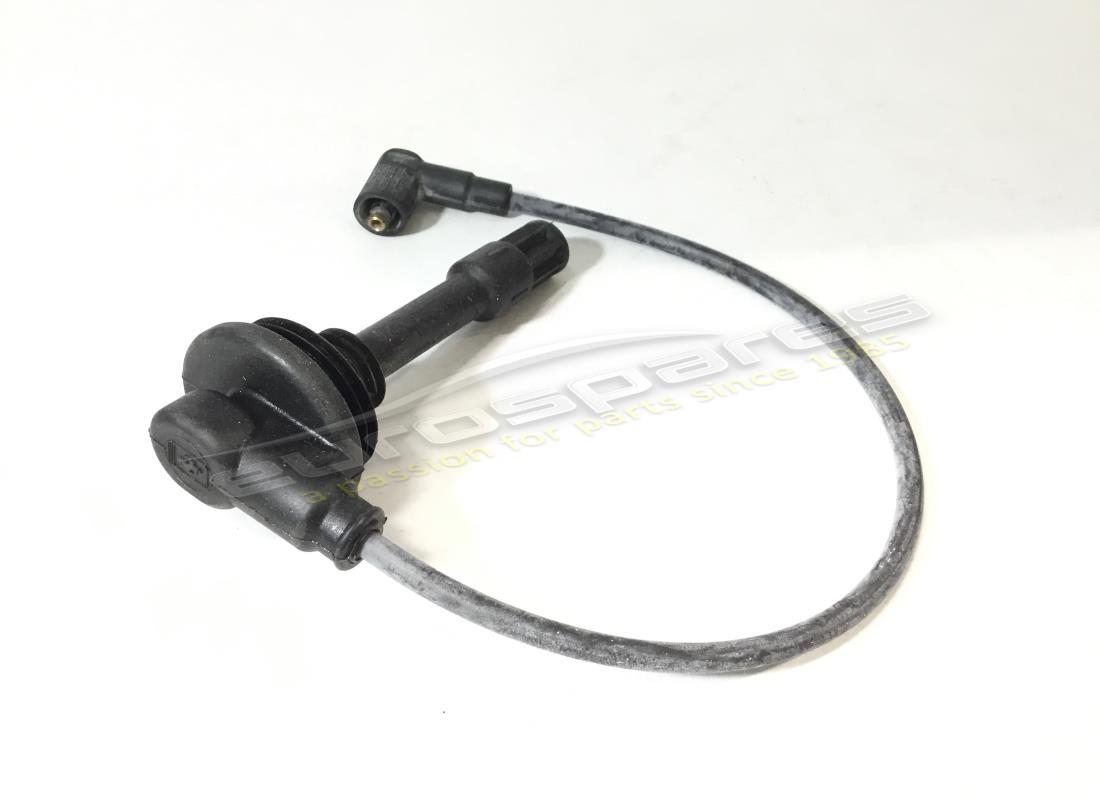

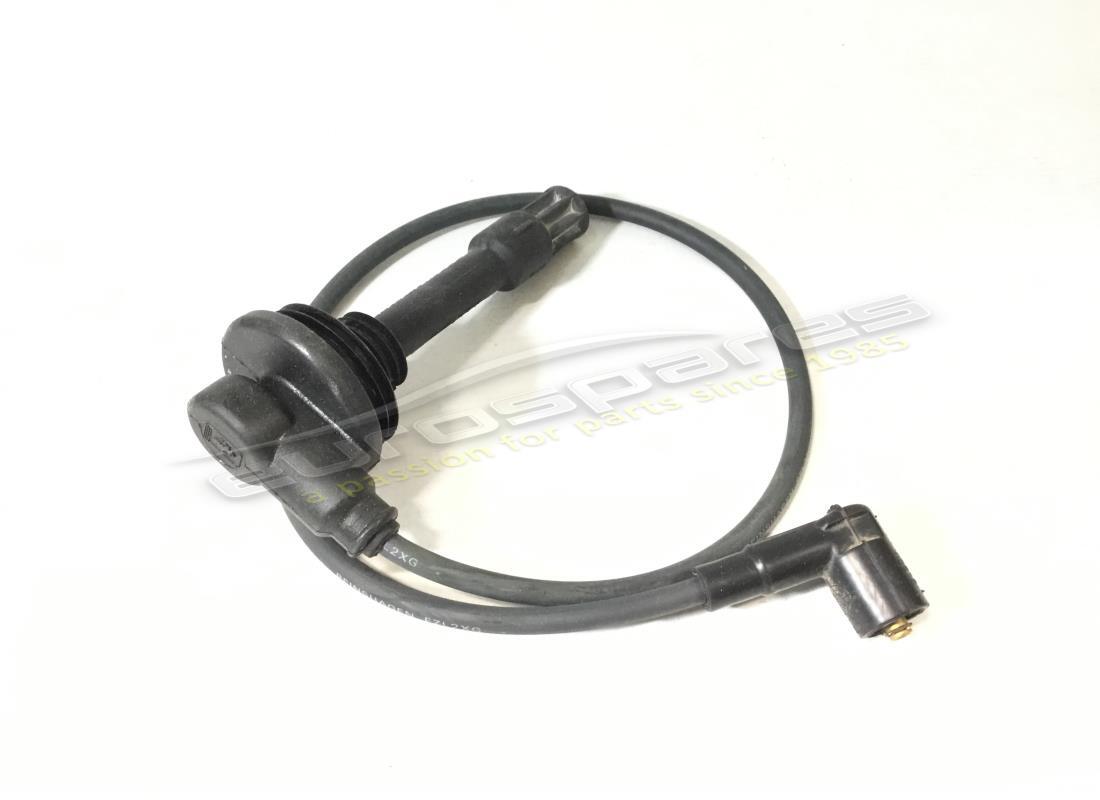

CABLE (FOR SPARKING PLUGS 3,6)
With extension type BOSCH - not as spare part - use part number: 188912
Supersession
Supersession
#
030
MPN:
145501
CABLE (FOR SPARKING PLUGS 3,6)
With extension type BERU
Supersession
Supersession
#
030
MPN:
188912
CABLE (FOR SPARKING PLUGS 3,6)
(replaces: 137451)
from
£151.89
from
£151.89
This part replaces part number 137451
- and 1 more. Click to view details
#
031
MPN:
137452
CABLE (FOR SPARKING PLUGS 4,5)
With extension type BOSCH
Supersession
Supersession
#
031
MPN:
145502
CABLE (FOR SPARKING PLUGS 4,5)
With extension type BERU
Supersession
Supersession
#
031
MPN:
188913
CABLE (FOR SPARKING PLUGS 4,5)
from
£151.89
from
£151.89
This part replaces part number 137452
- and 1 more. Click to view details
#
031
MPN:
188915
CABLE (FOR SPARKING PLUGS 4,5)
See also 145502
from
£270.10
from
£270.10
This part replaces part number 145502
#
031
MPN:
FHT022

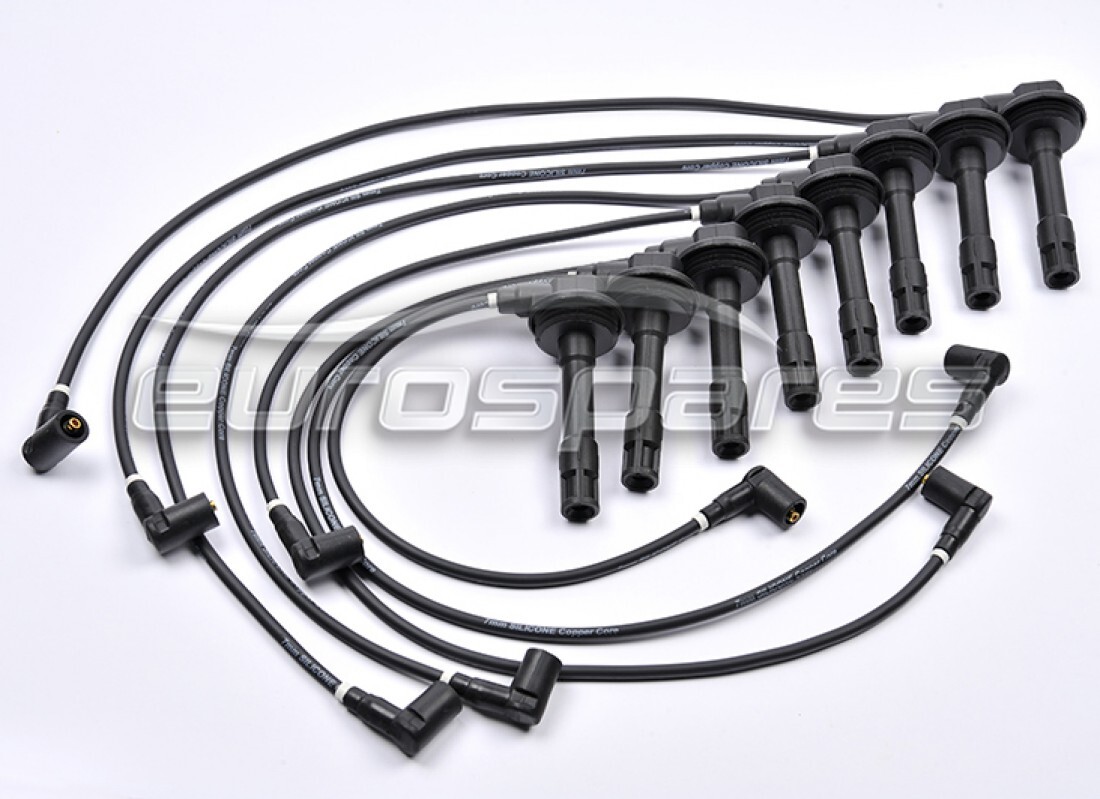

COMPLETE HT LEADS SET
Engine lead set
from
£643.22
from
£643.22
#
032
MPN:
119402

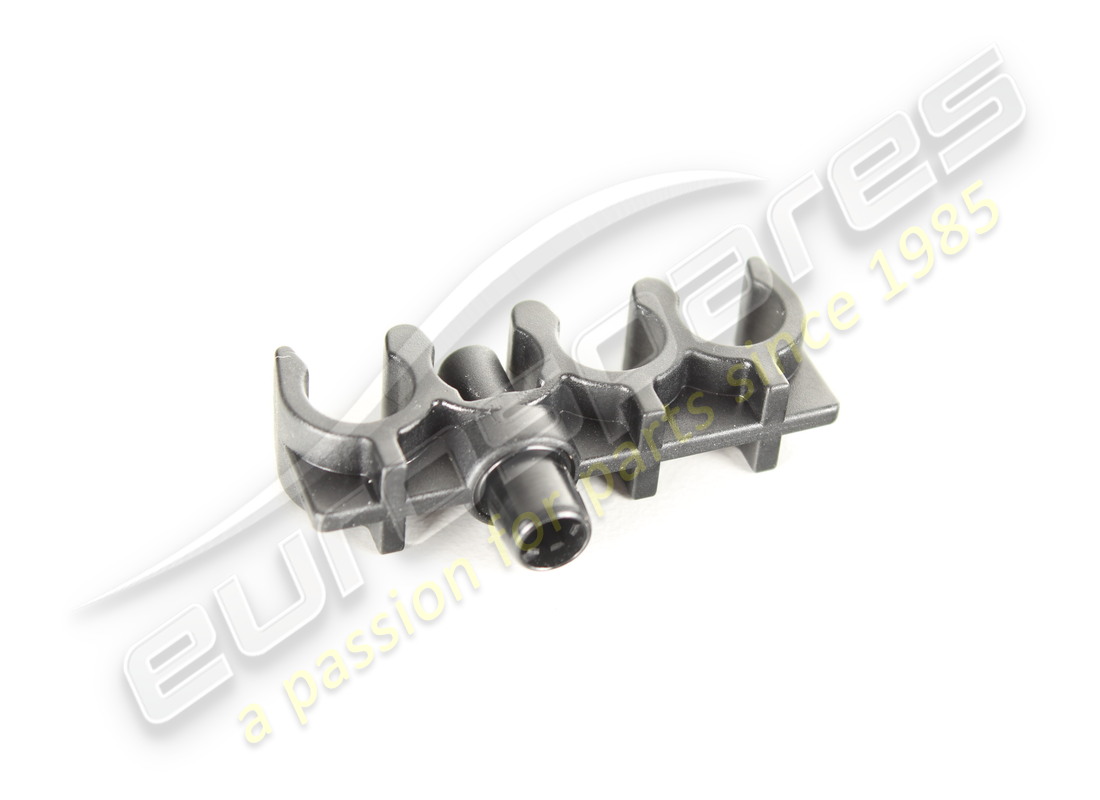

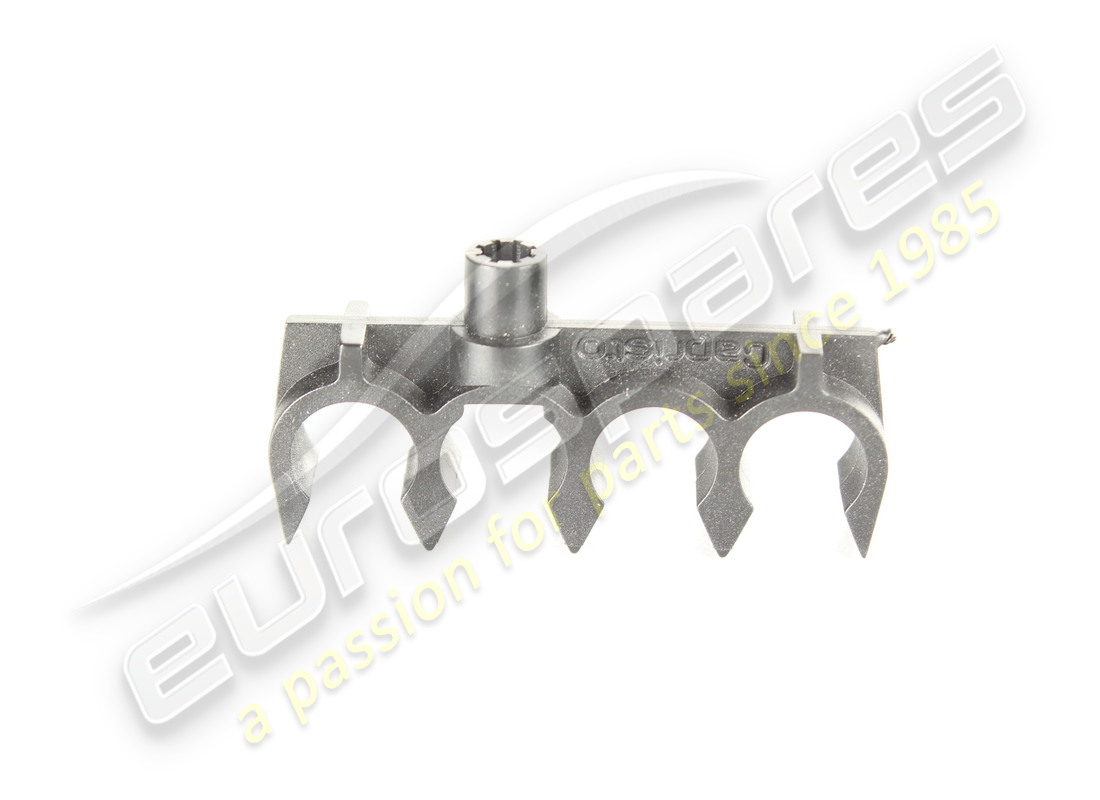

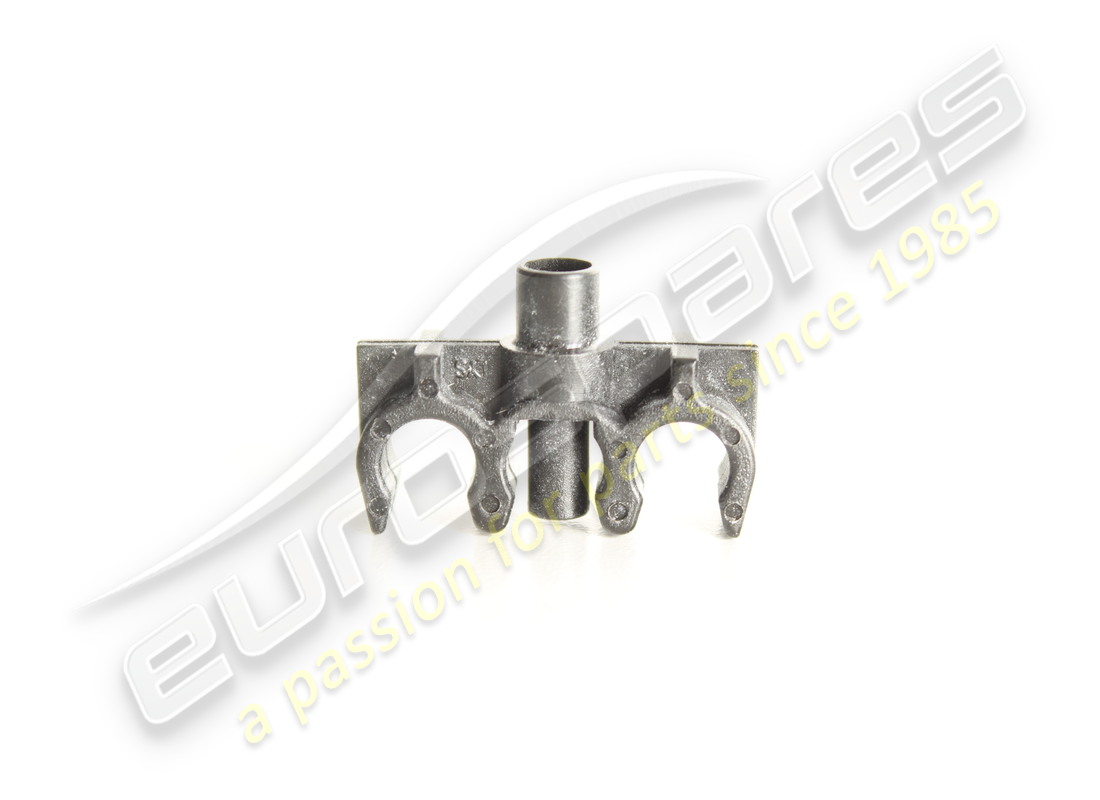

HT CABLE CLIP 4-CABLES
from
£1.70
from
£1.70
#
033
MPN:
119403

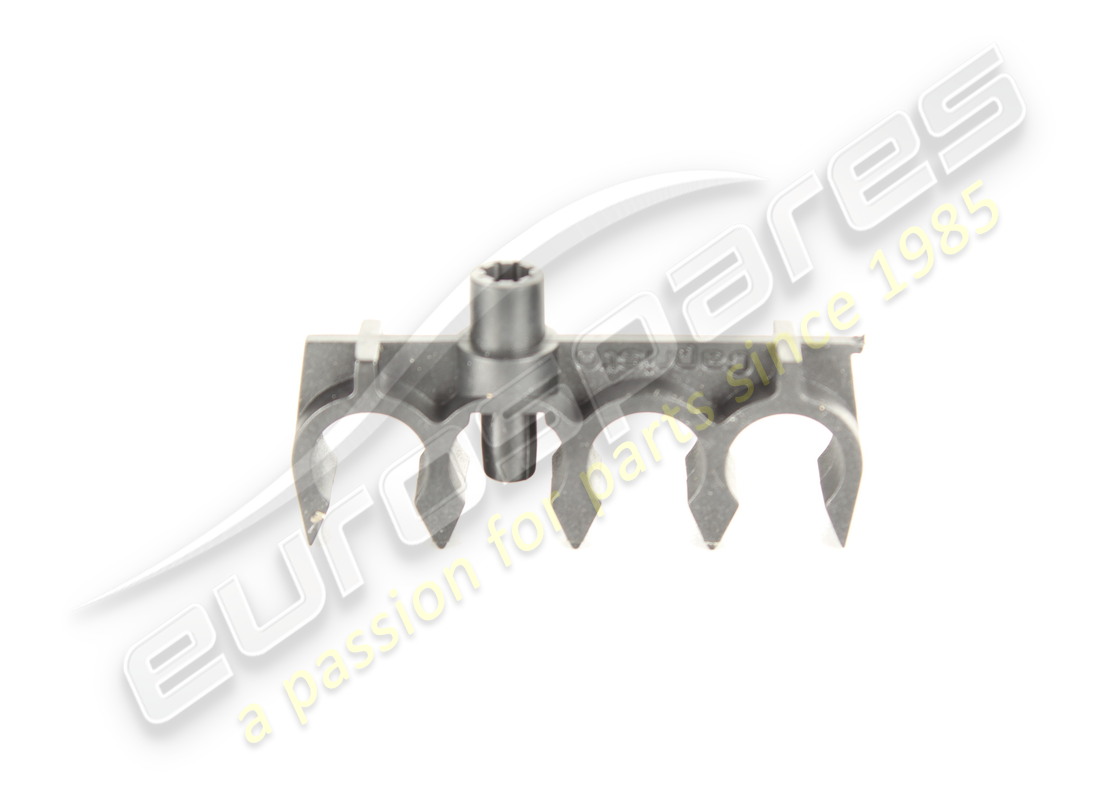

HT CABLE CLIP 3-CABLES
from
£10.92
from
£10.92
#
034
MPN:
119404

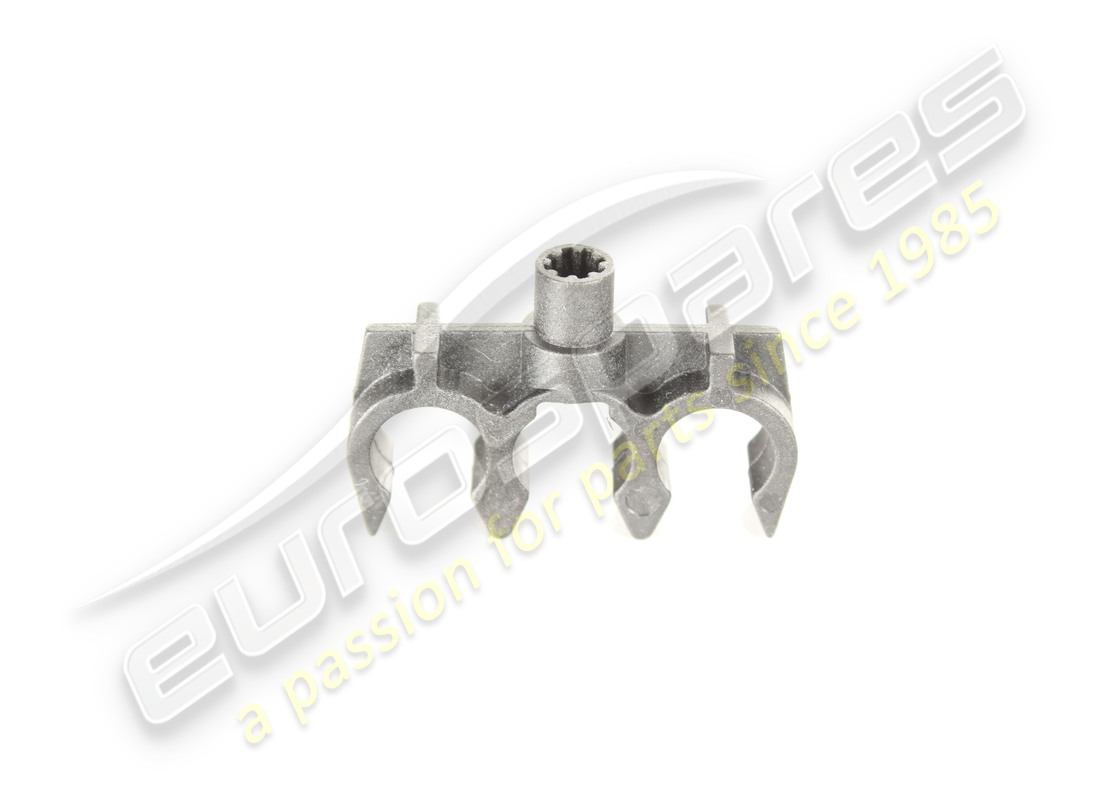

HT CABLE CLIP 2-CABLES
from
£2.79
from
£2.79
#
035
MPN:
150180/a

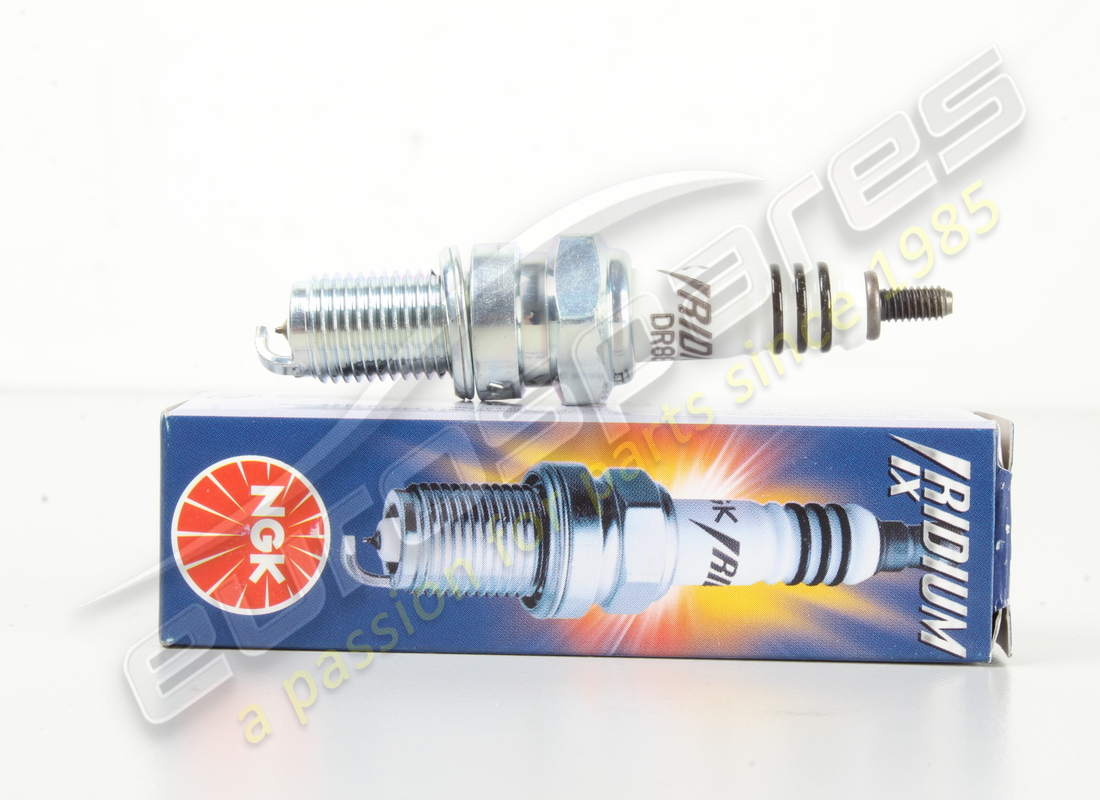

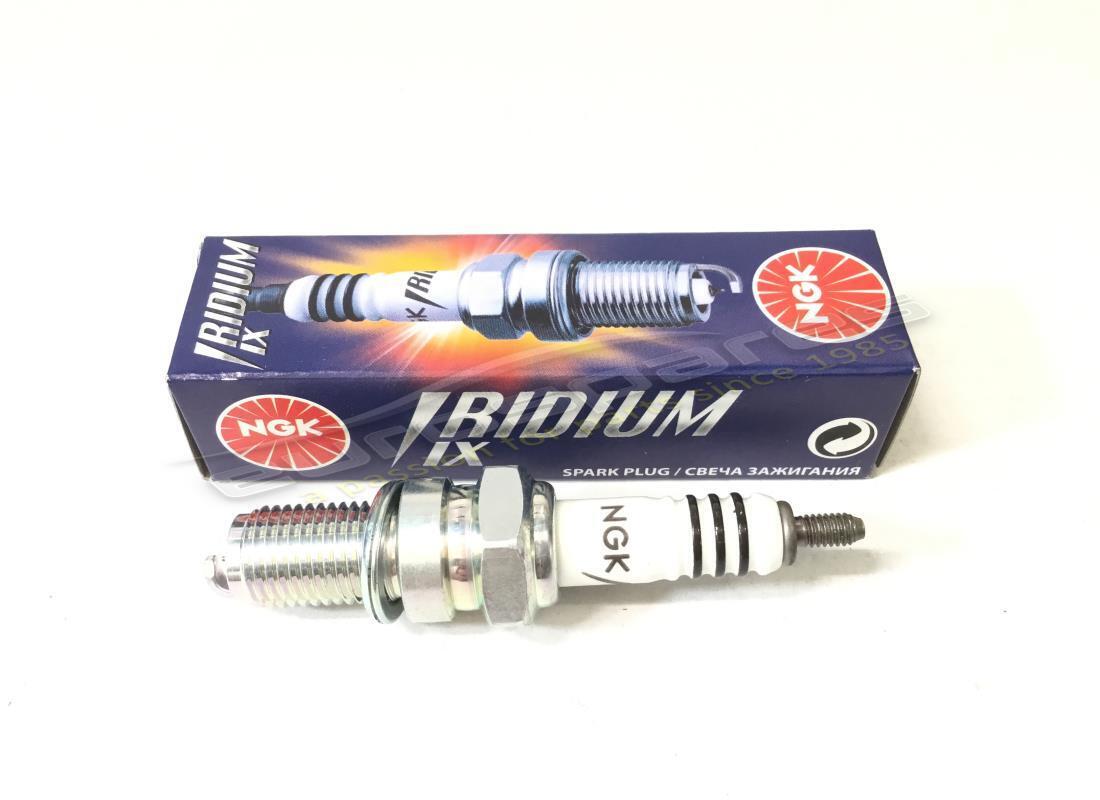

SPARK PLUG
(NGK Iridium)
from
£14.95
from
£14.95
This part replaces part number 150180
#
036
MPN:
130975/A

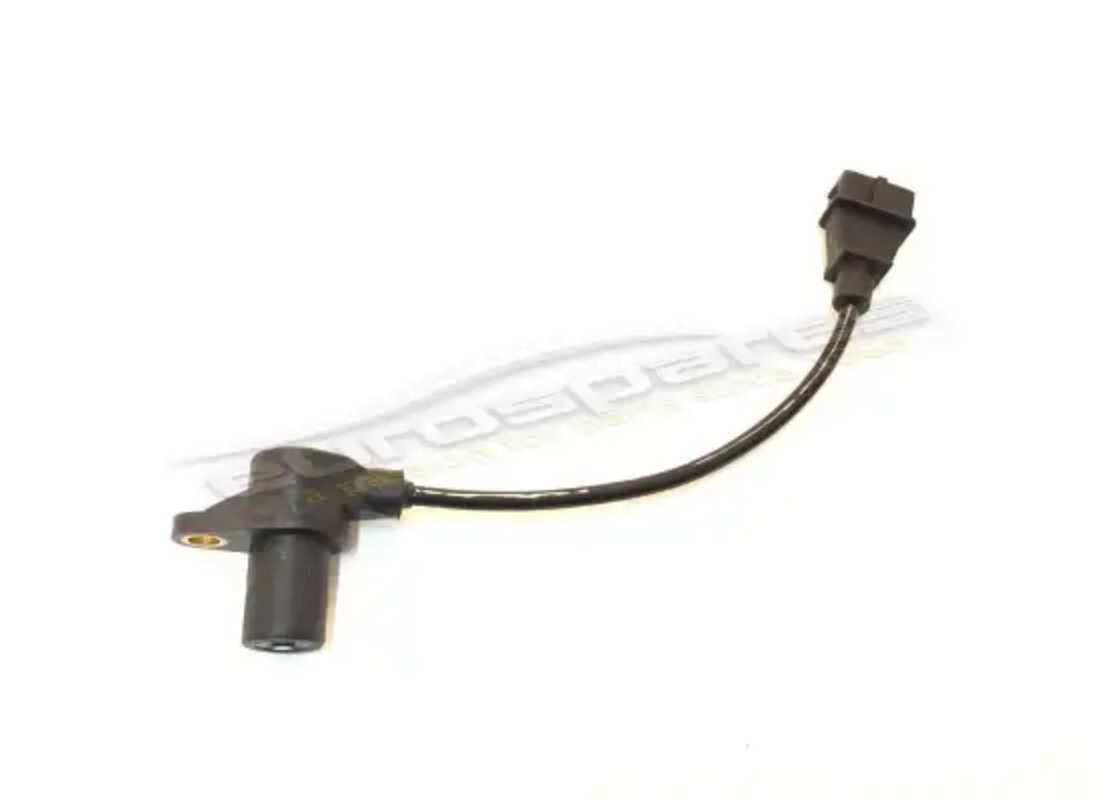

ANGULAR SPEED SENSOR
Alternative use - 130975/A
from
£71.18
from
£71.18
This part replaces part number 130975
#
037
MPN:
139244
SUPPORT
from
£141.49
from
£141.49
#
038
MPN:
14305121
SCREW
from
£0.47
from
£0.47
#
039
MPN:
12601274
WASHER
from
£0.53
from
£0.53
This part replaces part number 12601221
- and 5 more. Click to view details
#
040
MPN:
11199279
WASHER
from
£0.71
from
£0.71
#
041
MPN:
15896470
NUT
(minimum order quantity = 20)
from
£0.77
from
£0.77
This part replaces part number 15896415 which we have in stock
- and 1 more. Click to view details
#
042
MPN:
139465
BELLOWS
from
£127.25
from
£127.25
#
043
MPN:
140621
SHIM FOR SENSORS
Possible mounting
from
£9.08
from
£9.08
#
044
MPN:
145550
BRACKET
from
£6.37
from
£6.37
#
045
MPN:
129544
SPRING
from
£1.31
from
£1.31
#
046
MPN:
12574211
NUT
from
£0.71
from
£0.71
#
047
MPN:
12648201
WASHER
from
£1.39
from
£1.39
#
048
MPN:
140190
PLUG
Valid for cars with catalyst
from
£11.86
from
£11.86
#
048
MPN:
144092
PLUG
Not for cars with catalyst
from
£7.07
from
£7.07
This part replaces part number 140189
#
049
MPN:
149441
CABLE AND ELECTROMAGNETIC SWITCH ASSEMBLY
Valid till ass. Nr. 7150
from
£228.73
from
£228.73
#
050
MPN:
150607
RELAY
from
£40.39
from
£40.39
#
051
MPN:
129544
SPRING
from
£1.29
from
£1.29
#
052
MPN:
144763
INJECTOR RETAINING SPRING
from
£1.84
from
£1.84
#
053
MPN:
138954
INJECTION SYSTEM ELECTROMAGNETIC SWITCH
from
£43.75
from
£43.75
#
054
MPN:
125240
VALVE 7,5A
from
£0.47
from
£0.47
This part replaces part number 11054890
- and 1 more. Click to view details
