aston martin v12 vantage (2011) clutch system, rhd parts diagram

080000-R2 - Clutch System, RHD

Aston Martin V12 Vantage (2011) Clutch System, RHD Parts Diagram

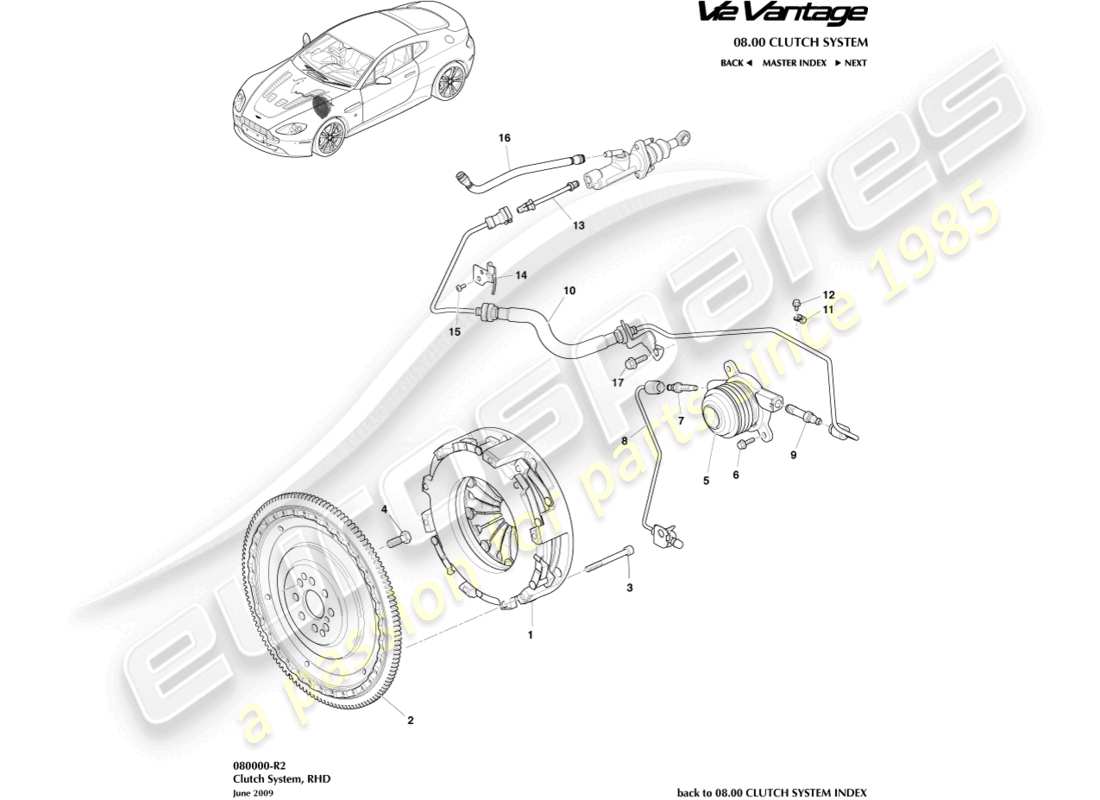

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# -
MPN: 4G43-11-11200
CLUTCH KIT
Includes items 1, 2, 3, 4 and 5 (Calibration required when changing to Valeo clutch)
from £2,825.02
from £2,825.02
This part replaces part number 4G43-7540-AB
CLUTCH KIT Genuine Aston Martin - New (to order)
# 1
MPN: AD23-7540-AB
CLUTCH, TWIN PLATE
Prior to VIN S00573 this part will also require items 2,3 and 5 unless already fitted
from £1,874.10
from £1,874.10
CLUTCH, TWIN PLATE Genuine Aston Martin - New (to order)
# 2
MPN: 8D33-6375-CA
FLYWHEEL, SINGLE MASS
Prior to VIN S00573 this part will also require items 1,3 and 5 unless already fitted
from £1,104.65
from £1,104.65
FLYWHEEL, SINGLE MASS Genuine Aston Martin - New (to order)
# 3
MPN: AD23-CD60-AA
SCREW
Clutch to Flywheel
from £2.32
from £2.32
BOLT M6.0 X 1.0 Genuine Aston Martin - New (to order)
# 4
MPN: 697786-PK
BOLT, M10 X 30 HEX HD LK
Discard when removed and install new bolts
Supersession
Supersession
Genuine Aston Martin (no longer available to order)
# 5
MPN: AD23-7A564-AA
CYLINDER, SLAVE, CLUTCH
Prior to VIN S00573 this part will also require items 1,2 and 3 unless already fitted
from £871.93
from £871.93
CYLINDER, SLAVE, CLUTCH Genuine Aston Martin - New (to order)
# 6
MPN: 703203
SCREW, FL, M6 X 20 CSC TO T/T HSG
from £0.47
from £0.47
SCREW M6X20 HEX FLNG Genuine Aston Martin - New (to order)
LOWER RADIATOR SUPPORT BOLT Genuine Ferrari Part - New (to order)
# 7
MPN: 4G43-7K640-AB
CONNECTOR ASSY, PRESSURE
from £14.76
from £14.76
CONNECTOR ASSEMBLY, PRESSURE Genuine Aston Martin - New (to order)
# 8
MPN: 4G43-7H552-AB
HOSE ASSY, CLUTCH BLEED
from £76.24
from £76.24
PIPE, BLEEDER Genuine Aston Martin - New (to order)
# 9
MPN: 4G43-7K640-BB
CONNECTOR ASSY, BLEED
from £14.76
from £14.76
STUTZEN BLEED Genuine Aston Martin - New (to order)
# 10
MPN: 4G43-7608-AB
TUBE ASSY
Mstr Cylinder to Slave Cylinder
from £105.93
from £105.93
HOS ASY-CL MSTR CYLINDER Genuine Aston Martin - New (to order)
# 11
MPN: 699632
P CLIP 6MM
Clutch pipe to torque tube
from £0.67
from £0.67
'P' CLIP Genuine Aston Martin - New (to order)
# 12
MPN: 703206
SCREW, FLG, M5 X 8, P CLIP ATTCH
from £0.96
from £0.96
SCREW-M5 X 8 HEX FLANGE Genuine Aston Martin - New (to order)
# 13
MPN: 4G43-7608-CB
TUBE ASSY, UPPER
Mstr Cylinder to Slave Cylinder
from £18.73
from £18.73
TUBE ASSEMBLY, UPPER Genuine Aston Martin - New (to order)
# 14
MPN: AD23-R7N630-DA
BRACKET
from £99.72
from £99.72
BRACKET Genuine Aston Martin - New (to order)
# 15
MPN: 701158
SCREW M6 X 10 PAN HD LOBE D
from £0.77
from £0.77
SCREW M6X10 TORX BLK Genuine Aston Martin - New (to order)
# 16
MPN: 4G43-41360-BA
HOSE ASSY
Reservoir to Mstr Cylinder
from £45.58
from £45.58
RES TO M/CYL Genuine Aston Martin - New (to order)
# 17
MPN: 703121
SCREW M8X20 HEX FLG HD
from £0.47
from £0.47
SCREW M8X20 HEX FLANGE Genuine Aston Martin - New (to order)
