aston martin v8 vantage (2009) transaxle, manual, 6 spd parts diagram

070300-R1 - Transaxle, Manual, 6 spd

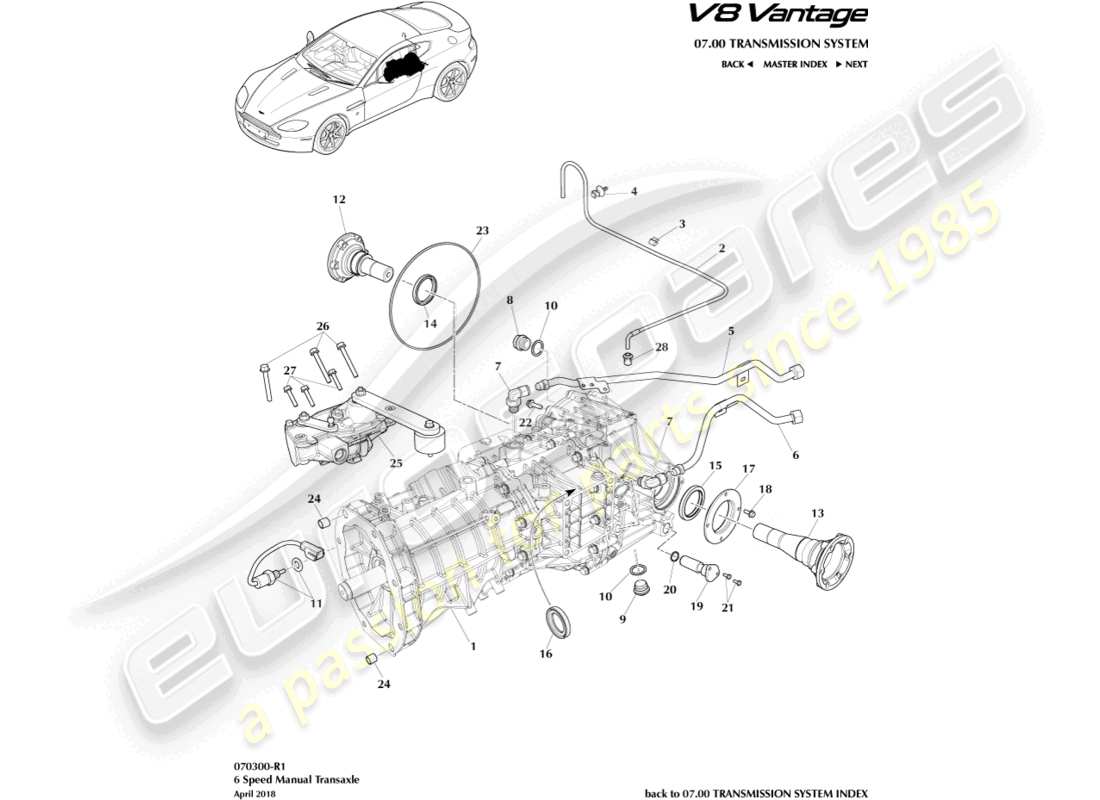

Aston Martin V8 Vantage (2009) Transaxle, Manual, 6 spd Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 1
MPN: 6G33-7002-AJ
TRANSMISSION ASSY, MANUAL
from £5,750.00
from £5,750.00
TRANSMISSION ASSEMBLY, MANUAL Genuine Aston Martin - New (to order)

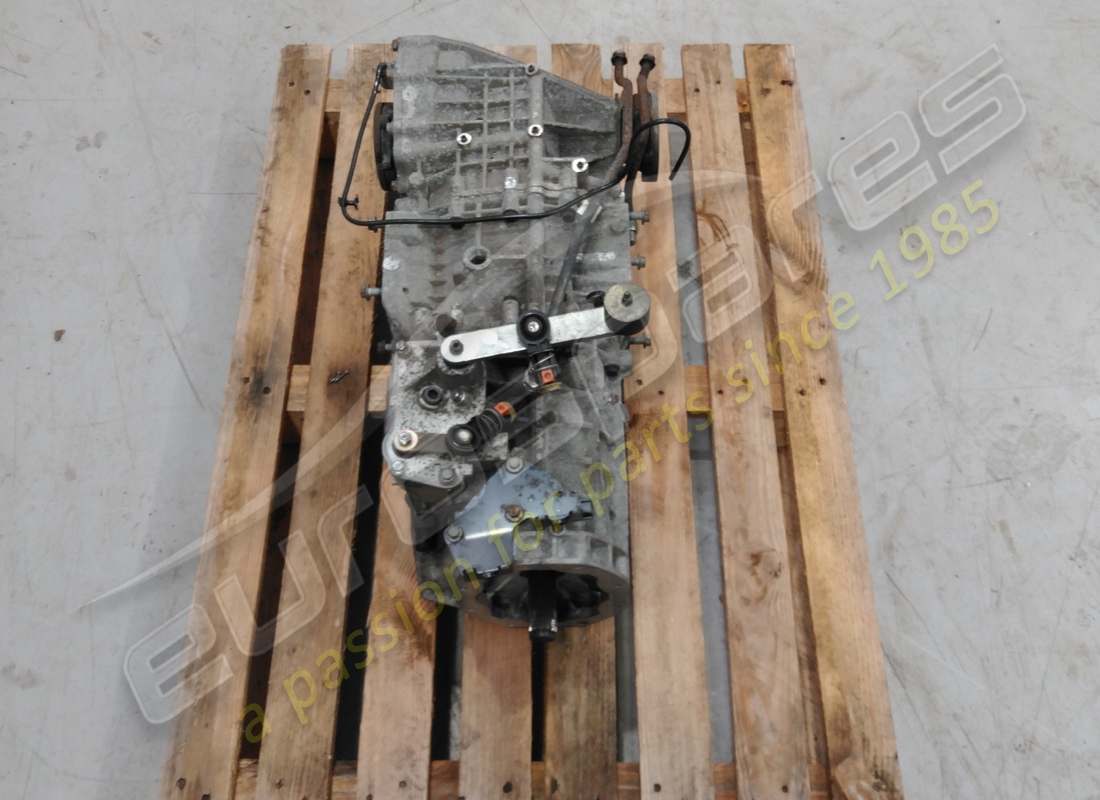

TRANSMISSION ASSEMBLY, MANUAL Genuine Aston Martin - Used In stock
Miles 84619
# -
-
MANUAL TRANSMISSION, REMANUFACTURED
# -
-
GREASE, MANUAL TRANSMISSION
# -
-
PINION AND BEVEL GEAR SET
# -
-
OIL, TRANSAXLE
# 2
MPN: 6G33-7A245-AA
PIPE ASSY, TRANSAXLE BREATHER,MANUAL
from £39.85
from £39.85
PIPEASY-TRANS BREATH Genuine Aston Martin - New (to order)
# 3
MPN: 702284
CLIP, EDGE
from £1.21
from £1.21
CLIP, EDGE Genuine Aston Martin - New (to order)
# 4
MPN: 701575
CLIP, EDGE
from £0.47
from £0.47
CLIP 6.0X6.5X0.8-6 Genuine Aston Martin - New (to order)
# 5
MPN: 6G33-7F113-AB
TUBE ASSY, TRANS OIL INLET
Up To VIN C03882
from £26.88
from £26.88
TUBE ASSEMBLY, TRANS OIL INLET Genuine Aston Martin - New (to order)
# 5
MPN: 6G33-7F113-CA
TUBE ASSY, TRANS OIL INLET
FROM VIN C03883
from £119.44
from £119.44
TUBE ASSEMBLY, TRANS OIL INLET Genuine Aston Martin - New (to order)
# 6
MPN: 6G33-7F112-AB
TUBE ASSY, TRANS OIL OUTLET
Up To VIN C03882
TUBE ASSEMBLY, TRANS OIL OUTLET Genuine Aston Martin - New (to order)
# 6
MPN: 6G33-7F112-CA
TUBE ASSY, TRANS OIL OUTLET
FROM VIN C03883
from £130.32
from £130.32
TUBE ASSEMBLY, TRANS OIL OUTLET Genuine Aston Martin - New (to order)
# 7
MPN: 6G33-7E319-AA
ADAPTOR 90, TRANS COOLING PIPE
from £1,027.51
from £1,027.51
ADAPTOR 90, TRANS COOLING PIPE Genuine Aston Martin - New (to order)
# 8
MPN: 4G43-27-10493
PLUG, OIL FILLER/LEVEL
from £8.56
from £8.56
PLUG - OIL LEVEL M22 Genuine Aston Martin - New (to order)
# 9
MPN: 4G43-27-10244
PLUG, OIL DRAIN, MAGNETIC
from £31.38
from £31.38
PLUG, OIL DRAIN, MAGNETIC Genuine Aston Martin - New (to order)
# 10
MPN: 4G43-27-10245
WASHER, OIL FILLER/DRAIN PLUGS
from £2.67
from £2.67
SEAL, FLAT 22X28X1.5 Genuine Aston Martin - New (to order)
# 11
MPN: 6G33-8F875-AA
KIT, SWITCH, REVERSE LIGHT
from £166.87
from £166.87
SWITCH, REVERSE LIGHT Genuine Aston Martin - New (to order)
# 12
MPN: 4G43-27-10601
FLANGE, DIFF OUTPUT, RH
from £533.88
from £533.88
O PUT SHAFT-RHT SIDE Genuine Aston Martin - New (to order)
# 13
MPN: 4G43-27-10600
FLANGE, DIFF OUTPUT, LH
from £731.13
from £731.13
O'PUT SHAFT-LFT SIDE Genuine Aston Martin - New (to order)
# 14
MPN: 4G43-27-10604
SEAL, OUTPUT SHAFT, RH
from £45.13
from £45.13
SEAL-DIFFOUTPUT SHFT Genuine Aston Martin - New (to order)
# 15
MPN: 4G43-27-10483
SEAL, OUTPUT SHAFT, LH
from £45.58
from £45.58
SEAL-DIFFOUTPUT-LEFT Genuine Aston Martin - New (to order)
# 16
MPN: 6G33-7C081-AA
SEAL, INPUT SHAFT
from £26.38
from £26.38
SEAL, INPUT SHAFT Genuine Aston Martin - New (to order)
# 17
MPN: 4G43-27-10482
RETAINING PLATE, DIFF SEAL, LH
from £7.38
from £7.38
O RING 2.62 X 75.87 Genuine Aston Martin - New (to order)
# 18
MPN: 6G33-E606403-AA
BOLT, FLG, M6X16
from £0.55
from £0.55
BOLT, FLANGE , M6X16 Genuine Aston Martin - New (to order)
# 19
MPN: 4G43-27-10490
OIL FILTER, TRANSMISSION
from £122.50
from £122.50
OIL FILTER Genuine Aston Martin - New (to order)
# 20
MPN: 4G43-27-10491
O RING, TRANSMISSION OIL FILTER
from £2.71
from £2.71
O RING, 2.62X20.63 Genuine Aston Martin - New In stock
# 21
MPN: 4G43-27-10492
SCREW, M5X12 OIL FILTER RETAINING
from £1.90
from £1.90
SCREW M5 X 12 Genuine Aston Martin - New (to order)
# 22
MPN: 6G33-806156-AA
BOLT, FLG, M8X30 DIFFERENTIAL COVER
BOLT, FLANGE , M8X30 DIFFERENTIAL COVER Genuine Aston Martin - New (to order)
# 23
MPN: 4G43-27-10500
O RING, DIFF COVER
from £49.84
from £49.84
O RING-3.53 X 228.19 Genuine Aston Martin - New (to order)
# 24
MPN: 6G33-36298-AA
RING DOWEL
from £5.50
from £5.50
RING DOWEL Genuine Aston Martin - New (to order)
# 25
MPN: 6G33-7N372-AB
BELLCRANK ASSY, TRANSAXLE
from £6,594.81
from £6,594.81
BELLCRANK ASSEMBLY, TRANSAXLE Genuine Aston Martin - New (to order)
# 26
MPN: 702822
BOLT, FLG, M6X50 BELL CRANK ATTACH
from £3.32
from £3.32
BOLT M6 X 50 Genuine Aston Martin - New (to order)
# 27
MPN: 6G33-106205-AA
BOLT, FLG, M6X30 BELL CRANK ATTACH
BOLT, FLANGE , M6X30 BELL CRANK ATTACH Genuine Aston Martin - New (to order)
# 28
MPN: 6G33-7L000-AA
ADAPTOR, TRANS BREATHER
ADAPTOR, TRANS BREATHER Genuine Aston Martin - New (to order)
